Oh, well in that case you have my sincere apologies for suggesting it.
-
Tired of adverts on RWI? - Subscribe by clicking HERE and PMing Trailboss for instructions and they will magically go away!
Noob’s new GMT bezels are poorly designed
- Thread starter KJ2020
- Start date
Oh, well in that case you have my sincere apologies for suggesting it.
- 9/7/12
- 23,729
- 20,859
- 113
I don't know, I thought this slightly crappy system was limited to lower end GMTs - sub $250 type watches. Apparently not.
I noticed this on my BLRO. I don't use or move the bezels but they are not well made on this model.
BTW, as a vaguely related aside... I just remembered there was a guy who was briefly around last year, who got into an argument with a TD (and then with everyone else on the forums) because the bezel of his expensive new GMT fell off In transit, and he couldn’t get it back on. At the time I think some people said he was lying, as this just wouldn't happen to a brand new rep. But anyway, his attitude was awful (he kept threatening a chargeback against the TD) and so his complaints about the bezel problem largely got overlooked because of that... and in the end he got banned right across the fora for being such an obnoxious d*ck.
And the moral of that "great story bro" is... don't be an obnoxious d*ck, kids.
And the moral of that "great story bro" is... don't be an obnoxious d*ck, kids.
- 12/3/18
- 34,659
- 66,748
- 113
The bezel design on the new Noob Pepsi is unlike any other rep or gen bezel I've seen. As I mentioned in the OP, I would bet that Noob is also using these bezels on their new 126710 BLNR and their new 116710 LN. And I wouldn't be surprised if they are also using them on the new V10 Subs. Anything to save money while charging more to the customer.
The issue with these new bezels is the hytrel ring is not locked in place in a bezel groove. Continued rotational force on it pinches it and coupled with up and down and lateral forces exerted on the bezel, it is much more easily dislodged from its seat as it has nothing on top to restrain it from doing so.
The other really bad aspect of these more frequent failures is the unavailability of any usable replacement hytrel ring - rep, gen or aftermarket. Go fish, lol.
Previous Noob hytrel ring happy in it's groove

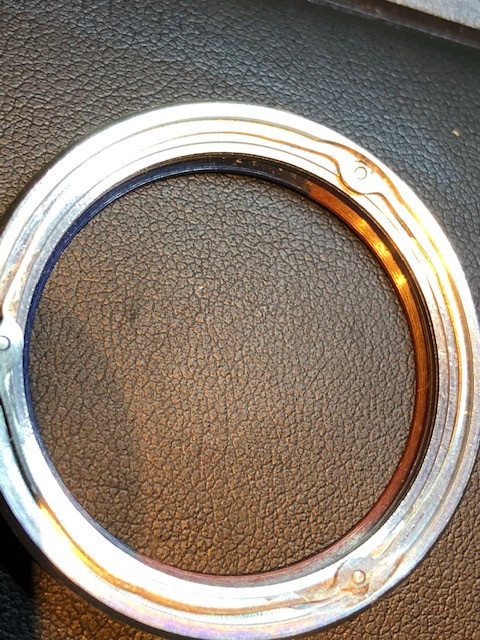

New Noob hytrel ring naked to the world
The issue with these new bezels is the hytrel ring is not locked in place in a bezel groove. Continued rotational force on it pinches it and coupled with up and down and lateral forces exerted on the bezel, it is much more easily dislodged from its seat as it has nothing on top to restrain it from doing so.
The other really bad aspect of these more frequent failures is the unavailability of any usable replacement hytrel ring - rep, gen or aftermarket. Go fish, lol.
Previous Noob hytrel ring happy in it's groove
New Noob hytrel ring naked to the world
Last edited:
No reason to apologize mate. i was passive/aggressive/ly pointing out to the mods/staff that there is more than 50% tacked threads just in this rolex sub forum. I my brain is hardwired to scroll passed tacked threads.
Anyways I am off topic.
Cheers to OP for passing on great information!
- 28/2/17
- 2,382
- 1,951
- 113
Mate you have helped me out on many occasions, if you can provide me with some dimensions ill have some in the post to you straight away. Watchmaking isn’t my strong point but i can machine stuff all day long.
- 12/3/18
- 34,659
- 66,748
- 113
I really appreciate that bro and I had that in mind straight away but I thought I would try to figure something out that others could do with a trip to the sporting goods department of Walmart. I added another layer of protection to the mod by placing a 3M tape ring over the outer edge of the fishline. That stuff is way sticky and strong so that should aid in keeping the line in place. The tape is thin and a second ring is needed to bring the insert to flush. Rotation is not hindered as long as the inner side of the line is free to move within the retaining ring groove. Forcing movement to occur on the inner side is beneficial I think, because there is a physical barrier at the top on that side.
- 28/2/17
- 2,382
- 1,951
- 113
- 12/3/18
- 34,659
- 66,748
- 113
It would be worth trying bro. I think the retaining ring would have to be changed too. I think the ARF/VRF groove (even older Noob groove) would not mate with the Noob Pepsi retaining ring lip and still let the bezel sit at a proper height relative to the crystal. But it could just be that the Noob Pepsi bezel's missing upper half of its groove was simply omitted from the mold to save material. In any event you would likely also need a different hytrel ring, as you know the new Noob gasket has a unique stairstep profile cut that wouldn't likely be compatible with a full groove bezel.
BTW the "top step" goes in face down, into the bezel detent.
JDM180
- 12/3/18
- 34,659
- 66,748
- 113
Haha, just trying to counter some of their extreme shortcuts bro. It is truly amazing what they can make for crazy low prices. This beauty just arrived - $288. Bullet proof 2836 ICHS. Just wow. Keep 'em comin while this Bonanza train rolls on.
Having a problem with the bazel that won't sit at all into the case. Can take it off with wind hehe.
Any hints of how to get this to fit correct?
Any hints of how to get this to fit correct?
- 12/3/18
- 34,659
- 66,748
- 113
Having a problem with the bazel that won't sit at all into the case. Can take it off with wind hehe.
Any hints of how to get this to fit correct?
You need to remove the insert from the bezel. Then remove the gasket from the bezel, seat the bezel on the case and see if the gasket is reusable. Look at my first posts in this thread.
Thanx for your answer, I struggle a little understanding of your pictures. Almost shore I do it correct, but wont sit. Hear a click but just keep falling off. Can you try to explain how to get it back on step by step?
I think its the 3 pin click ring that does the problem.
I think its the 3 pin click ring that does the problem.
The the rubber gasket is there, I see that. What is the mechanism that holds the bezel together? I used the watch and it just fell off.
