I still have access to the messages sent by other members and I'm slowly answering all the questions asked.

The "do not trade with me" badge prevents me to create new PMs but it doesn't change much because I only answer the questions and requests I receive and NEVER send unsolicited offfers.
My understanding was he was trying to start a new message, and I thought the do not trade banner prevented new messages from being received.


eBoy

⚜️ RWI NMA Chief Bracelet Link Remover ⛓️‍💥🔗🪛🔧
Section Moderator
Certified
2/4/21
15,130
25,590
113
A place of darkness and light a.k.a. EU
I just checked—he's in the middle of a conversation. Seems to be making progress on restoring order and issuing refunds. 💪👍

Honestly, I'm just relieved I'm not a watchmaker. Tripdog's discovery of SOVED-24 scared the absolute hell out of me—I sold every last watchmaking tool I owned just to be safe. ☹️😣😵😨😧😱😦



manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113
I just checked—he's in the middle of a conversation. Seems to be making progress on restoring order and issuing refunds. 💪👍

Honestly, I'm just relieved I'm not a watchmaker. Tripdog's discovery of SOVED-24 scared the absolute hell out of me—I sold every last watchmaking tool I owned just to be safe. ☹️😣😵😨😧😱😦

As I already said I fully understand that some members were concerned because of the time they waited and my lack of communication ... I explained the reasons ... and I accepted without arguing the "do not trade with me" badge.
However ... I'd like to make some things clear about what I do/did or don't/didn't, parts and/or refunds...

Custom dials :
1 - do/did I receive request for custom dials ?.. YES
2 - do/did I accept to make custom dials on request ?.. YES
3 - do/did I send unsollicited offers ?.. NO
4 - do/did I ask for even a cent before my work is done and accepted ?.. NO
5 - do/did I work "at my own risk" ?.. YES
6 - do/did I harass anybody changing mind of refusing a dial ?.. NO
I do my best not to make people waiting for to long before they receive what they're waiting for but sometimes shit happens ... and shit fell on me by tons during the last 2 years.
And as long as I don't ask for any money upfront and people are always free to say "I don't want to wait anymore" or "I changed my mind" I think I guess I have the right to work at my own pace.

Watchwork :
1 - handsets ...
Sometimes people send me a handset (to be relumed while luming a custom dial) ... I always offer to send some of the lume mix I use for the dial so that they can relume the handset locally but it's not always possible.
Both options are for free.
2 - cases :
Sometimes people send me a case ir a complete watch so that I can swap the original dial with the custom dial, modify the case, engrave the case, make a custom insert, etc ...
I try to avoid those complete/partial builds because it's time consuming and not my favorite work.
But for some specific models of dials ... such as a BlancPain BUND 3H or a vintage Omega 600 PloProf ... it seems people have difficulties to find a modder who would do all that.
In this situation I receive parts or complete watches BUT
- I never ask for any money upfront
- if anything goes wrong while modding the watch ... it never happened until now ... the risk is on me and I will refund the price people paid for the base watch

Refunds / Parts returned :
I asked the few who were waiting AND had sent parts/watches if they wanted me to send everything back, or a refund for the parts/watches if I already had started to modify it.
Just a few said yes and most of them prefered to wait.
Those who asked have received their parts/watches back or a refund.
Those who decided to wait a bit more have received their finished watch (80%) or will receive it soon.

That said ... my next posts will be to show some pics of what I've finished/done/started during the last few weeks.


manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113
I took a course in electronic soldering.
It may seem strange to talk about this on a watch forum, but I was able to learn precision soldering.
With practice I should be able to solder dial feet for all sorts of different calibers :cool:

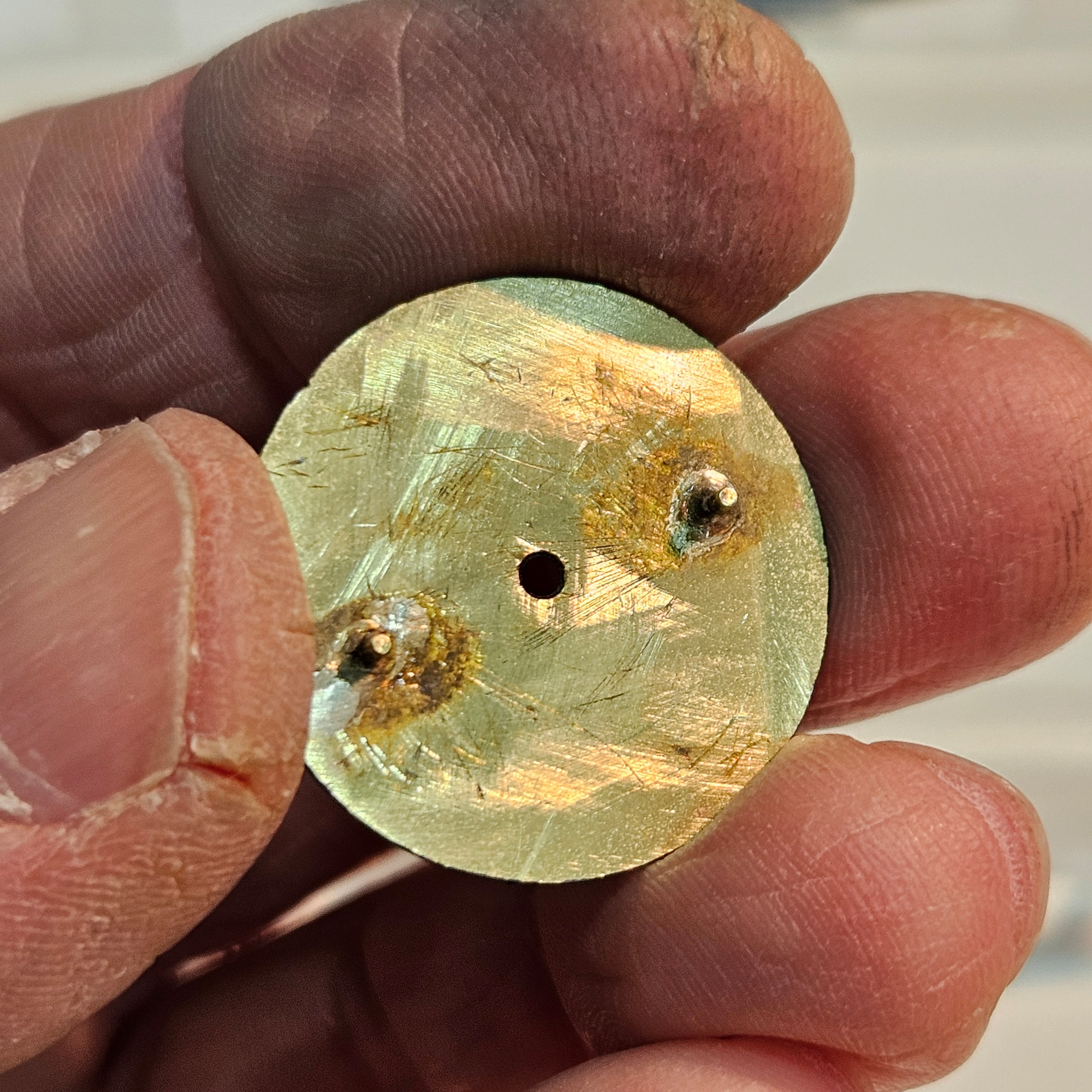

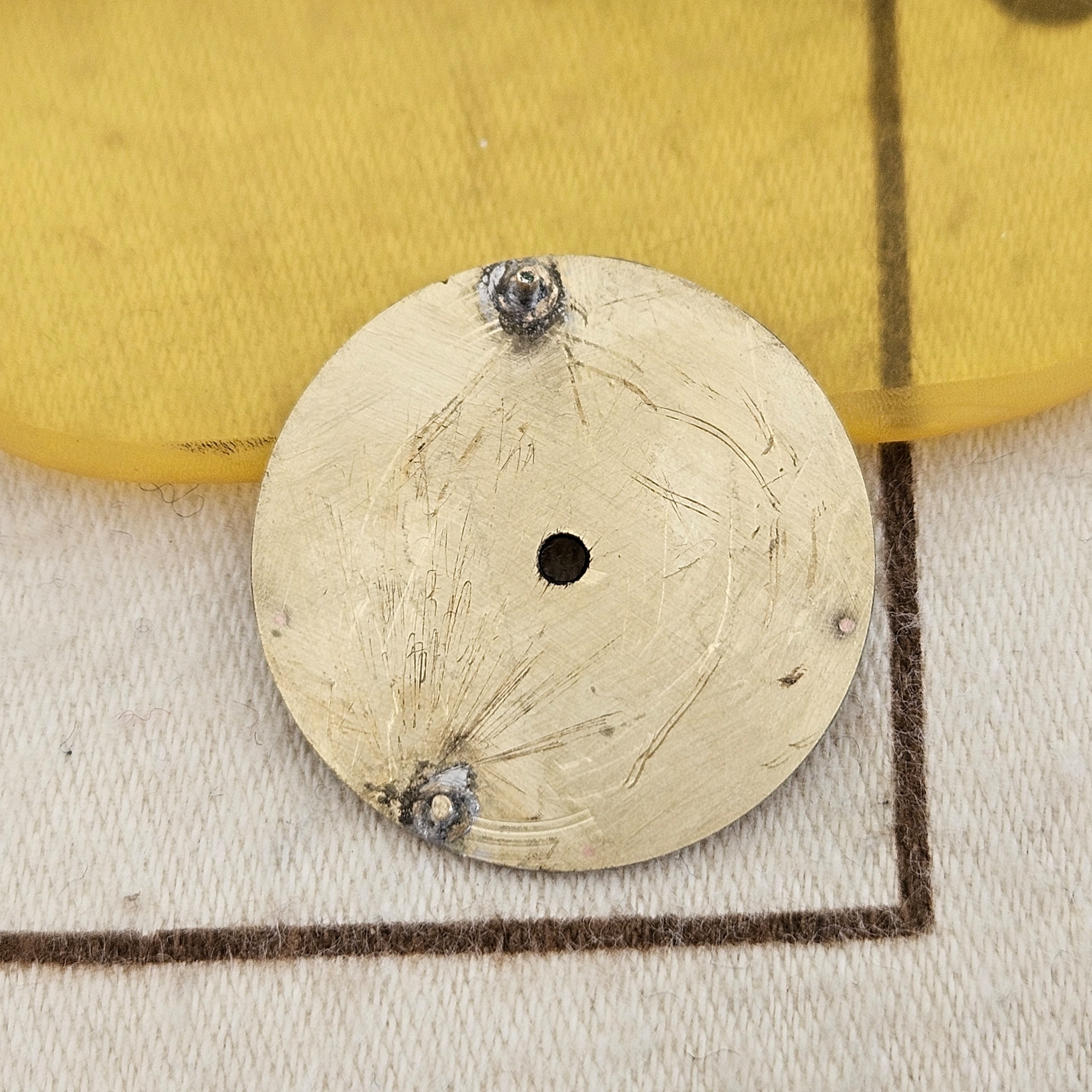

I lightly mill the back of the dial where the feet should rest, so that everything is flush-deck.
Then I braze using silver paste and lightly sand.
It's pretty quickly done and much stronger than two-component glue.
For the moment the results are far from perfect but I'm making good progress.

I may try with gold solder paste later when I'm trained enough :)

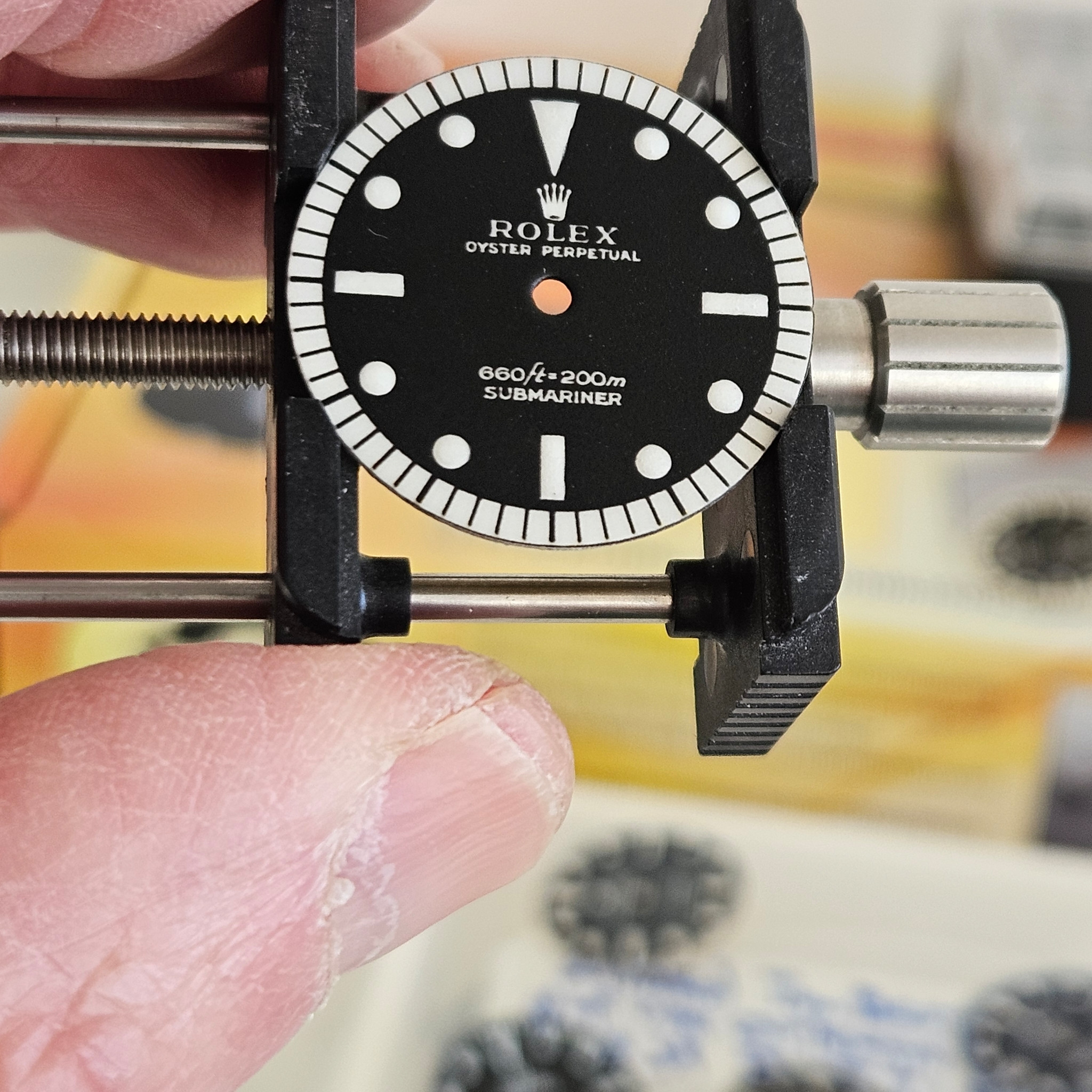

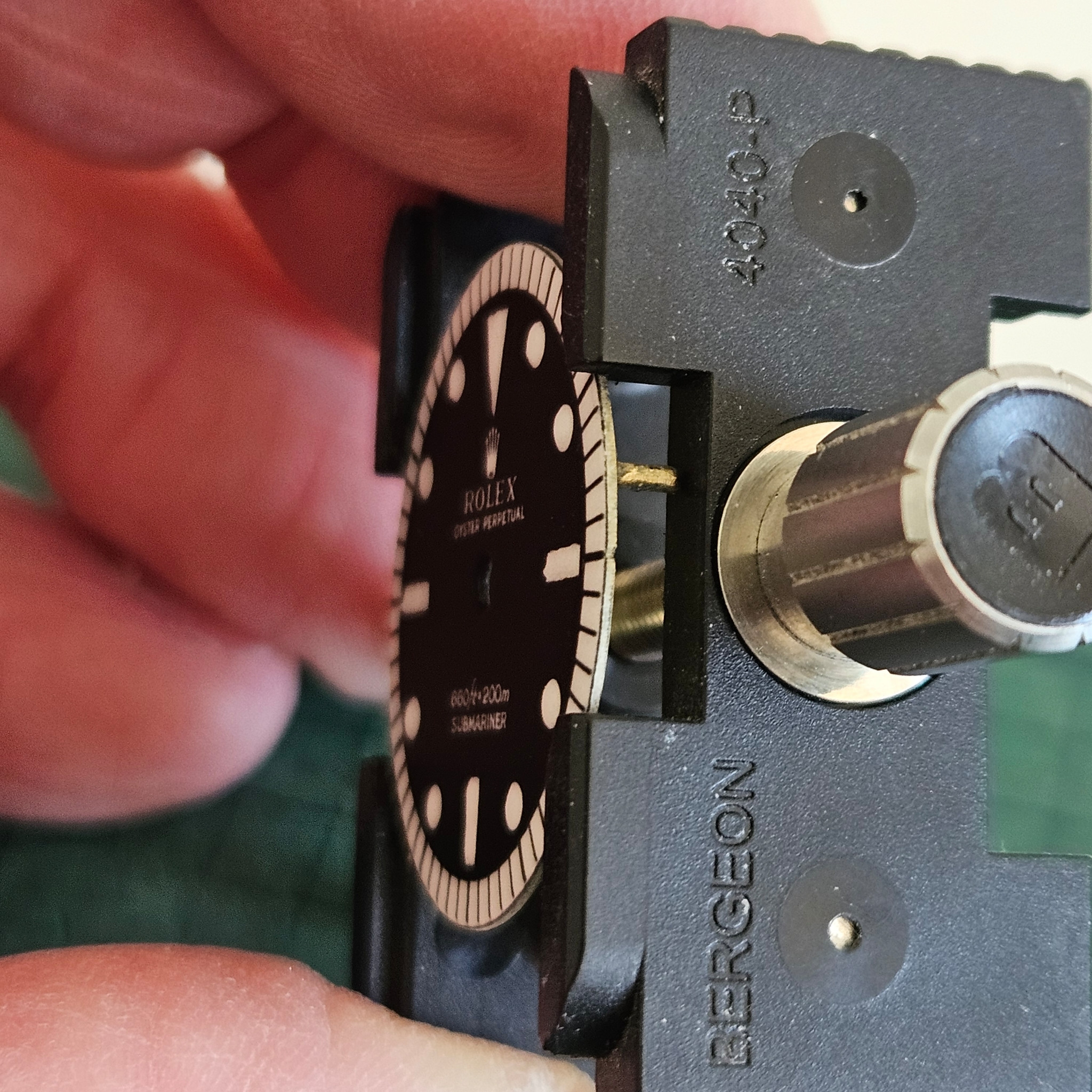

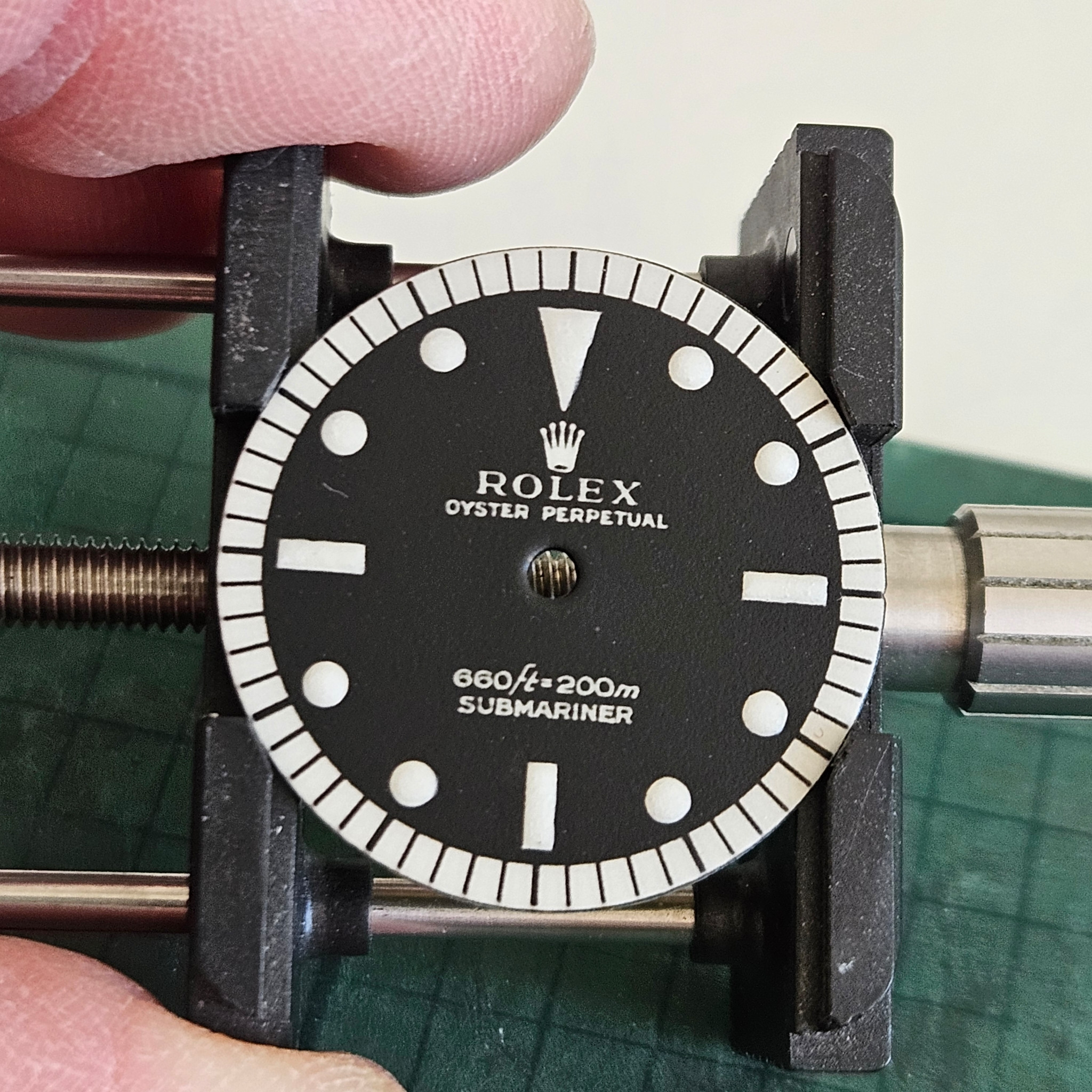

26mm dial plate for Rolex 5513 - dial feet for a movement 3135


26mm dial plate for Tudor 7928 - dial feet for a Tudor 390 movement


manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113

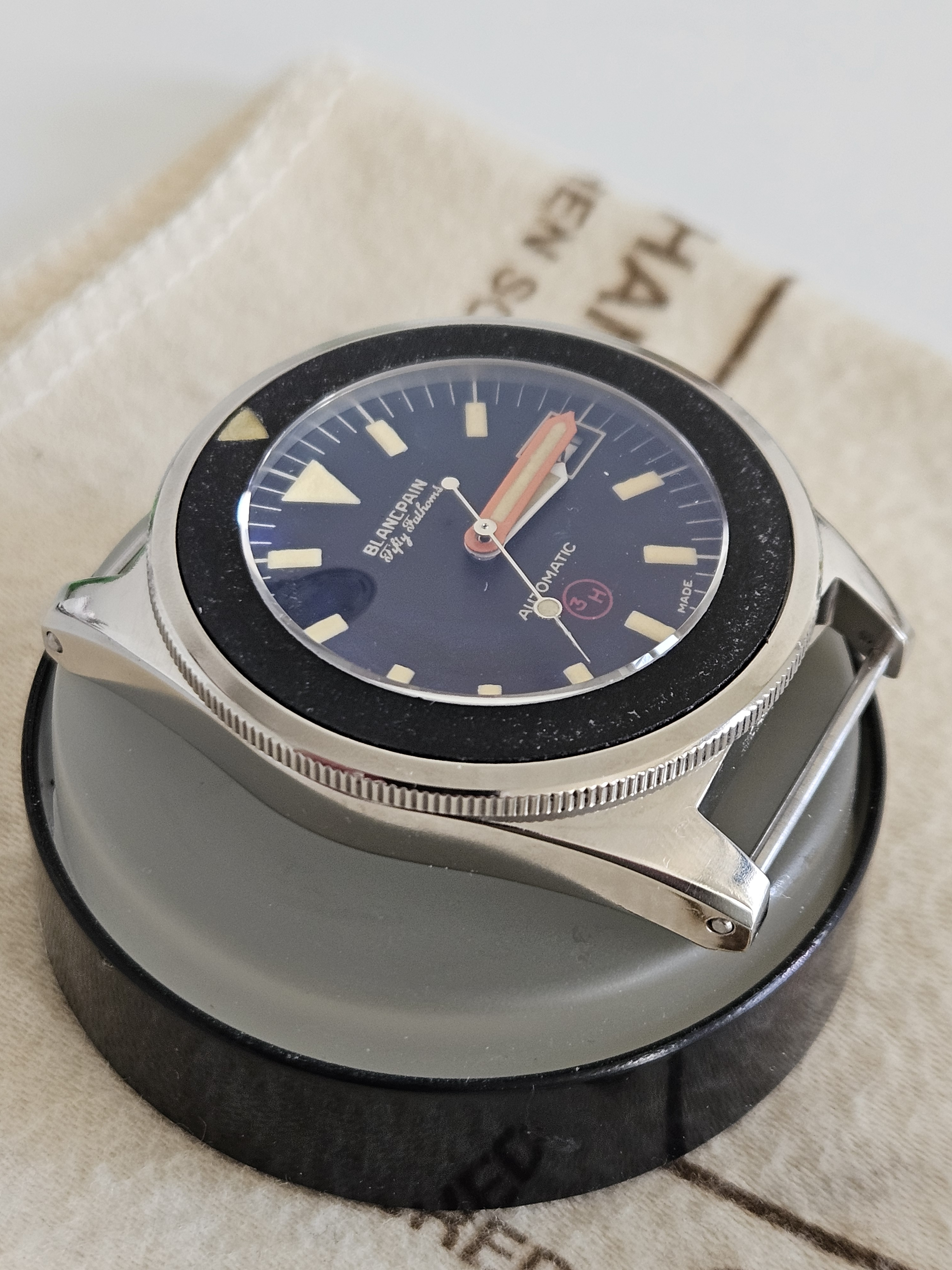

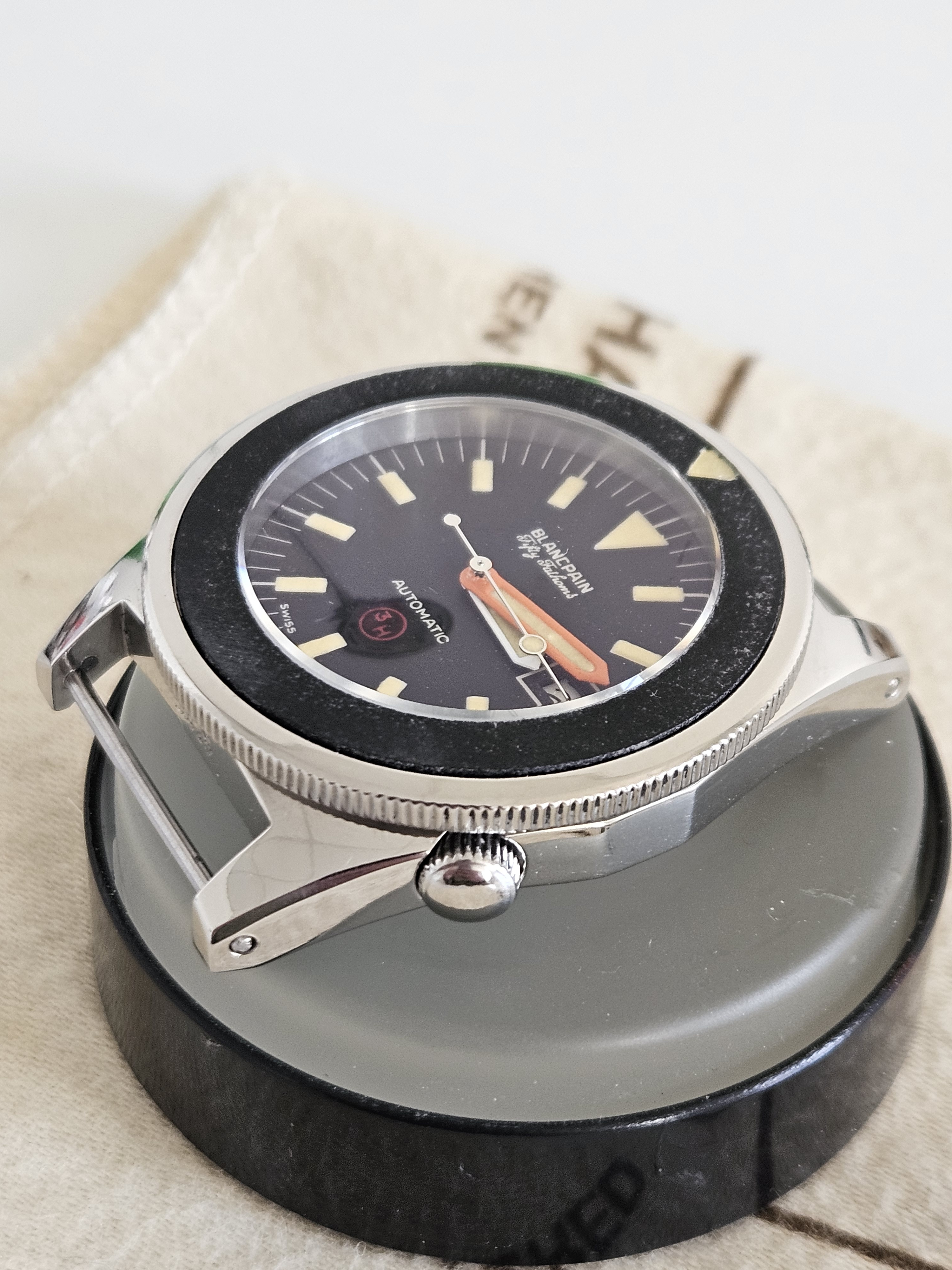

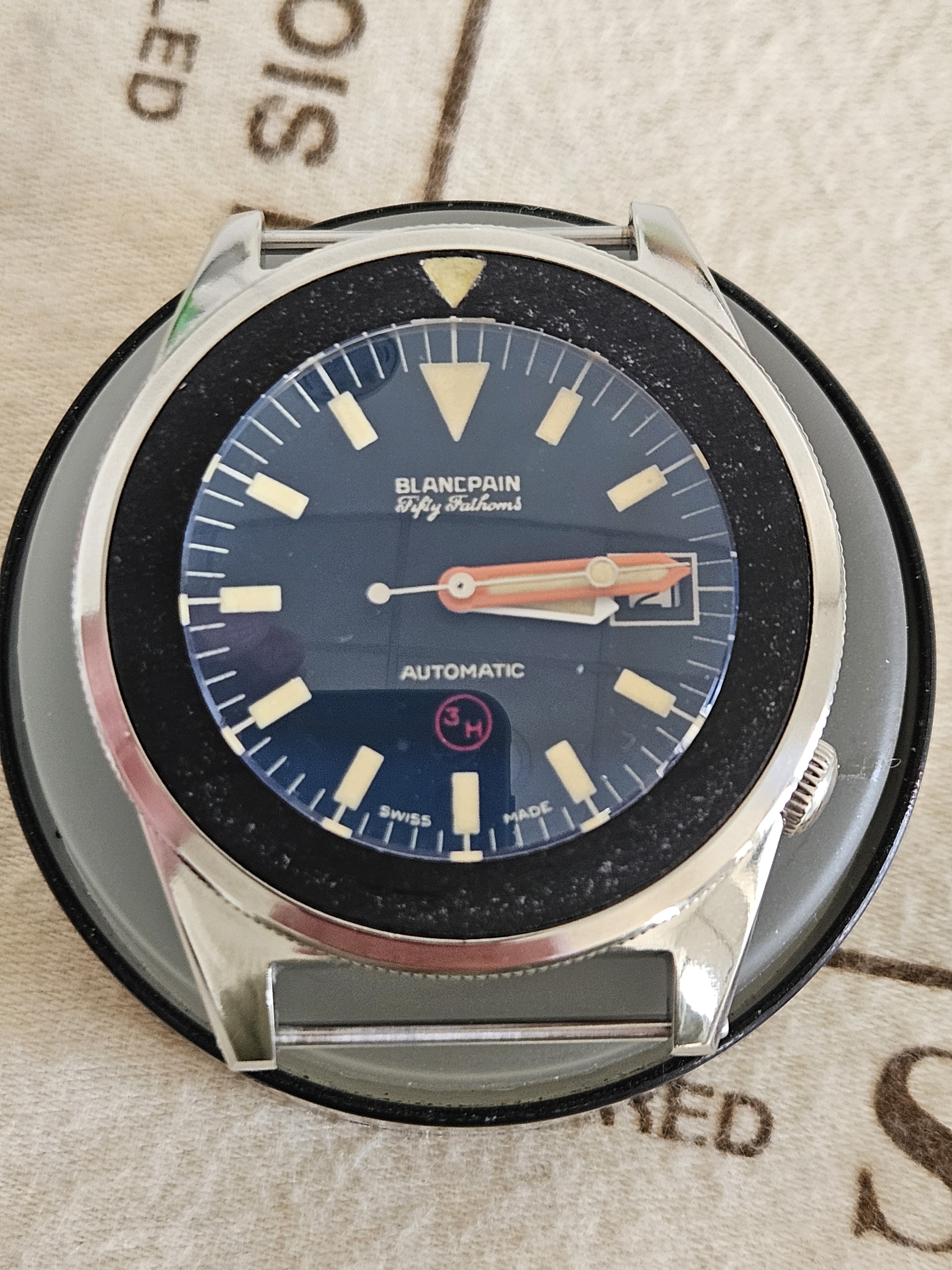

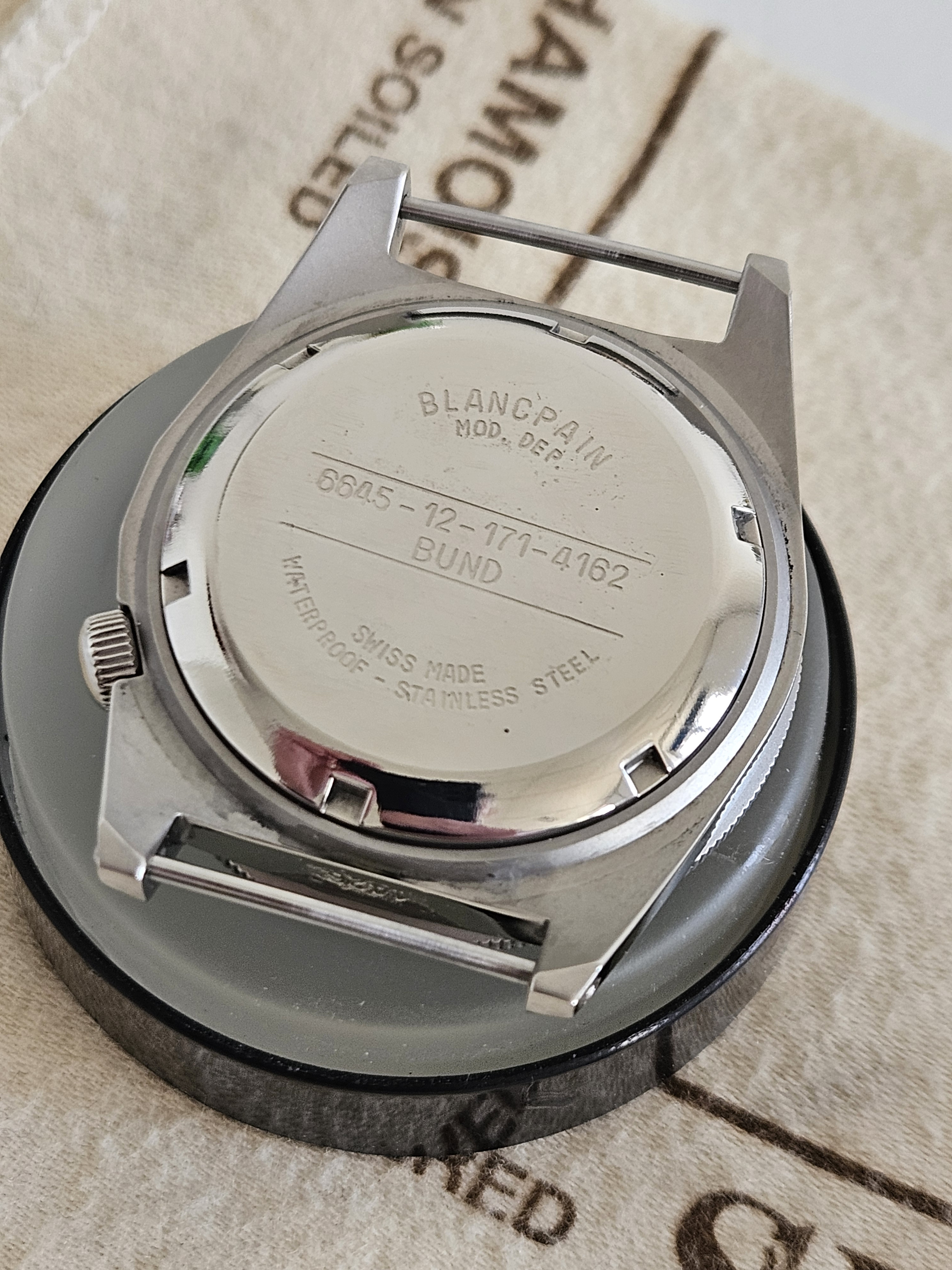

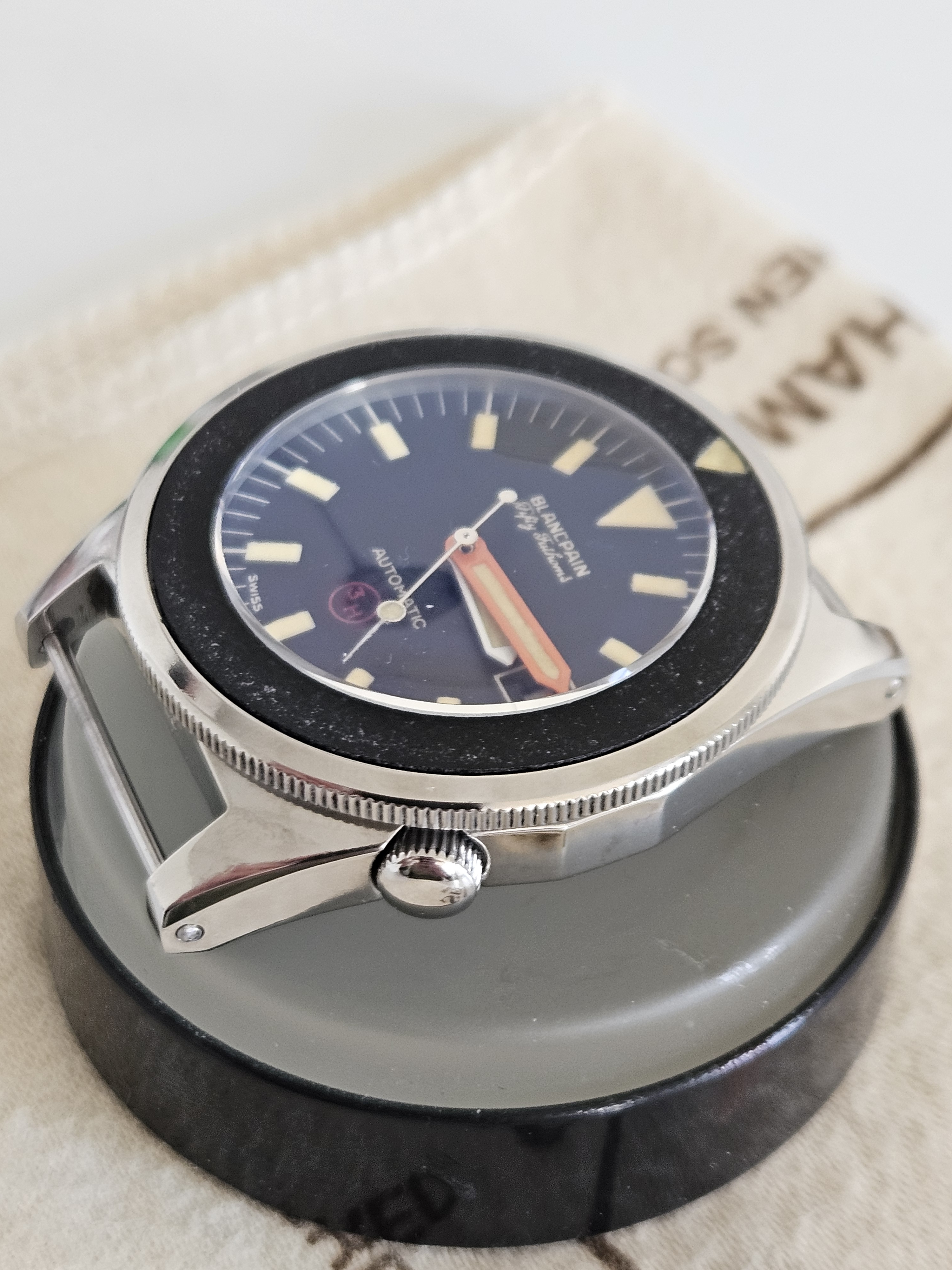

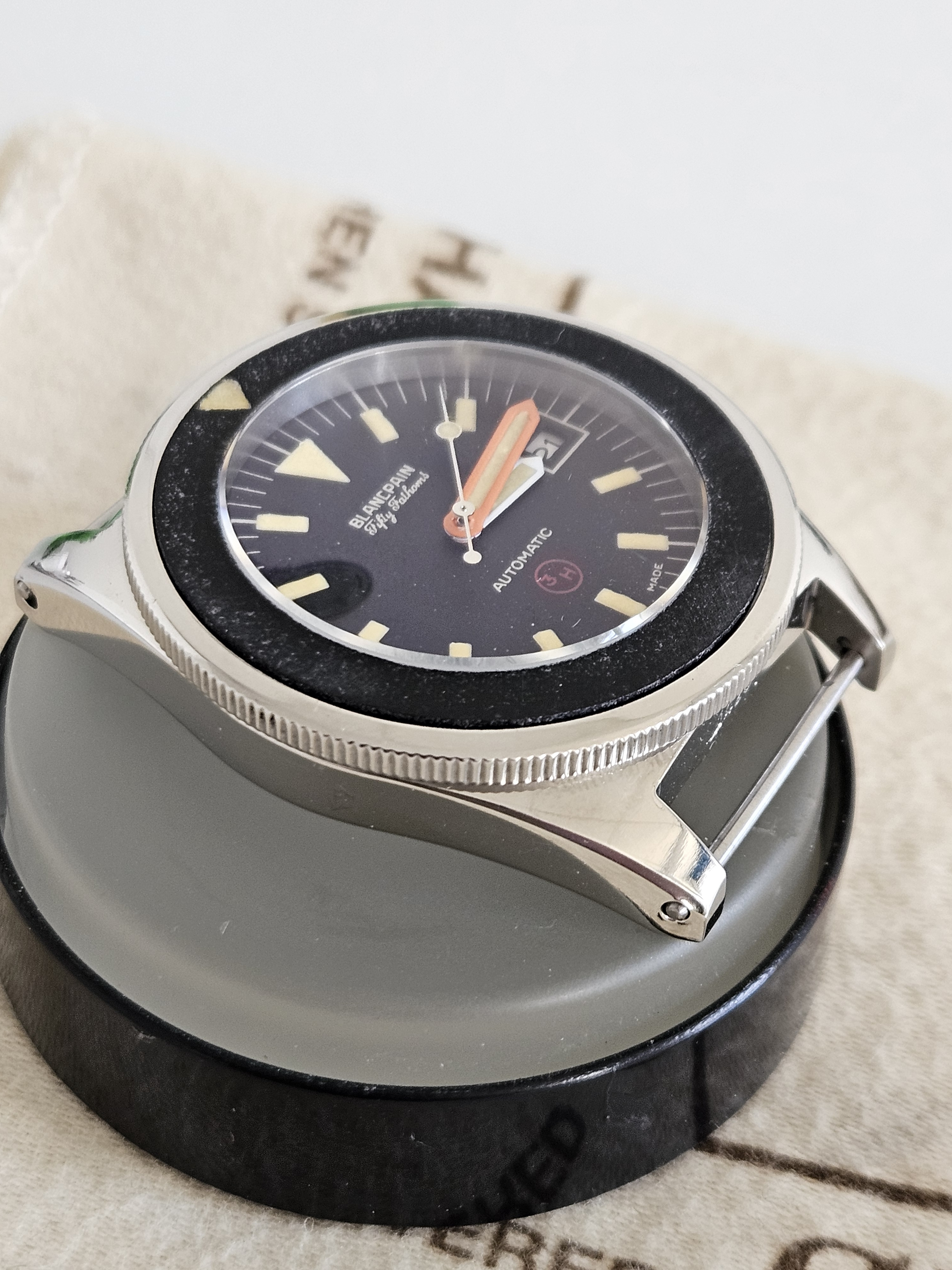

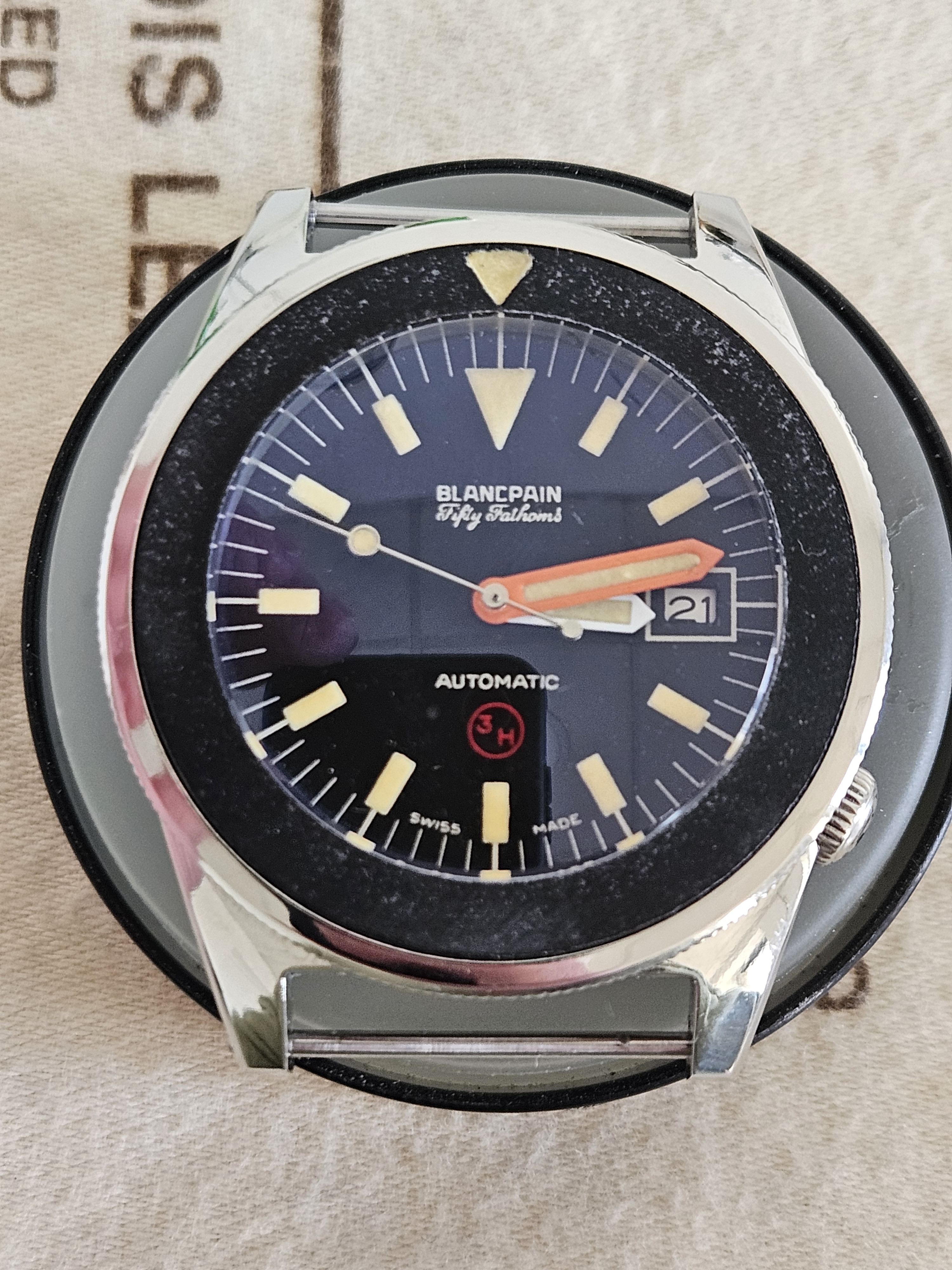

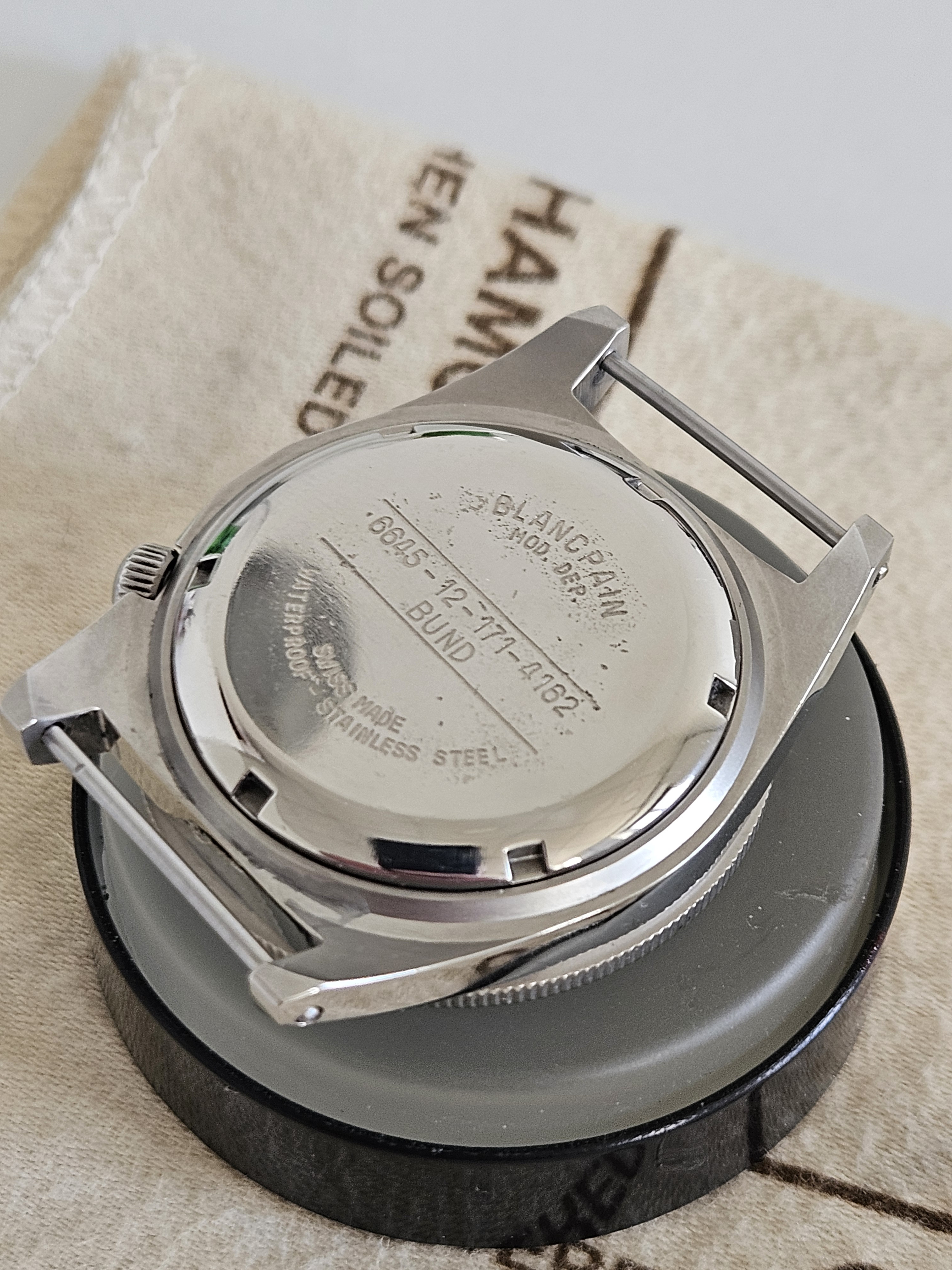

I finished 2 BlancPain BUND3H builds.
These projects had been delayed because I wanted to improve the design of the insert to be even closer to the original.
I worked on it for several months, but in the end I had to settle for making the same inserts as the previous ones.
So far, the owners seem to be very happy with the final products.

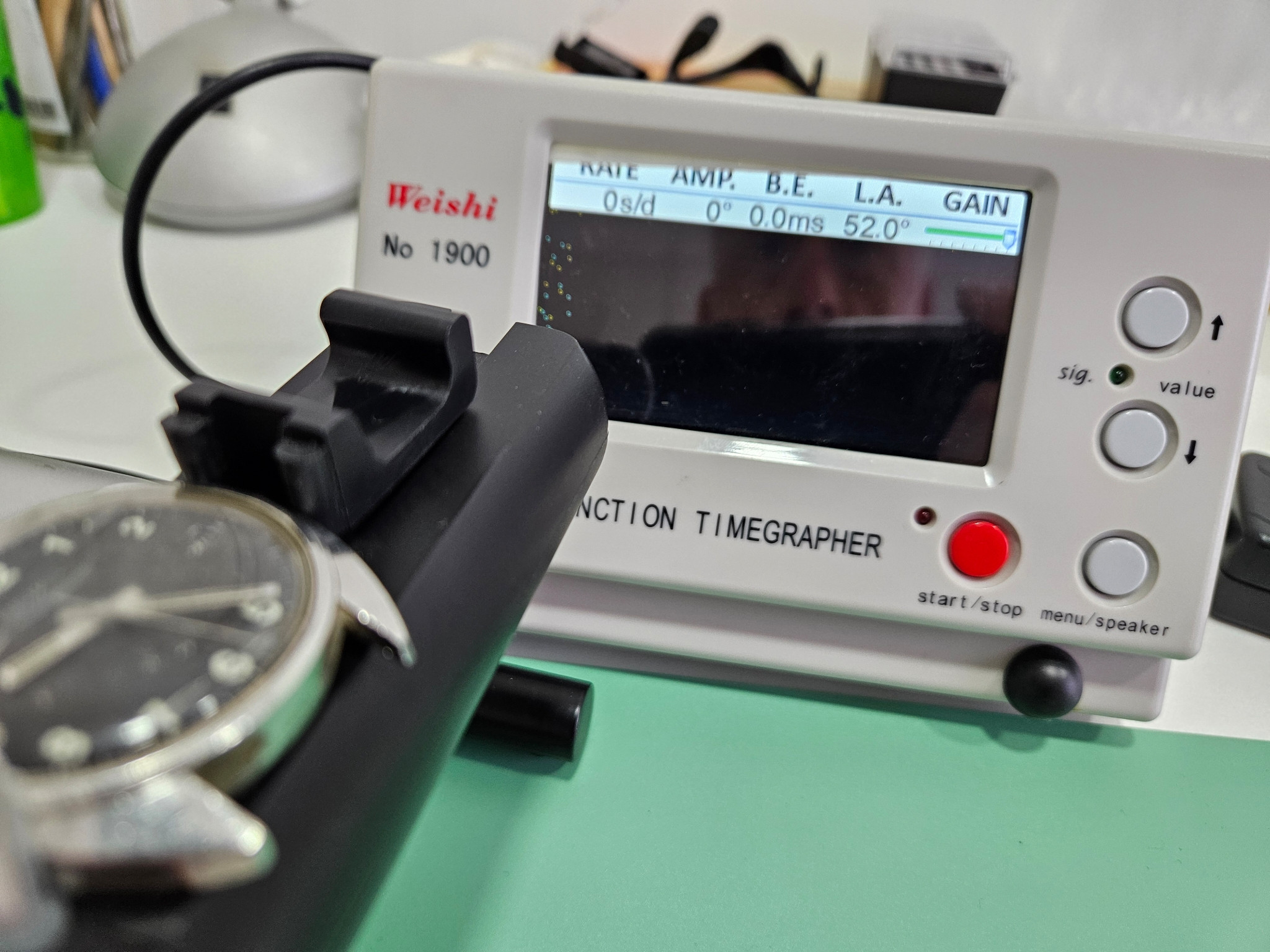

Of course those watches have been WP tested up to 5ATM and regulated around +2/-2 seconds/day

To be more precise, I've finished 3 of them, but the 3rd member has withdrawn.
So I'm going to keep the 3rd BUND for some time, even if it's a bit big for my wrist.


manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113

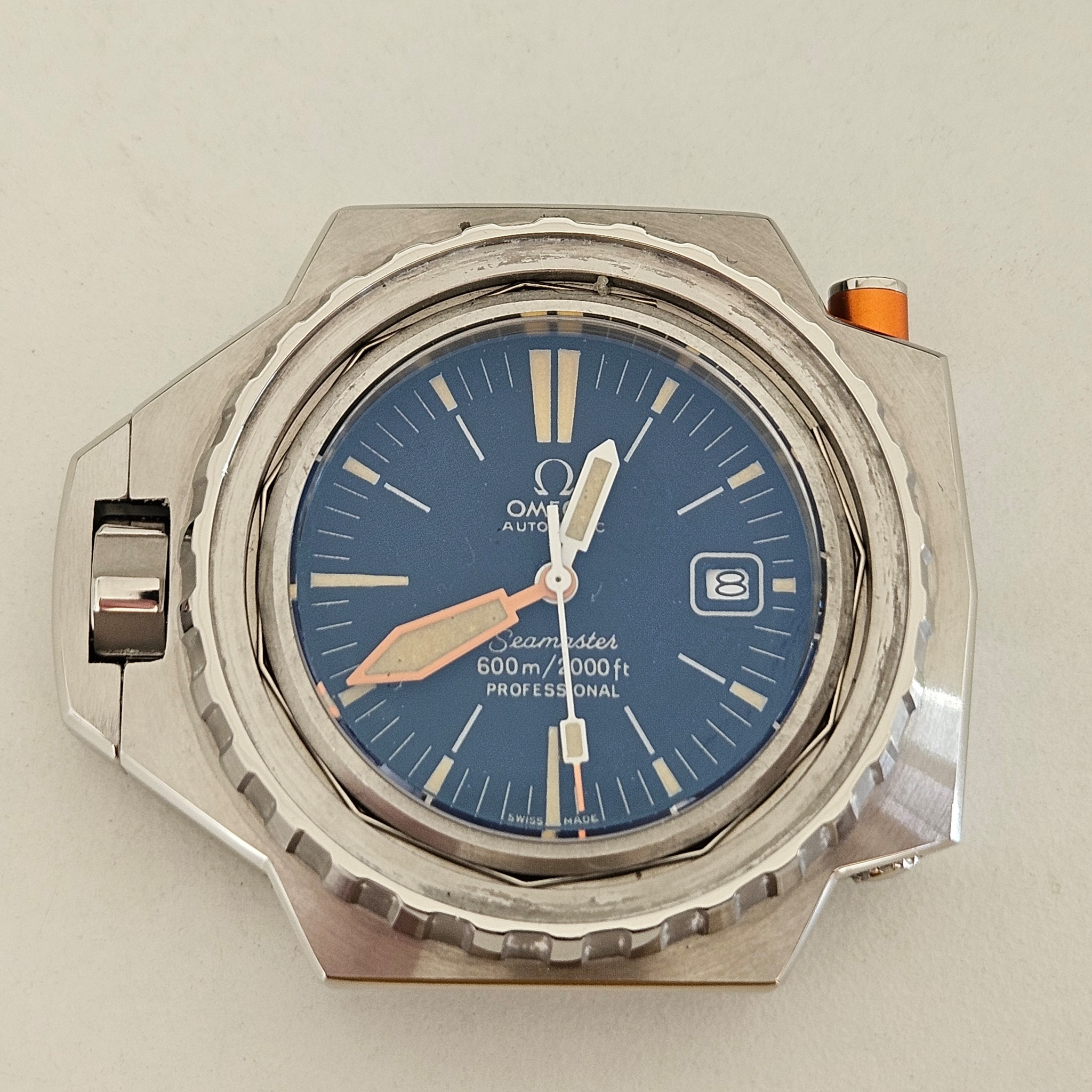

I also finished a vintage Omega PloProf 600m build with a dark blue custom dial.
That one too was delayed because of the insert ... and because of my fault :rolleyes:
The owner was happy to keep the original insert but I really wanted to make that build better.
So I delayed the finish and tried to make a vintage lumed plexi insert.
I made tons of tests but finally got results not good enough IMO.

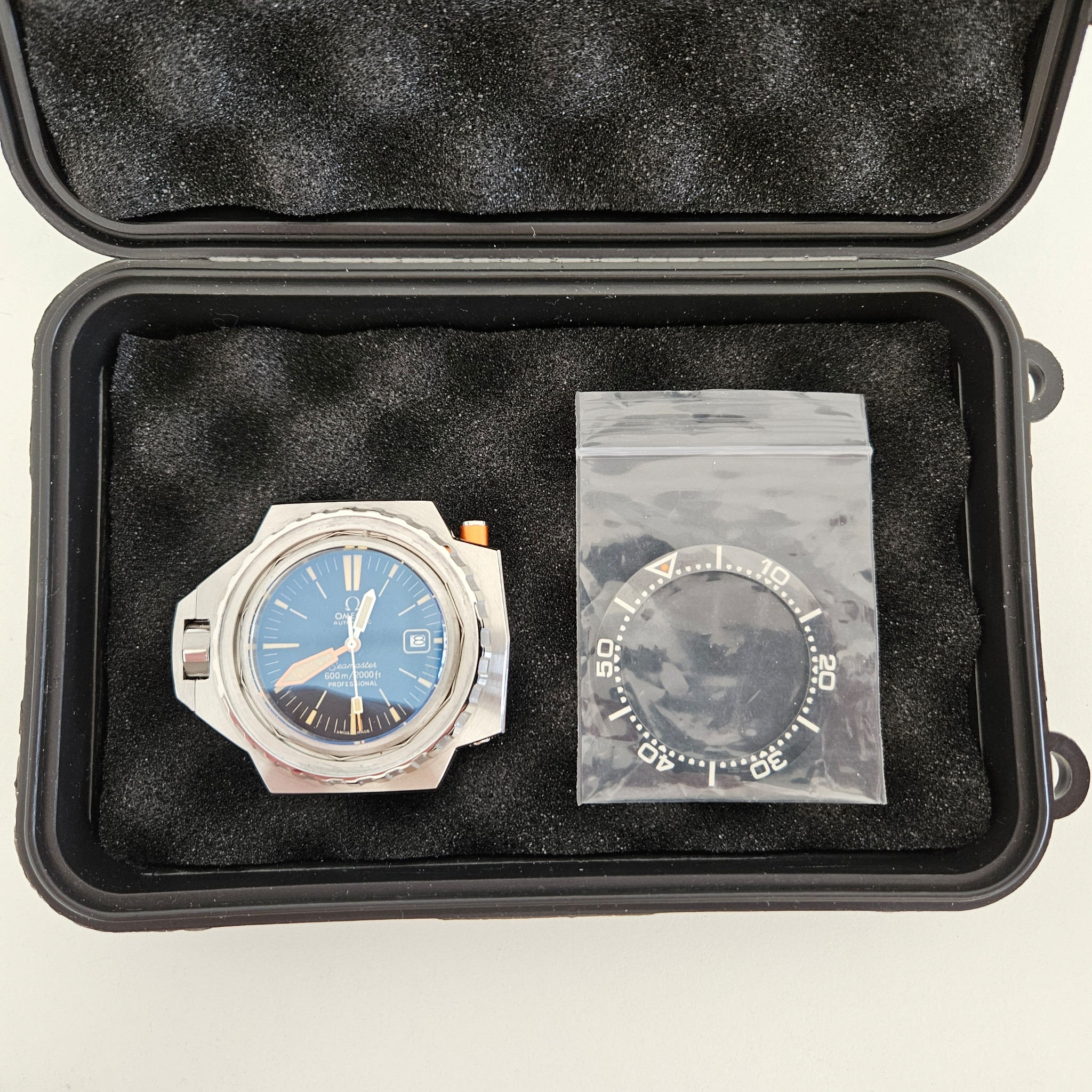

So I finally finished the build and sent it to it's owner.

However ... I will keep trying to make a convincing vintage lumed insert on my spare time.
And if I ever succed I will send one of those free custom insert to the owner ... for free of coursen to thank him for his patience 🙏





manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113

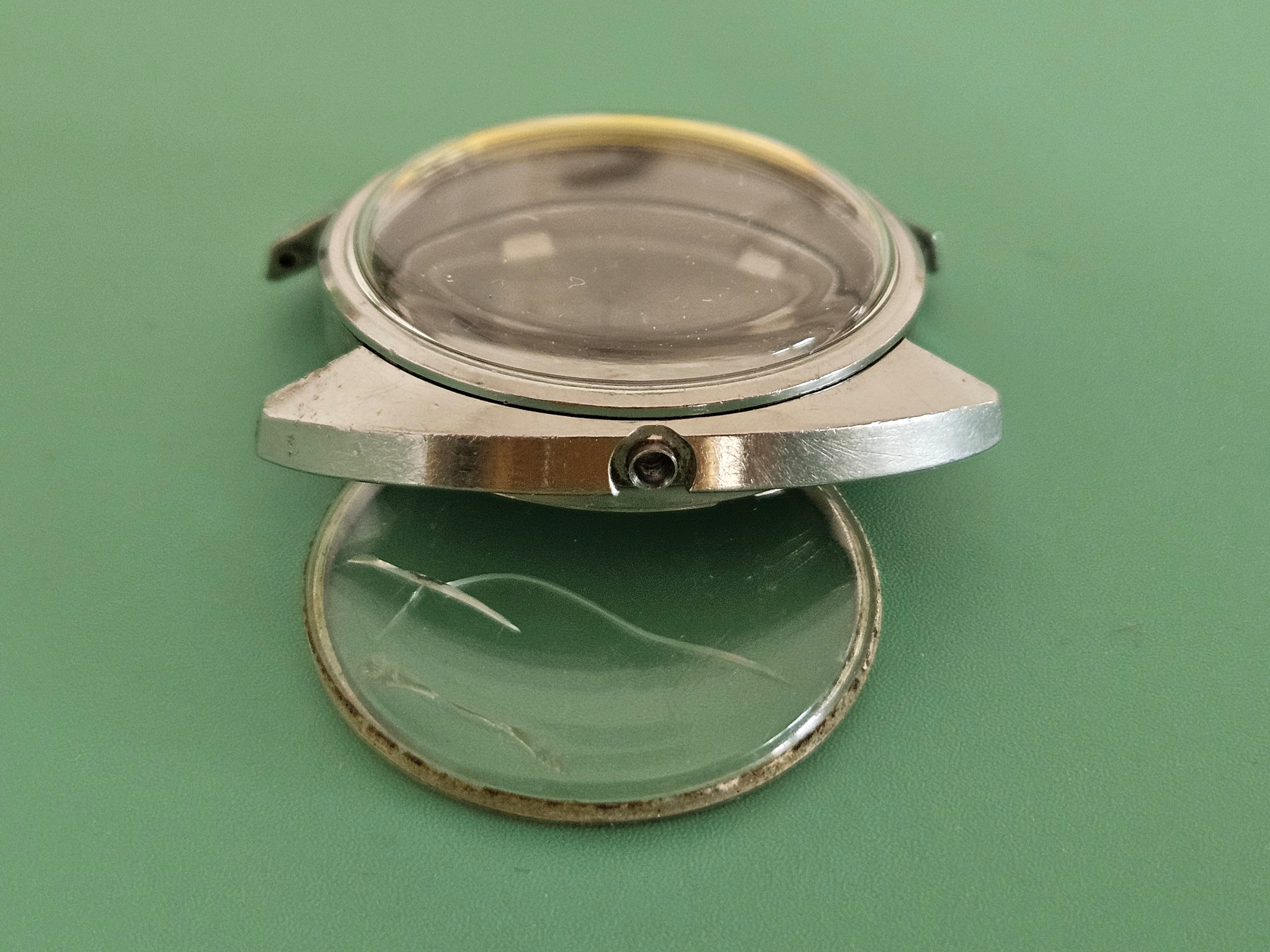

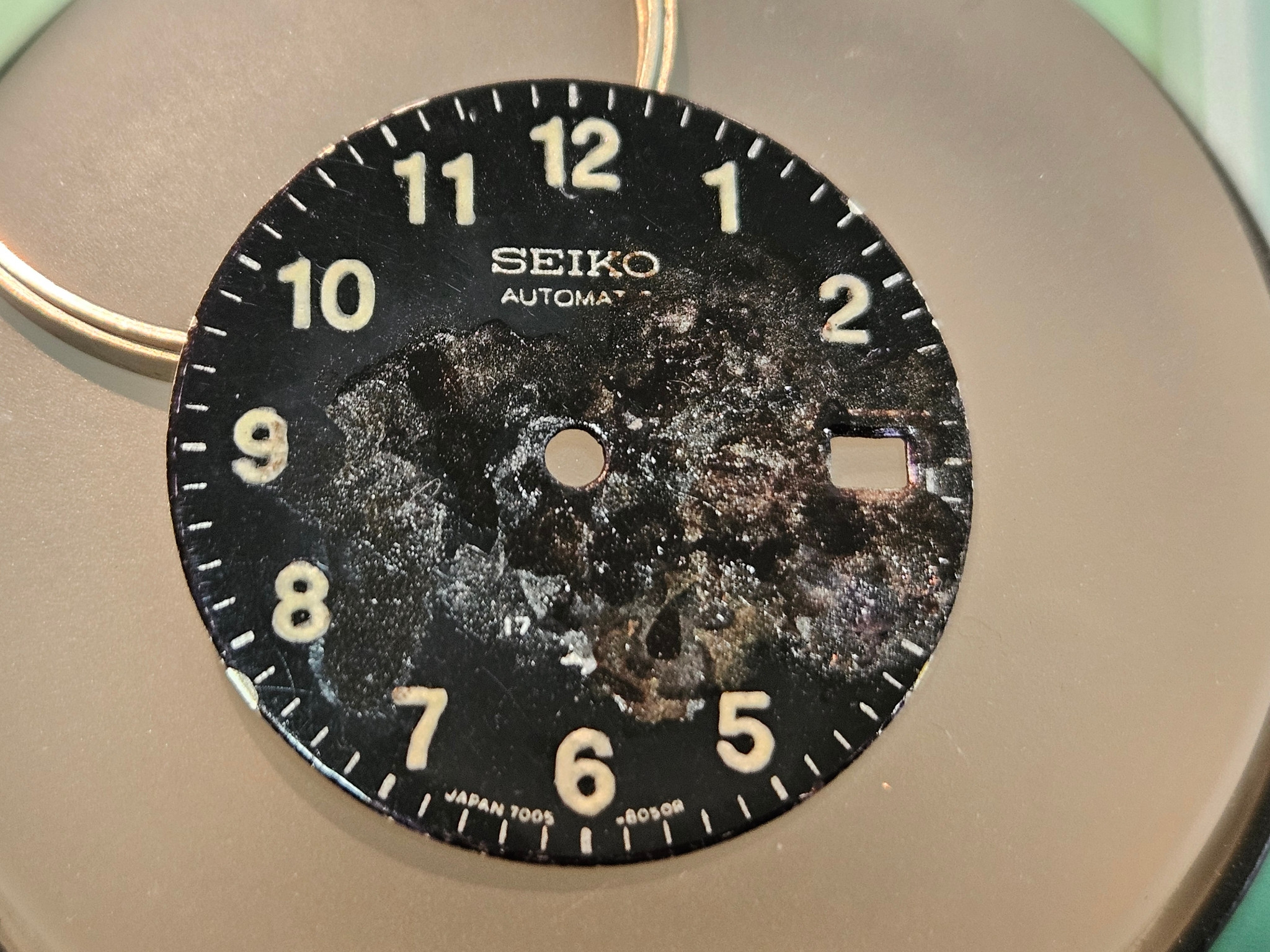

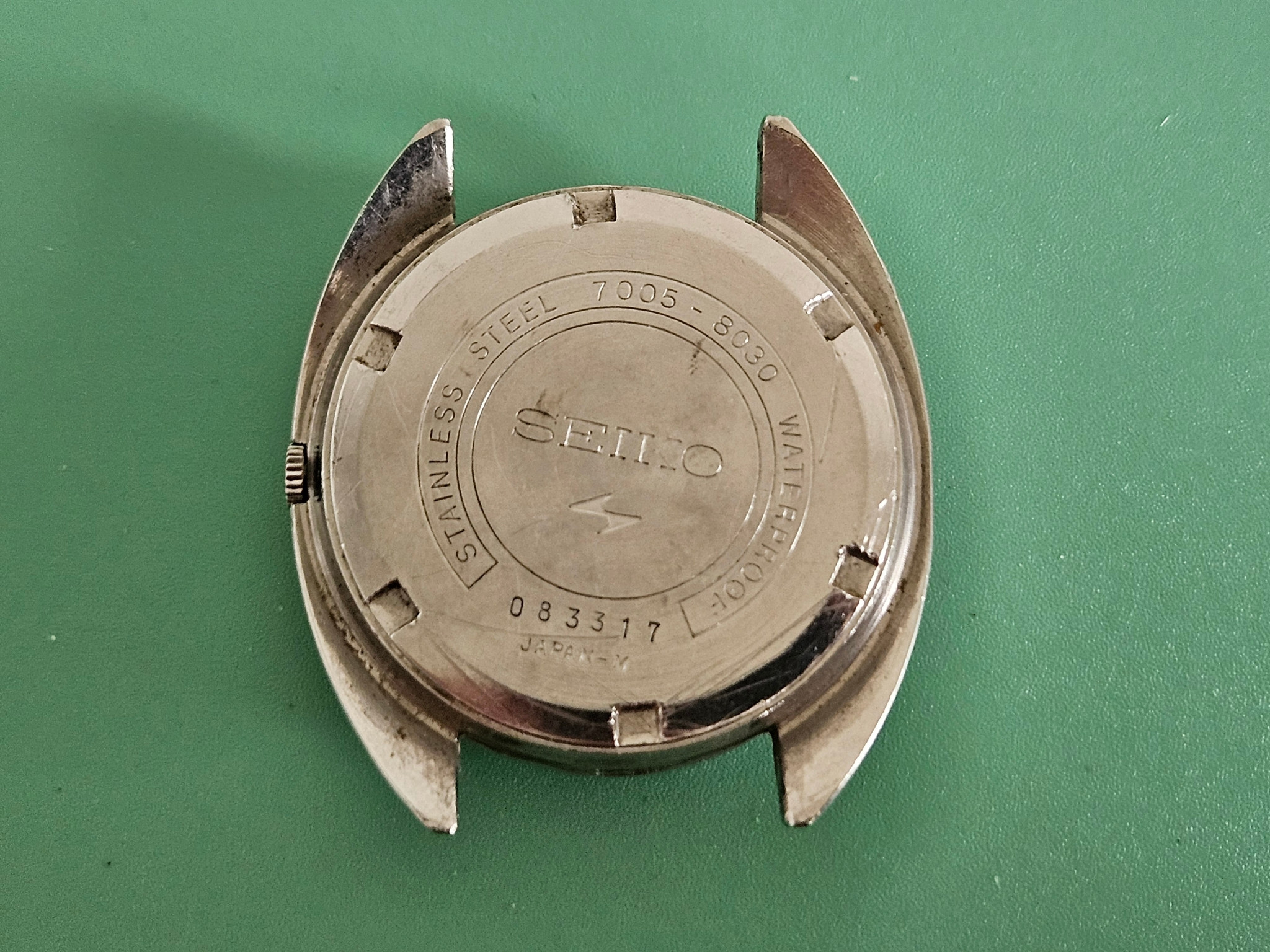

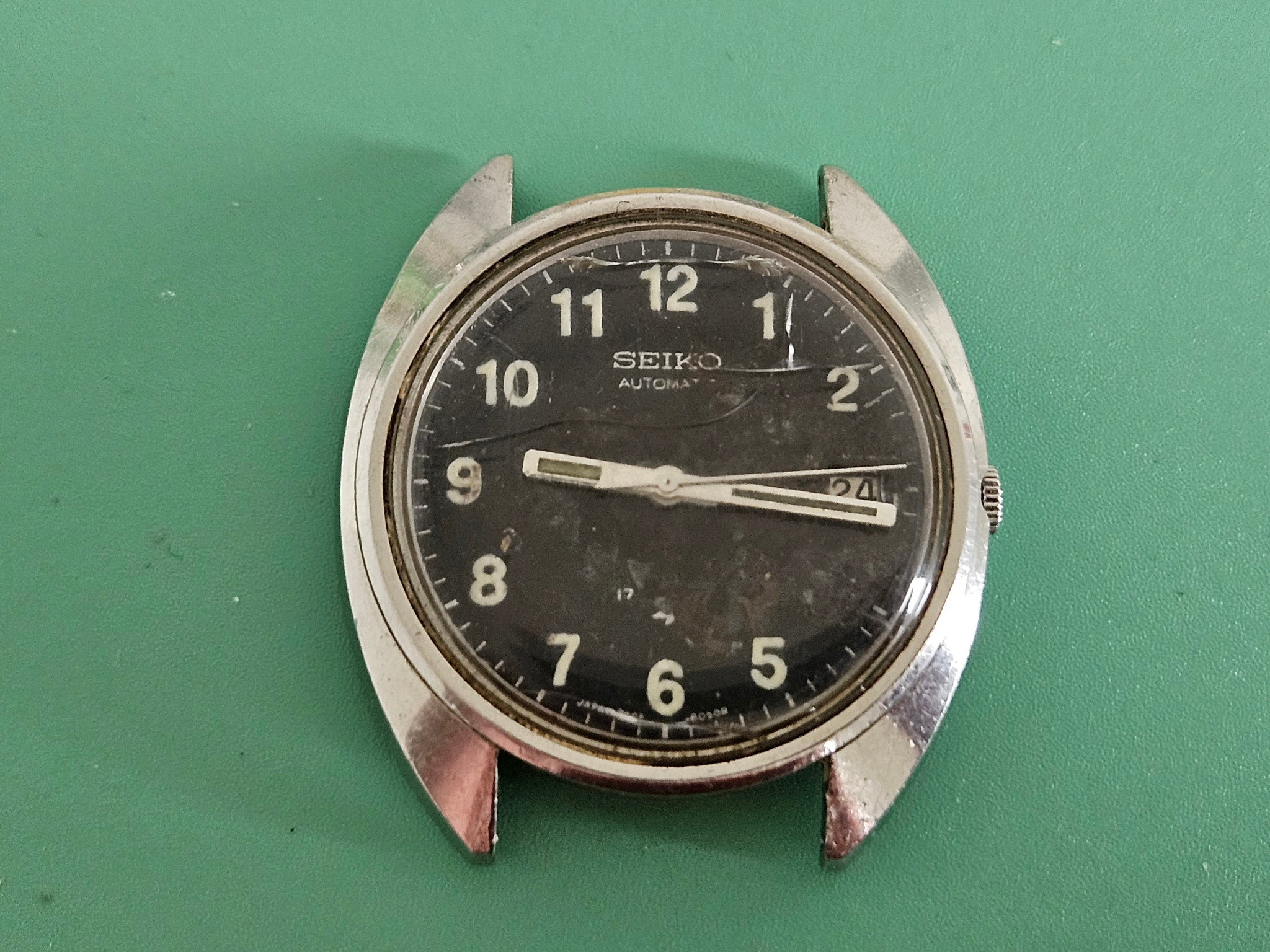

I worked on a Seiko 7005-8030 MACV-SOG in pretty bad condition :
- the movement was not working
- the plexi was cracked
- the dial was ... deadly abused :eek:






I replaced the plexi and buffed the case just a bit (the owner wants to keep the vintage look)

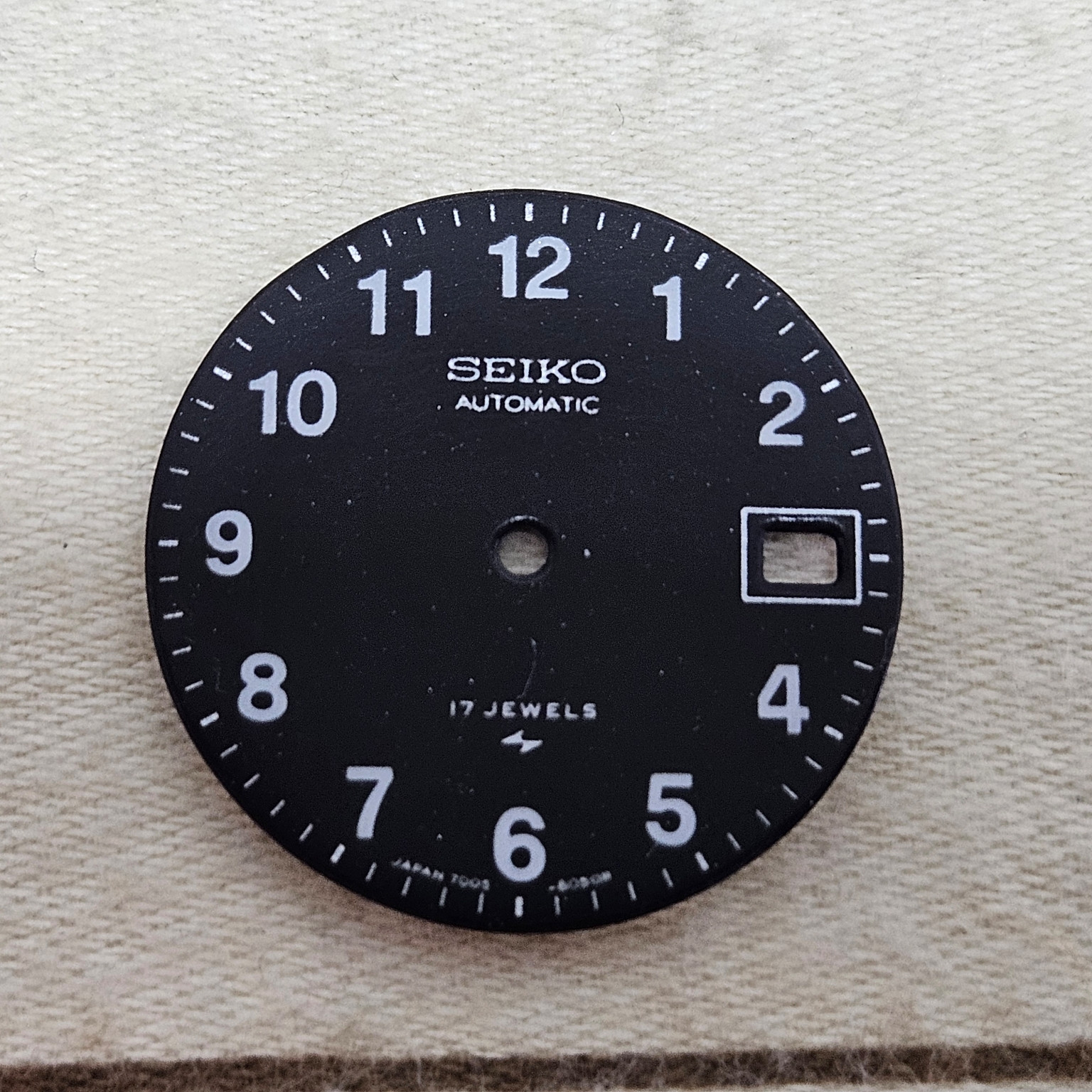

I've reprinted the dial ... waiting for the lume work.




BUT ... I'm still fighting with the movement to bring it back to life :rolleyes:
I'd like to keep all the parts original but I guess I'll have to replace the mainspring and the balance spring.


manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113
At the beginning of March I had to spend a week looking after my 94-year-old mother who had a fall.
During those days I wasn't able to devote a single minute to working on dials or watches, but in the evenings when she was asleep I was able to play little chemist ;)
The aim was to imitate the reaction of an old tritium lume when exposed to UV light :
- green luminescence under UV light
- brightness lasting a second after the UV lamp is turned off
I'll post a detailed thread on this experiment as soon as I can, but today I just want to show you the result I got.

Video of an old tritium dial under UV light :

Video of my special mixture under UV light:

It's not perfect but pretty close IMHO :cool:

I'll try to modify the mix to make it look better and I'll test it "in real" ... mixed with matte medium and applied on a dial hand handset.


manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113

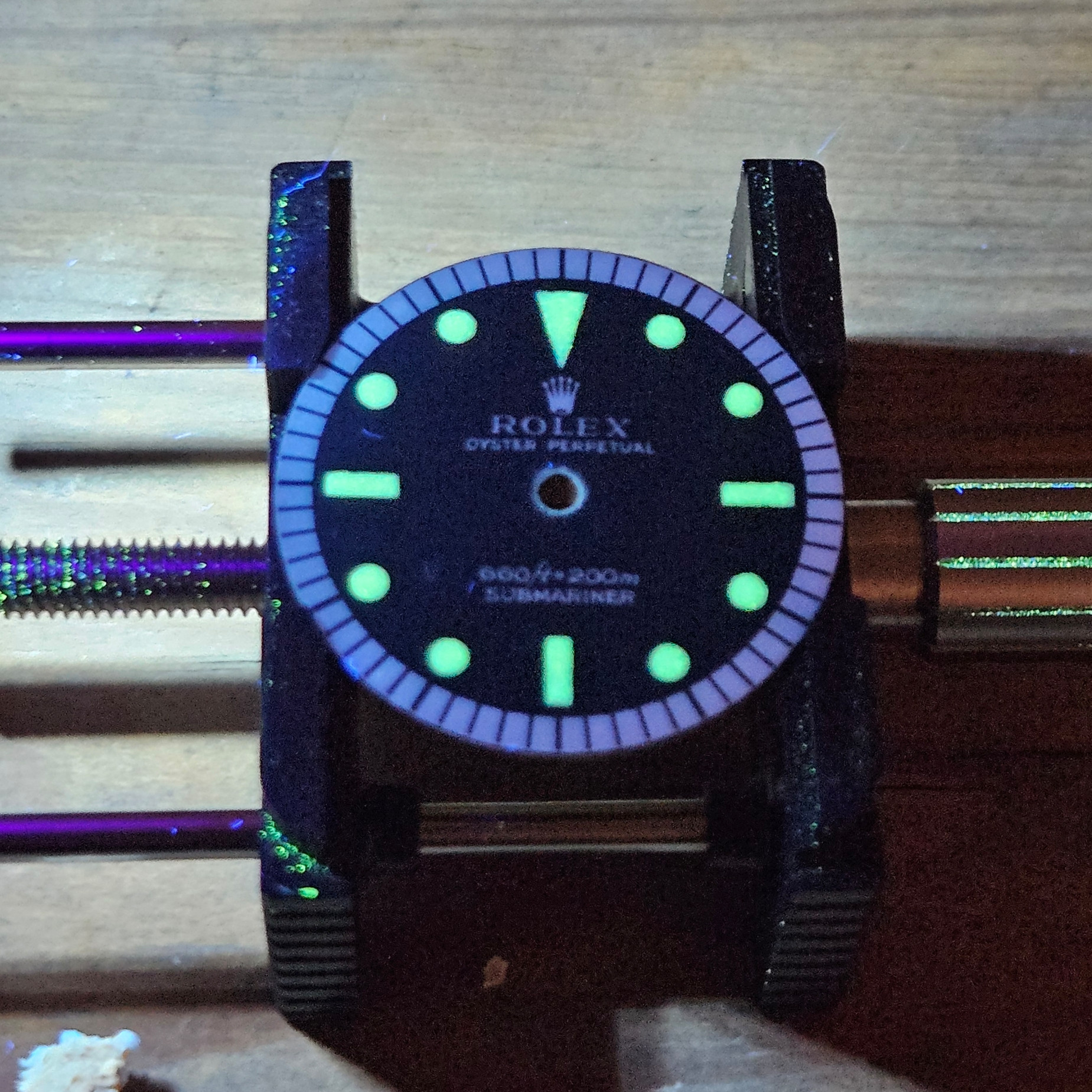

I lumed an old dial and made an UV reaction test.
The glow only lasts only a second after the UV lamp is switched off 😒 unfortunately that's the best I can do at the moment.
I'm stubborn so I'll keep improving my mix but I think I'm on the right path.



manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113
@manodeoro Nice to see that you're on the path of RWI redemption, brother! 💪

Well Done Reaction GIF


And I'm sorry about your private troubles. I don't think anyone (me included) meant to ridicule that, it's just the frustration accumulated over many years, I guess. Lol

👍 I'll keep working and posting reularly ...

BTW ... I'll have builds and custom dials ready to be shipped over the next weeks and I do NOT want to do any backdoor sale.
So could you please tell me how I can proceed to have the "do not trade with me" badge removed ?
I guess I can't send


manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113
I guess I can't create a new PM with the badge so how can I contact the moderators ?


manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113
I'll leave to southern France tomorrow morning ... need to check how my mother is going ... but I'll try to post some more pics.

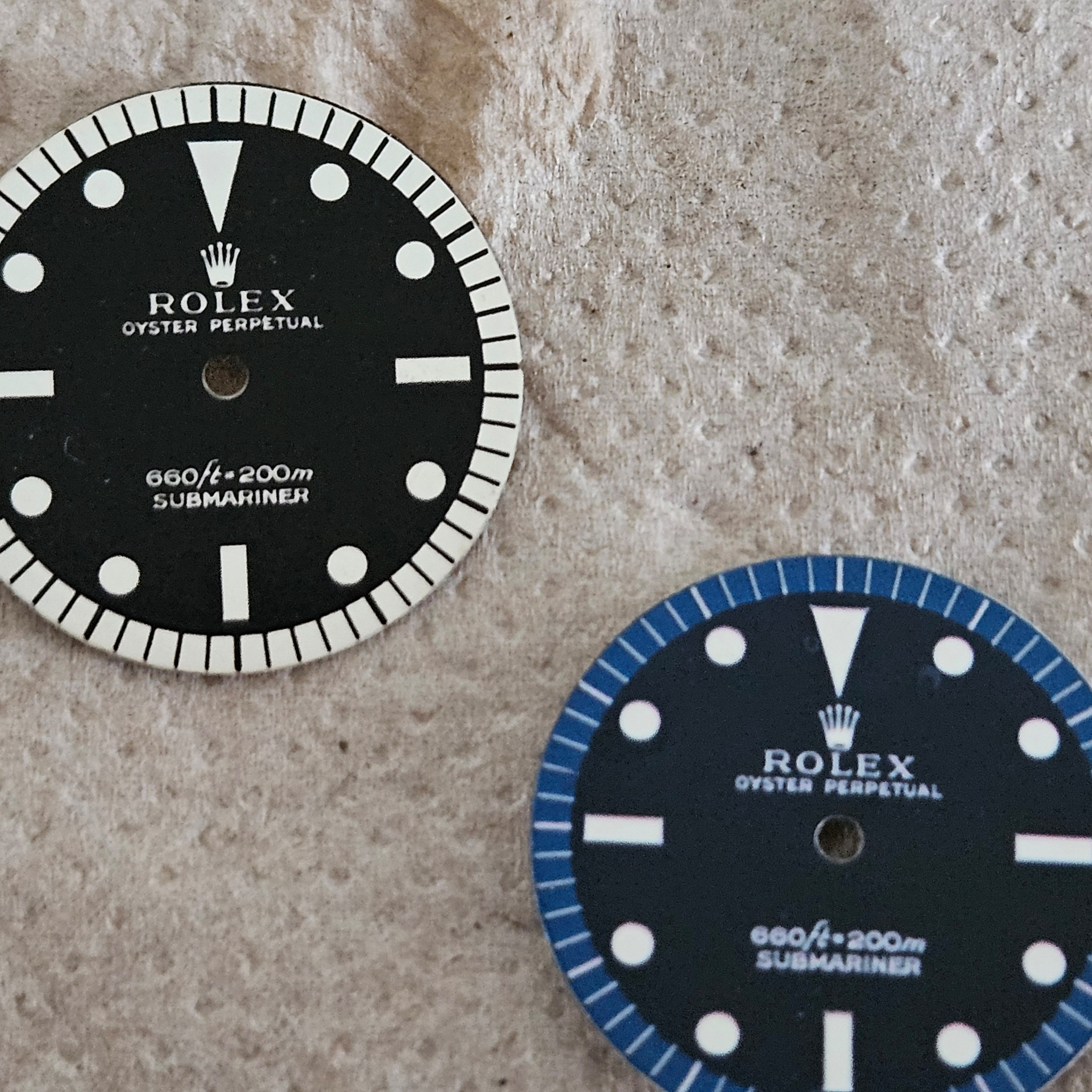

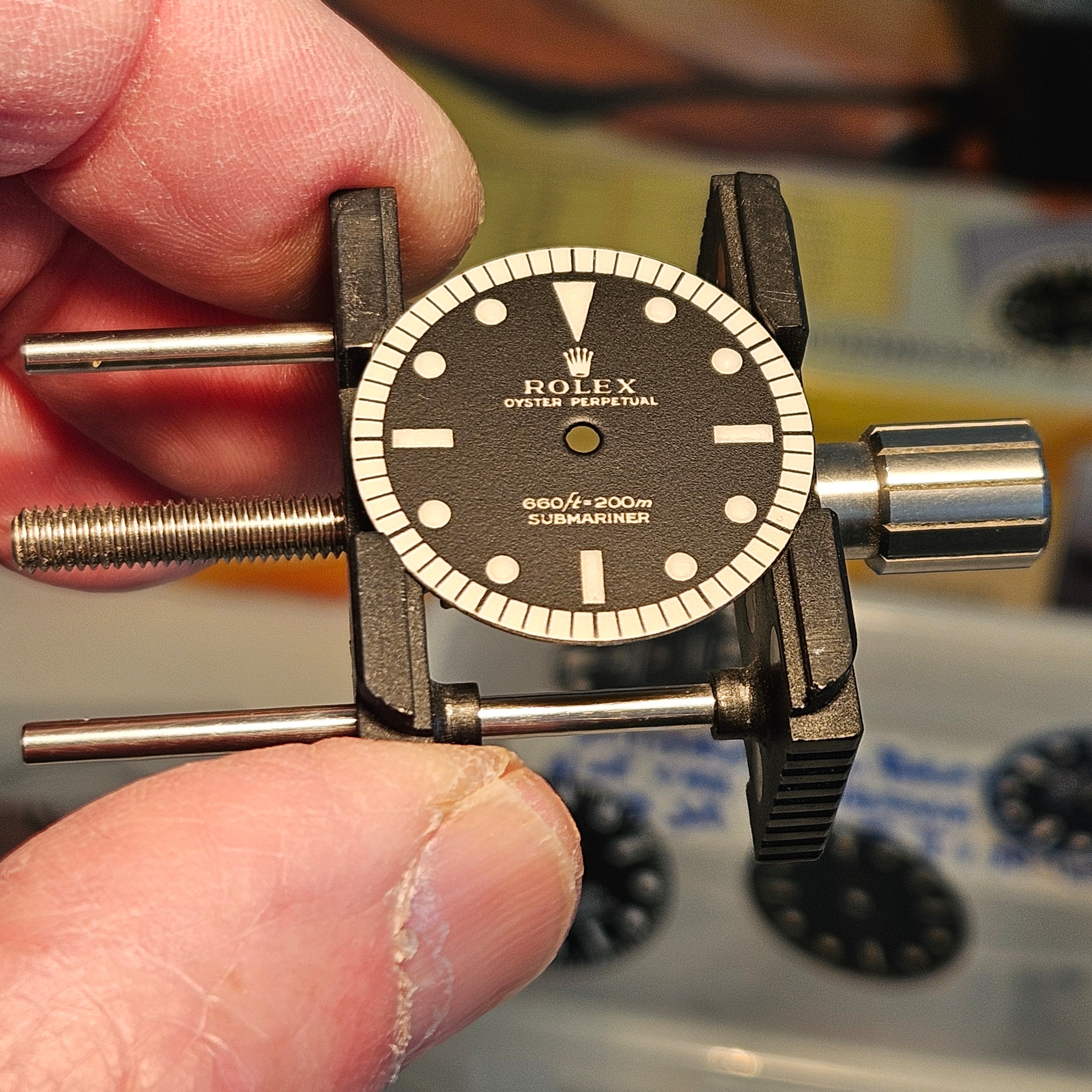

Before leaving I'd like to share the last print tests I made for a new project I'm starting ... two 5513 builds with piano dials (one blue + one black)



aphmars13

Renowned Member
Supporter
Certified
4/10/22
975
1,777
93
South of France
I lumed an old dial and made an UV reaction test.
The glow only lasts only a second after the UV lamp is switched off 😒 unfortunately that's the best I can do at the moment.
I'm stubborn so I'll keep improving my mix but I think I'm on the right path.

In any case, it's very similar to the test I was able to carry out on real radium dials and hands. A team from the French National Radiological Safety and Protection Authority came to sort and isolate them at my home today. You can be satisfied. It's identical: it switches on and off very quickly.


manodeoro

Respected Member
DO NOT TRADE WITH ME
Patron
Certified
13/10/16
3,977
2,575
113
Today I finished and lumed 2 dials :cool:

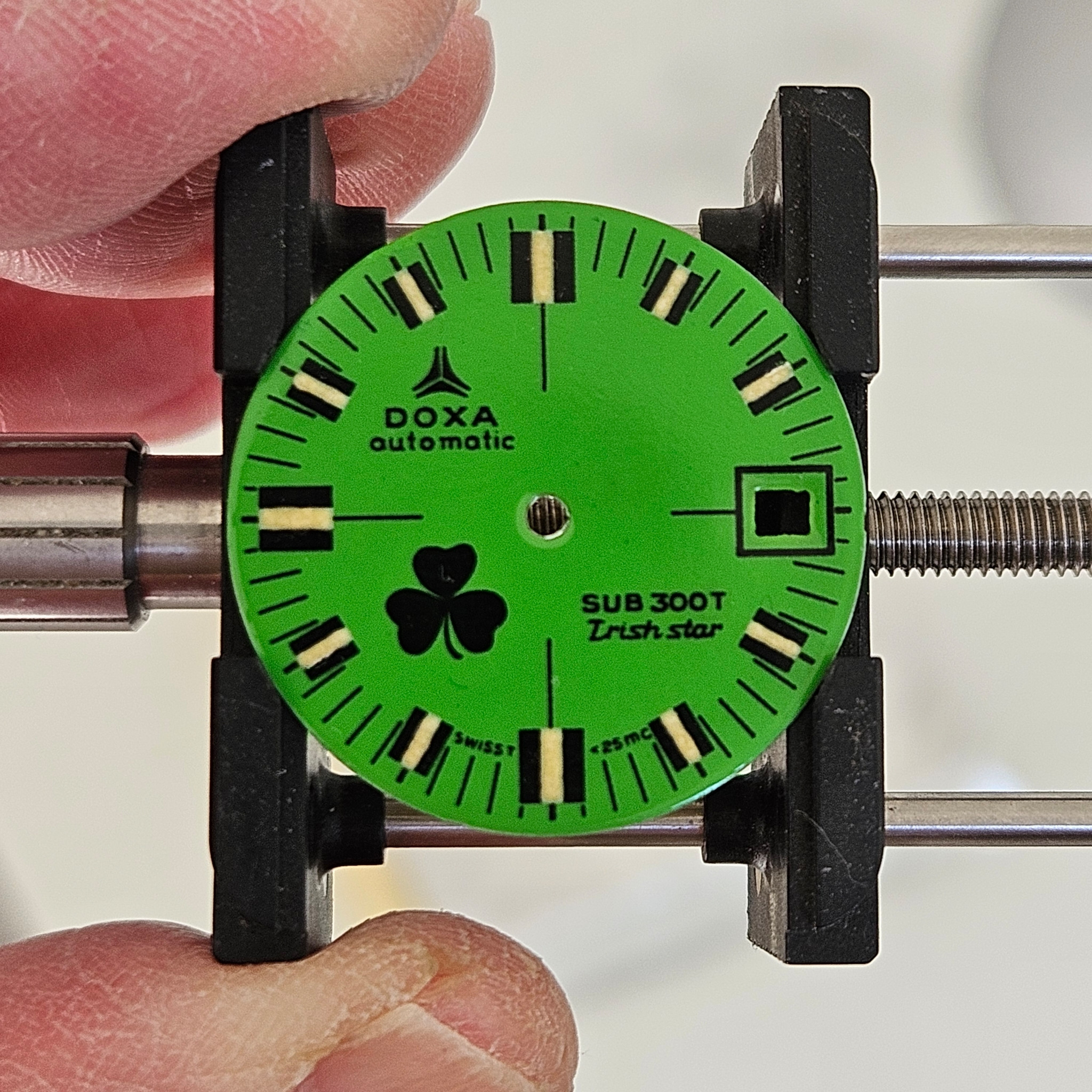

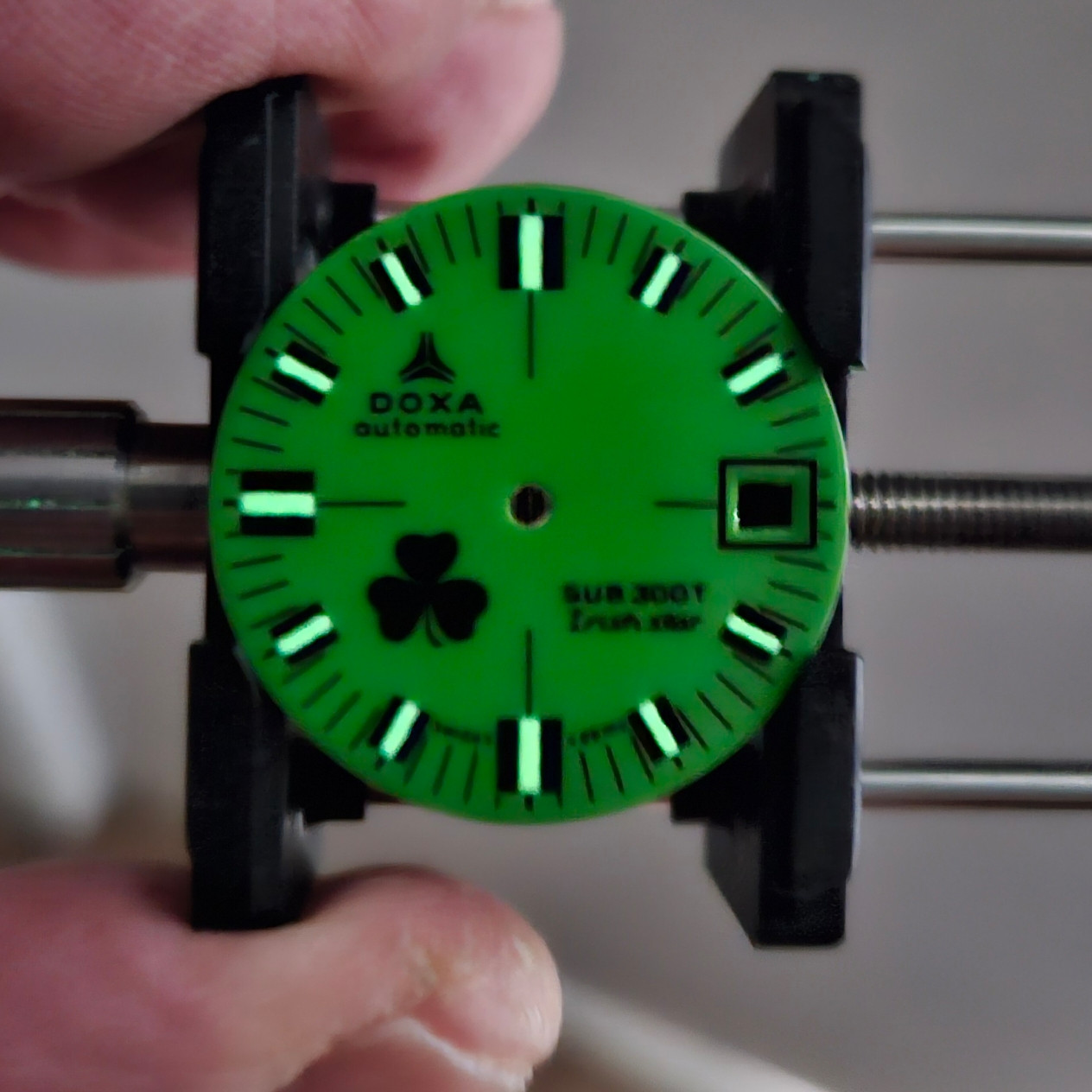

DOXA IRISHSTAR ... for gen Doxa SUB 300T




5513 BLACK PIANO DIAL ... for 5513 movement

White Lume


Not too flat ... not too puffy


Exposed to halogen light


Light off ... checking the lume doesn't charge


Exposed to UV light
