My first IWC Topgun (+ simple Mod) PIC HEAVY

winchester

Getting To Know The Place
27/1/13
20
0
1
Hi guys, just receive my IWC topgun V2 (i don see any engrave at the back of the buckle so i assume its V2). Super happy with it as this is my first rep.


Kind of big for my wrist

TogGun Logo too white

I feel that the topgun logo is too white and i decide to do some mod. Got some experience with plastic scale modelling, so decide to go through all my paint to get the correct colour(as close to the gen as possible). Saw it at the airport and from photo its seem like the colour is kind of like gun metal.




Shortlisted Colour

First is to remove the white colour that come with the watch.


Than paint over it with the colour that i want


First colour

Feel that this first colour is to shiny and silver

Second Colour

This colour seems too dull.

decide to mix both colour and this the final result.


Will let it dry for a day and compare with the GEN photo and hope that its close to the GEN colour.


GEN PHOTO (SOURCE FROM GOOGLE)

And i super happy with the watch!!!

P.S If this is post in the wrong thread, please let me know or mod can move it to the correct thread or even delete it. Thanks and so sorry.


BlackSealPanerai

Active Member
1/1/13
468
0
16
wow nice! closer color to gen.. U sure have a lot of tamiya paints! Sidetrack a bit, where (in Singapore) did u buy the smaller bottle ones? I go everywhere only can find the bigger bottles type.


razorblade

I'm Pretty Popular
18/8/12
1,156
1
0
wow nice! closer color to gen.. U sure have a lot of tamiya paints! Sidetrack a bit, where (in Singapore) did u buy the smaller bottle ones? I go everywhere only can find the bigger bottles type.
Like to know where to buy and which colour code too. Thanks in advance!


Albranius

Renowned Member
2/11/12
663
3
18
You did one nice job there!

Could you explain what you did? How did you removed the paint? How did you get it that detailed? Tell us! :D


winchester

Getting To Know The Place
27/1/13
20
0
1
Thanks guys.I don mind telling you guys but as long as its ok and i don create any problem or trouble for any fellow member her. Did something like this on other forum (but its airplane scale modelling) and share the tips, in the end got PM saying i revive out the secret and snatch their business. As long as its ok i will do it. So sorry guys.


s3g0y

Renowned Member
15/12/10
756
3
0
I don't think you will ruin anyone's business here :)
Go on, tell us please - you will make many fellows happy.


awynne56

Getting To Know The Place
15/12/09
94
21
8
Looks great, but could you please confirm gen color. I thought there was a hint of gold/bronze in there. Thanks for the info

Sent from my SAMSUNG-SGH-I747 using Tapatalk 2


winchester

Getting To Know The Place
27/1/13
20
0
1
Hi guys, thanks for everything. try to make it as clear as possible for you guys so that its easy to follow. Please forgive me if any of the part is unclear and the poor photography. Any question feel free to ask or even PM me. So here we go!!!!

Item

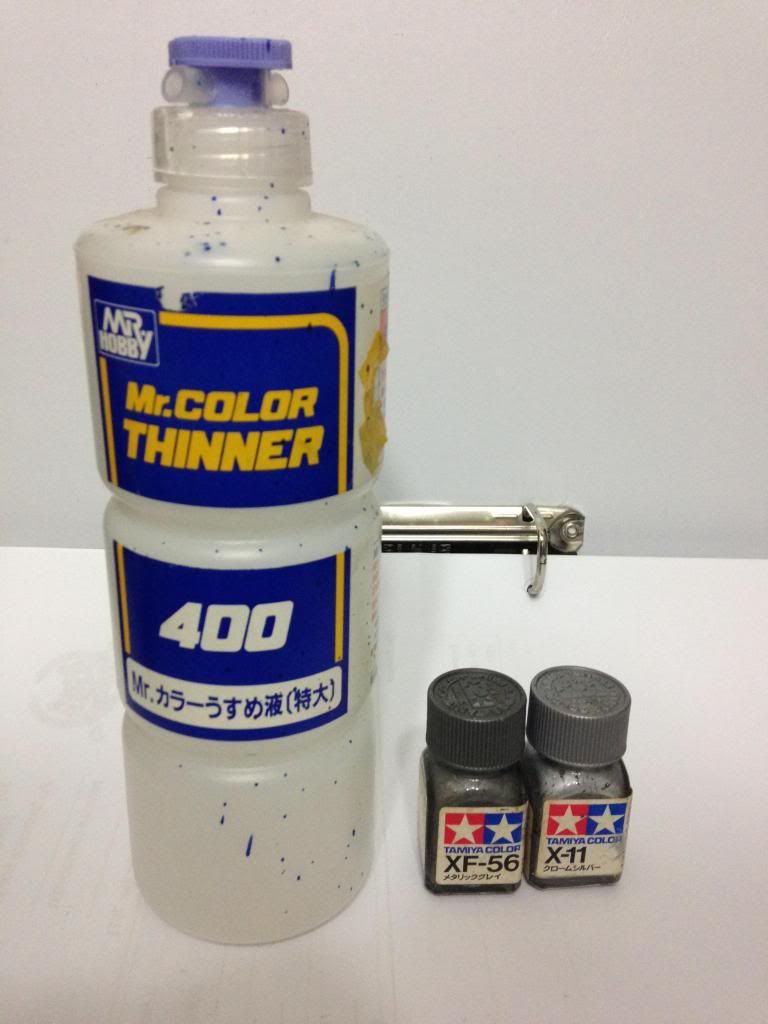

-Mr hobby Thinner 400 & Tamiya Acrylic Paint

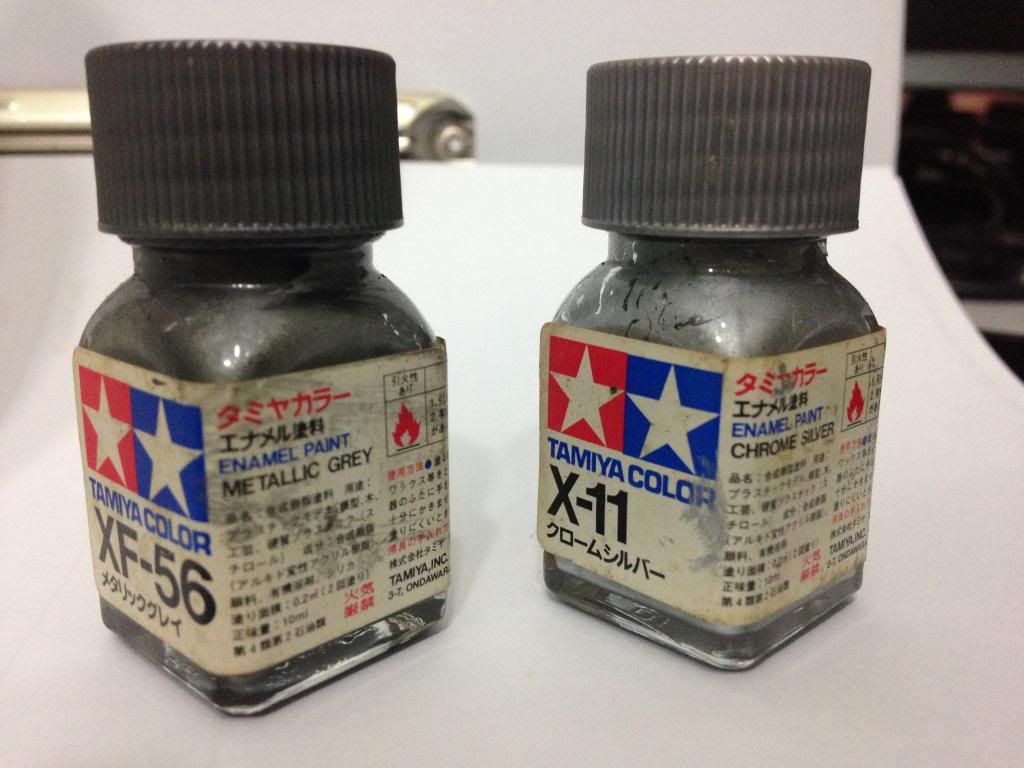

-Tamiya Acrylic Paint XF-56(Metallic Grey) & X-11(Chrome Silver)
NOTE:IF YOU DO NOT WANT TO MIX THE PAINT PLEASE USE XF-56 AND NOT X-11
I prefer to use Acrylic Paint (aka Enamel Paint) than water base paint as they are easier to control perfect for small detail stuff and there are harder to fade off.

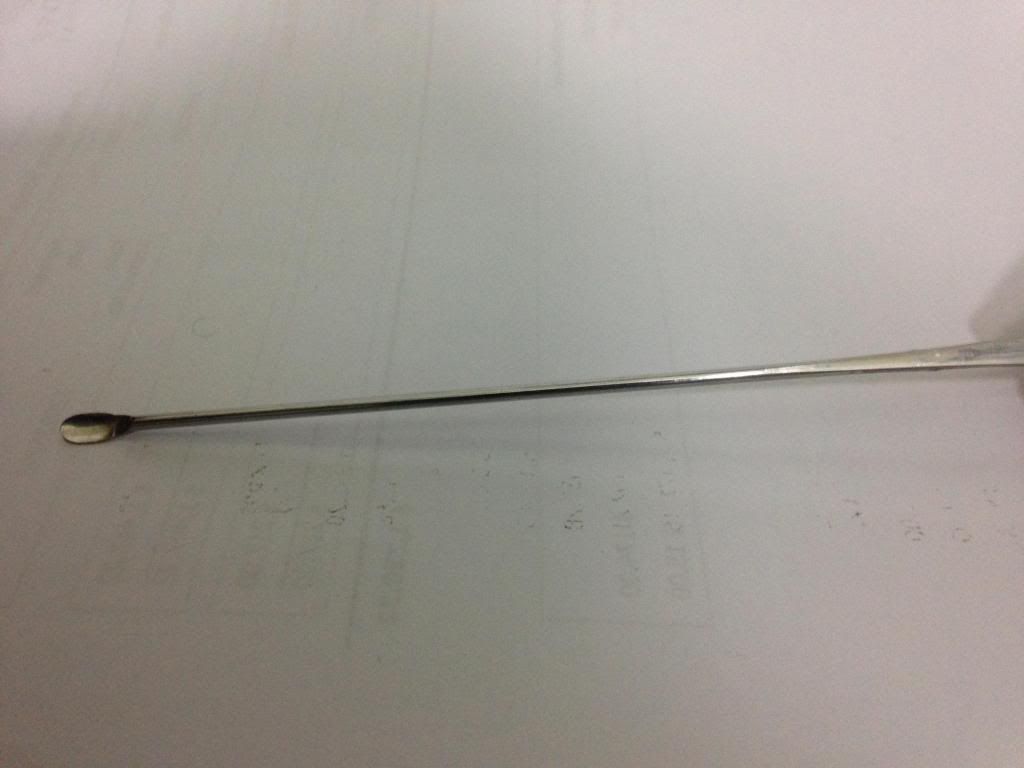

-Paint Stirrer (to mix both paint at 2:1 ratio, 2 part XF-56:1 part X-11)

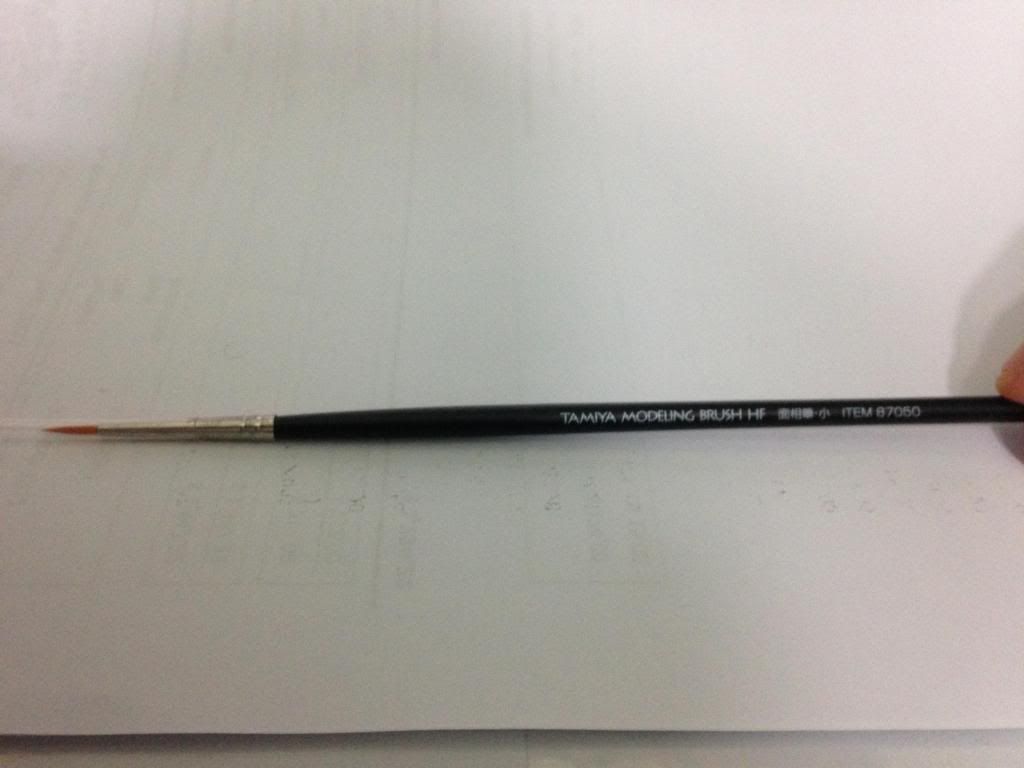

-Tamiya HF Brush ( If not any brush will do, try to get the better grade brush as the hair from the brush will not drop out and get stuck on the paint job)

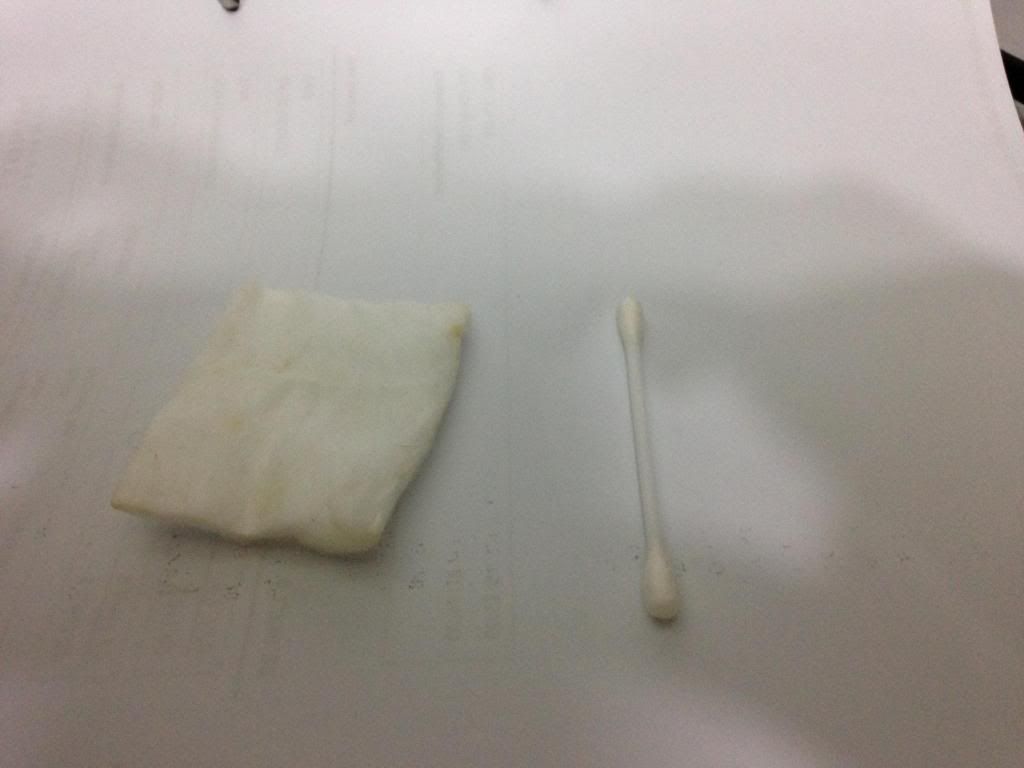

-Cotton Wool and Cotton Bud

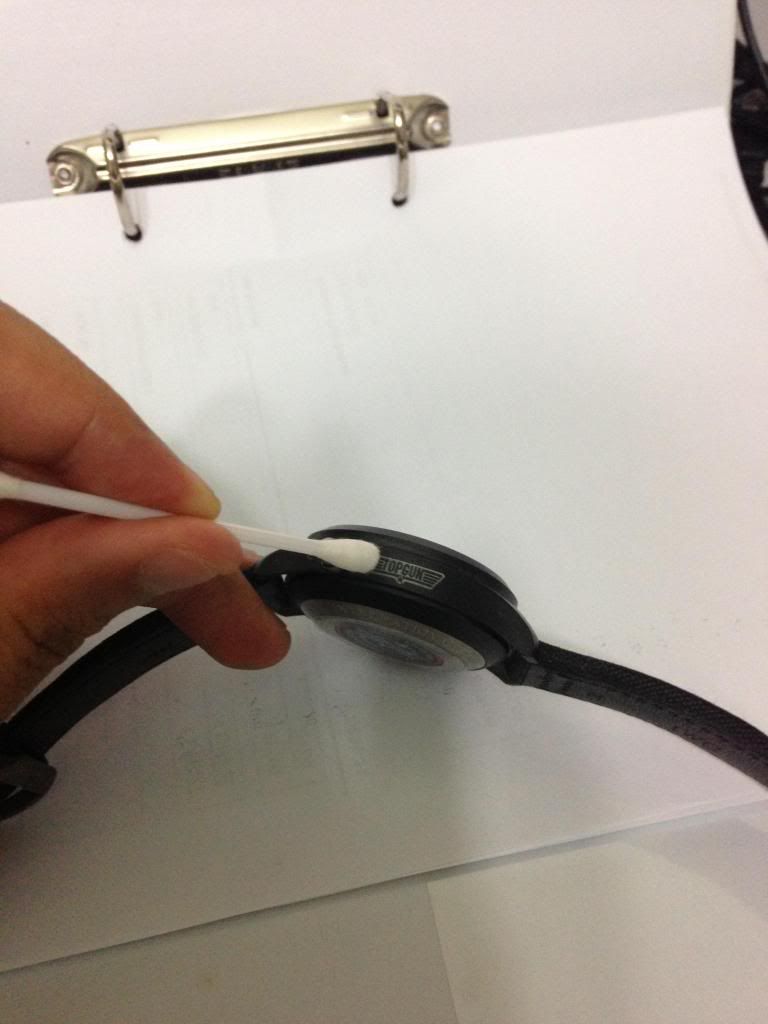

Remove the paint from by using the cotton bud with the thinner, this is to make sure you remove all the paint from the edges.



Paint over the Top Gun logo with the colour. (I use the 2:1 ratio)

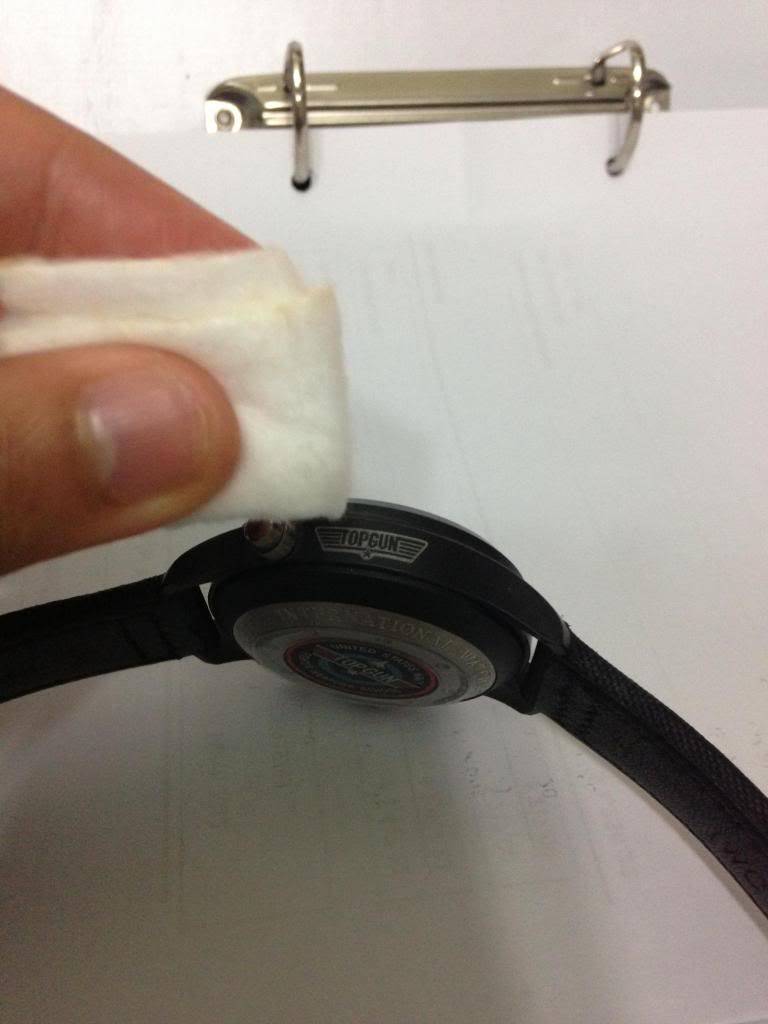

Now apply a small amount of thinner on the cotton wool and whip over the logo lightly until there's not more paint outside the logo . Due to the engrave, the paint in the logo will not be remove.
REMEMBER DO THIS WHEN THE PAINT IS STILL WET!


PLEASE NOTE!!!
- Do not apply a large amount of paint at the first time, this will actually fill up the logo with paint. Kind of like filling up hole with cement. The trick to get the perfect coat and look is to apply a thin layer over and over again.
- It ok if some of the paint in the logo get remove the first time, wait for the paint to dry (30mins -45mins), clean up than apply the second coat. For me to get the desire outcome i did 5 super thin coat.


So this my 1cent to mod your top gun. Please feel free to PM or ask me question. Once again please forgive me for my bad english and poor photo.

Cheers!!!
A very happy topgun owner!!!


winchester

Getting To Know The Place
27/1/13
20
0
1
Thanks! If any of you guys manage to find out better colour combi please let me know. Thanks
