PT5000 Movement Question

2

2005 Seadweller

Active Member
13/1/24
457
226
43
Hello Members,

How difficult would be to install a PT5000 movement replacing a Miyota 8215 movement/ Rep .

I understand the Dial feet would have to be removed and replace with dial Dots .
The Miyota date wheel overlay will also have to be installed on the PT5000.

Is it possible to swap or just buy a new watch ?

Thanks Ed

KJ2020

KJ2020

Time Traveler
Patron
Supporter
12/3/18
37,503
80,064
113
To swap an 8215 for an ETA clone a better choice would be a 2836.

The stem height on a 2824 clone is too different - 8215 is 2.5mm, 2824 is 1.8mm, 2836 is 2.25mm

An even better choice wound be a DG2813, which is also 2.5mm. I believe the dial feet positions are also the same for 8215 and 2813. Also the hands hole sizes would be the same.

Stem height governs vertical alignment for the movement stem hole and the tube. You can deviate a little and make it work but not more than .25mm or so.

Last edited:
  • Like
Reactions: FasterForward and shinynewbling25
2

2005 Seadweller

Active Member
13/1/24
457
226
43
Thank you I would like to perhaps contact the forums watch maker if he or she is in the USA , and see what’s the charge t for the modification.

KJ2020

KJ2020

Time Traveler
Patron
Supporter
12/3/18
37,503
80,064
113
2005 Seadweller said:
So this ST4186 clone 2836 movement should fit the bill ?
For the Miyota 8215 swap ?
www.ebay.com

For SEAGULL ST2146 CLONE ETA 2836 2836-2 AUTOMATIC MOVEMENT PERLAGE Gold/Silver | eBay

Find many great new & used options and get the best deals for For SEAGULL ST2146 CLONE ETA 2836 2836-2 AUTOMATIC MOVEMENT PERLAGE Gold/Silver at the best online prices at eBay! Free shipping for many products!
www.ebay.com
Click to expand...
Yes that will work as far as the stem height. The dial feet positions are different and will have to be modded. Also the hands hole sizes are different. The Miyota minute hand hole can be crimped (reduced) and the second hand hole broached (increased) but this requires some careful work that is not always a great success. A set of ETA hands would be preferable.

M/H/S
Miyota 8215 100/152/17
ETA2826 90/150/25

2

2005 Seadweller

Active Member
13/1/24
457
226
43
Thank you I prefer to buy new ERA Mercedes hands any good sources for high quality hands besides eBay ?

Thanks again 🙏

KJ2020

KJ2020

Time Traveler
Patron
Supporter
12/3/18
37,503
80,064
113
2005 Seadweller said:
Found these on eBay look of good quality
www.ebay.com

Silver Watch Hand For Rolex/Tudor Submariner ETA 2824-2, 2834-2, 2836 2874 | eBay

It is made for the Rolex/Tudor Submariner watch and will fit ETA 2824-2, 2834-2, 2836-2, 2874, 2892. This is a high quality watch hands in silver. Hour: 8 mm. Minute: 12 mm.
www.ebay.com
Click to expand...
Those are not good quality. Compare to these

www.alibaba.com

Top Quality Watch Hand Set For Vintage Sub 16610 16613 14060. Fit 3135 Movement Aftermarket Watch Repair Replacement - Buy 16610 Watch Hand 3135 Watch Hand Product on Alibaba.com

Top Quality Watch Hand Set For Vintage Sub 16610 16613 14060. Fit 3135 Movement Aftermarket Watch Repair Replacement - Buy 16610 Watch Hand 3135 Watch Hand Product on Alibaba.com
www.alibaba.com www.alibaba.com

Note there are two choices, get the width minute hand you need if you buy.

2

2005 Seadweller

Active Member
13/1/24
457
226
43
I noticed that movement comes with a day date wheel, do I have to remove the DAY wheel for this mod ? If so what is the process?
Thanks for your help !

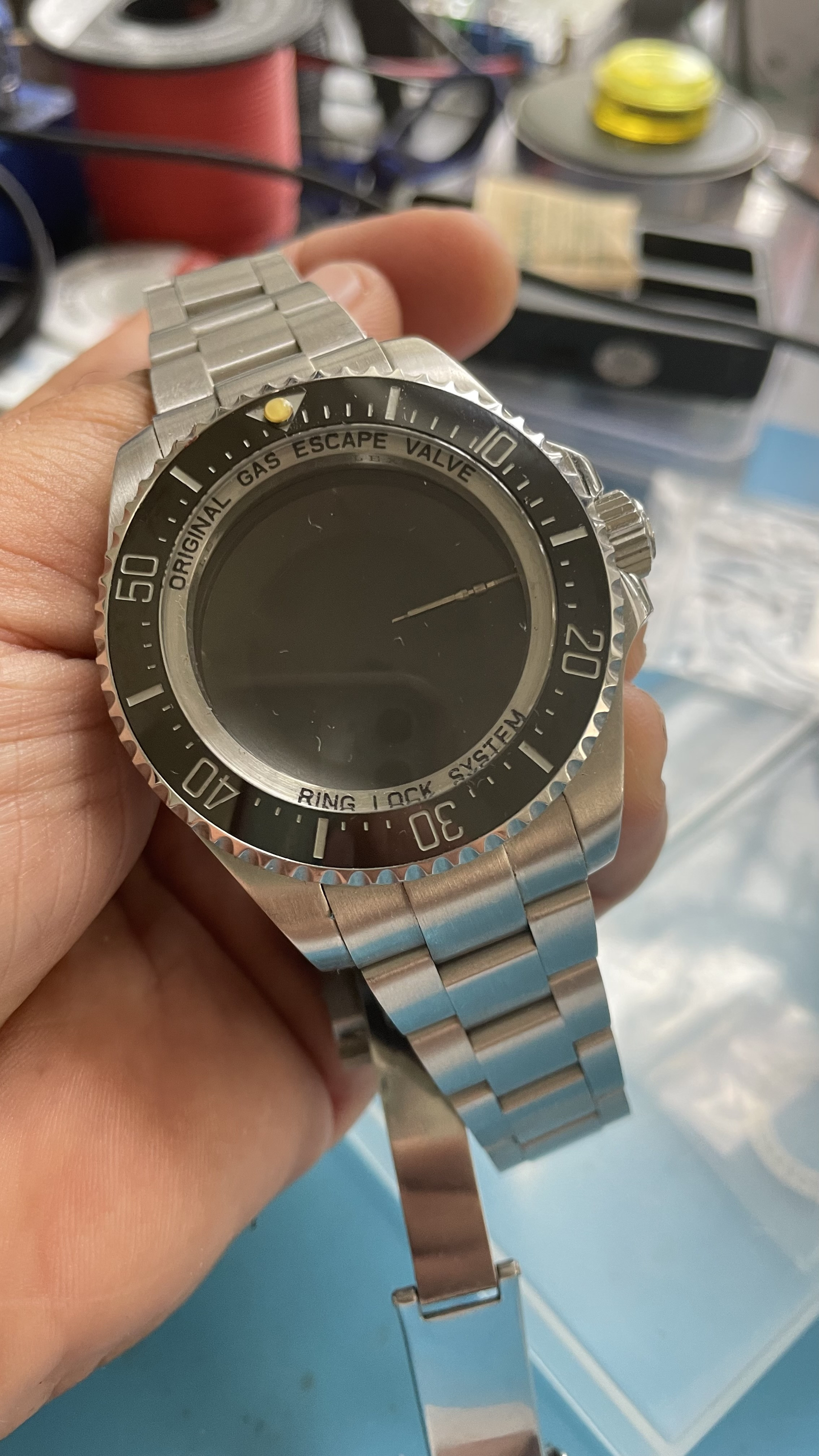

I would like to save my Deepsea 🙏

KJ2020

KJ2020

Time Traveler
Patron
Supporter
12/3/18
37,503
80,064
113
You can leave the day wheel if you don't want to mess with it. If you want to take it off there is a little 3/4 circle clip (circlip) on the center post that you just pull away with a tiny screwdriver or sturdy tweezers.
