Hey guys,
Just as the title says, this thread is about the Rolex Daytona 116520 dials and their variations over the years. This thread comes as a follow-up to my previous one which covered only the black dials.
As I said before, I've spent some time in trying to figure out what are the diffrences between the dials of the stainless steel bezel 116520 rolex daytona and while doing so, i've managed to also find some other key diffrences between time periods regarding other aspects of the watch .
I'll also include these findings at the end of the dial study below.
Although i think i've managed to include most of the dials out there, this is just a personal study, made by analysing pictures found on the internet and may not be complete or tell the whole story. So please feel free to share your opinion and/or add any missing dials or details left behind.
This study was done not only to observe differences between dials but to also group the daytona into time categories, making period identification of a watch much easier.
I don't know how things are where you live, but here a lot of watches are missing papers so I really hope this guide will come in handy when trying to determine a rolex daytona manufacturing year .
Ok, let’s begin!

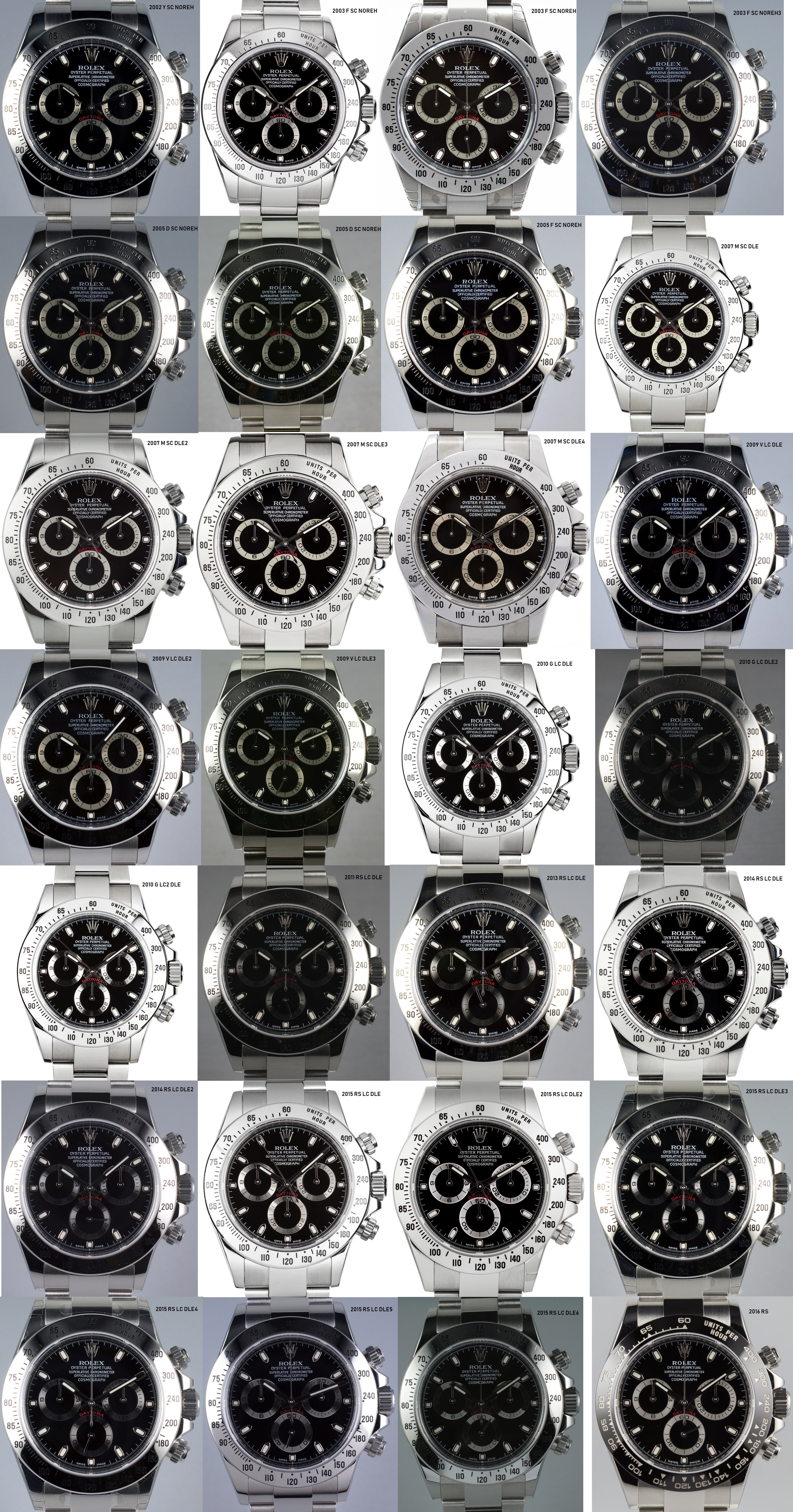

I'll first start with the black dials :
NOTE: All the pics are hi-res so please zoom in to see the full details.
Tag meaning :
RS - Random serial
SC - short clasp / old style clasp:
LC - long clasp / current style:
DLE - double line engraving:
NOREH - no rehaut engraving:
Laser etched rehaut :

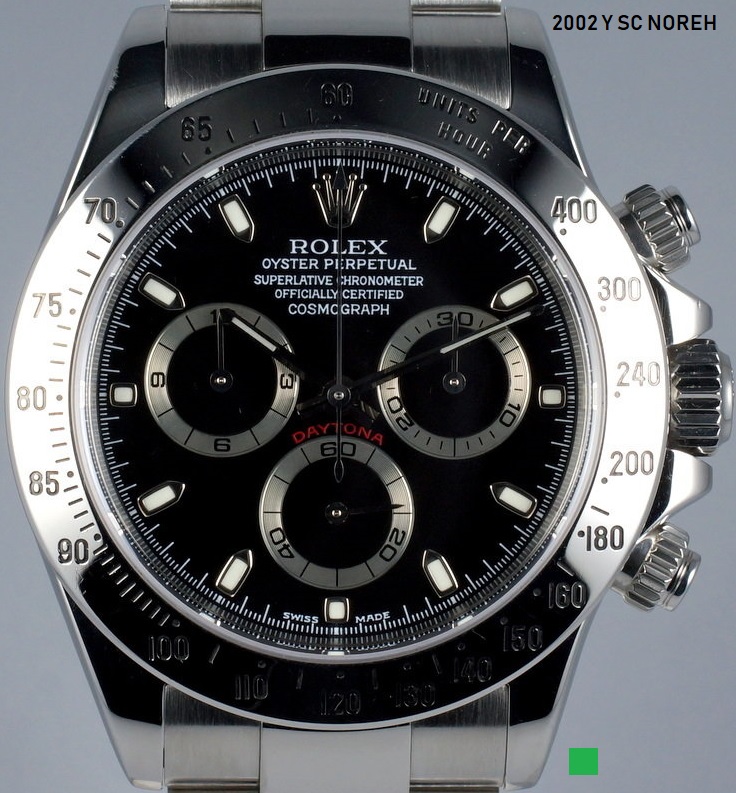

1. Flat 4 serif dials, most likely 2002 :
- The middle line of the E in ROLEX looks short and pretty much centered.
- the 4 in the 40 of the 6 o'clock seconds subdial is flat / upper part of the 4 is flat and wide
- 'O' in 'oyster' looks to be somewhere between 0(zero) and O
- 'swiss made' is serif
- The minute ticks under SWISS MADE almost touch the font. The 31 min tick hits the S bottom left while the 29th min tick sits in the center of the letter M
- 27 and 33 minute markers are long

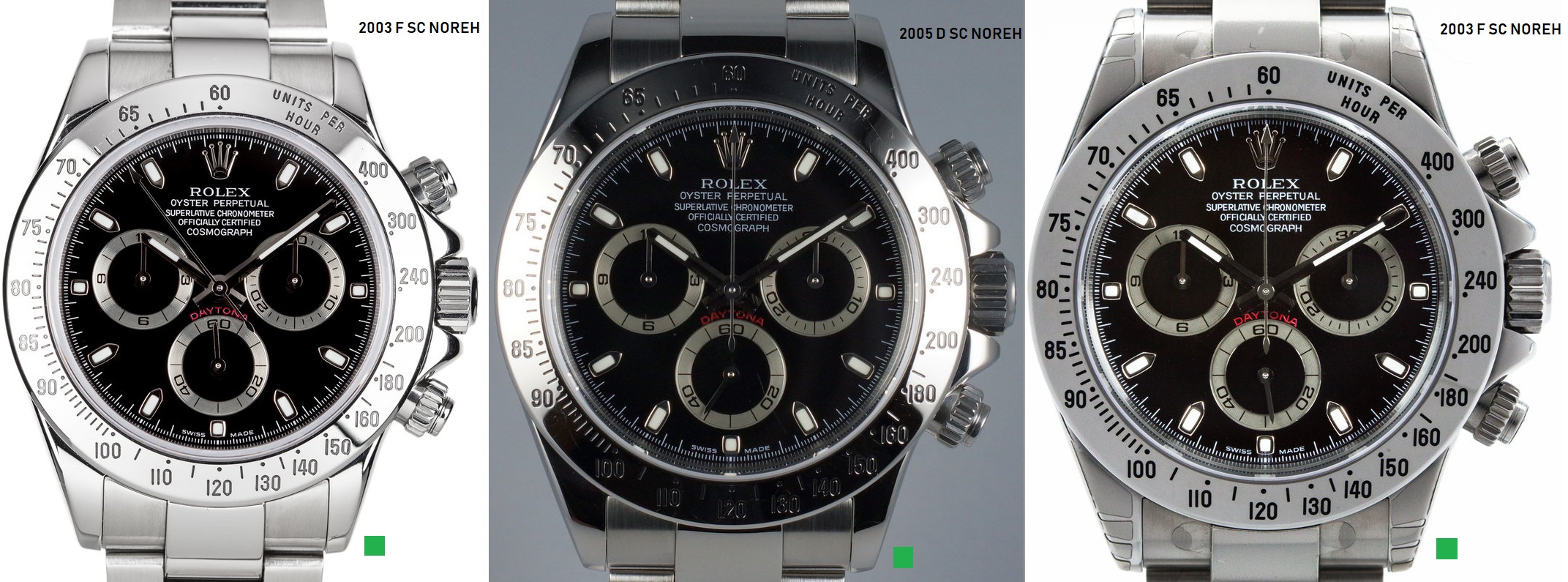

2. Flat 4 dials, ~2003-2005 :
This 2nd category is part of a larger one which i'll call " the tall O" category. If you look carefully you'll see that the ‘O’ lettrs of the word chronometer are taller than the rest and look more like zeros.
- the 4 in the 40 of the seconds subdial is still flat / upper part of the 4 is flat and wide
- 'O' in 'oyster' looks to be somewhere between 0 (zero) and O
- 'swiss made' is not serif any more
- The minute ticks under SWISS MADE are a bit shorter than before. The 31 min tick sits a bit more to the right of the last S while the 29th min tick sits in the center of the letter M like before
- 27 and 33 minute markers are long
3. I'll call this one the` Higher E` or `Upper E` , 2003-2005 :
This one is also part of the ‘tall O’ category. ROLEX font looks similar to the previous group but there is one key difference:
- 4 in the 40 of the sec subdial is not as flat as before / top part is narrower than on the flat 4 dials
Remaining aspects of this group:
- The middle line of the E in ROLEX sits just above the midpoint of the letter like on the previous group but the previous gruop had a flat 4 ! keep this in mind.
- 27 and 33 minute markers are long
- The minute ticks under SWISS MADE look the same as on the flat 4 dials. The 31 min tick sits a bit more to the right of the last S while the 29th min tick sits in the center of the letter M.
4. Lower E 2007-2009 :
This one is also part of the ‘tall O’ category but here is what makes this unique :
- The middle line of the E is just below the letter's midpoint
- 27 and 33 minute markers are short now
-31 min tick sits almost where the last S of the swiss ends. The 29th min tick sists almost under the M starts.

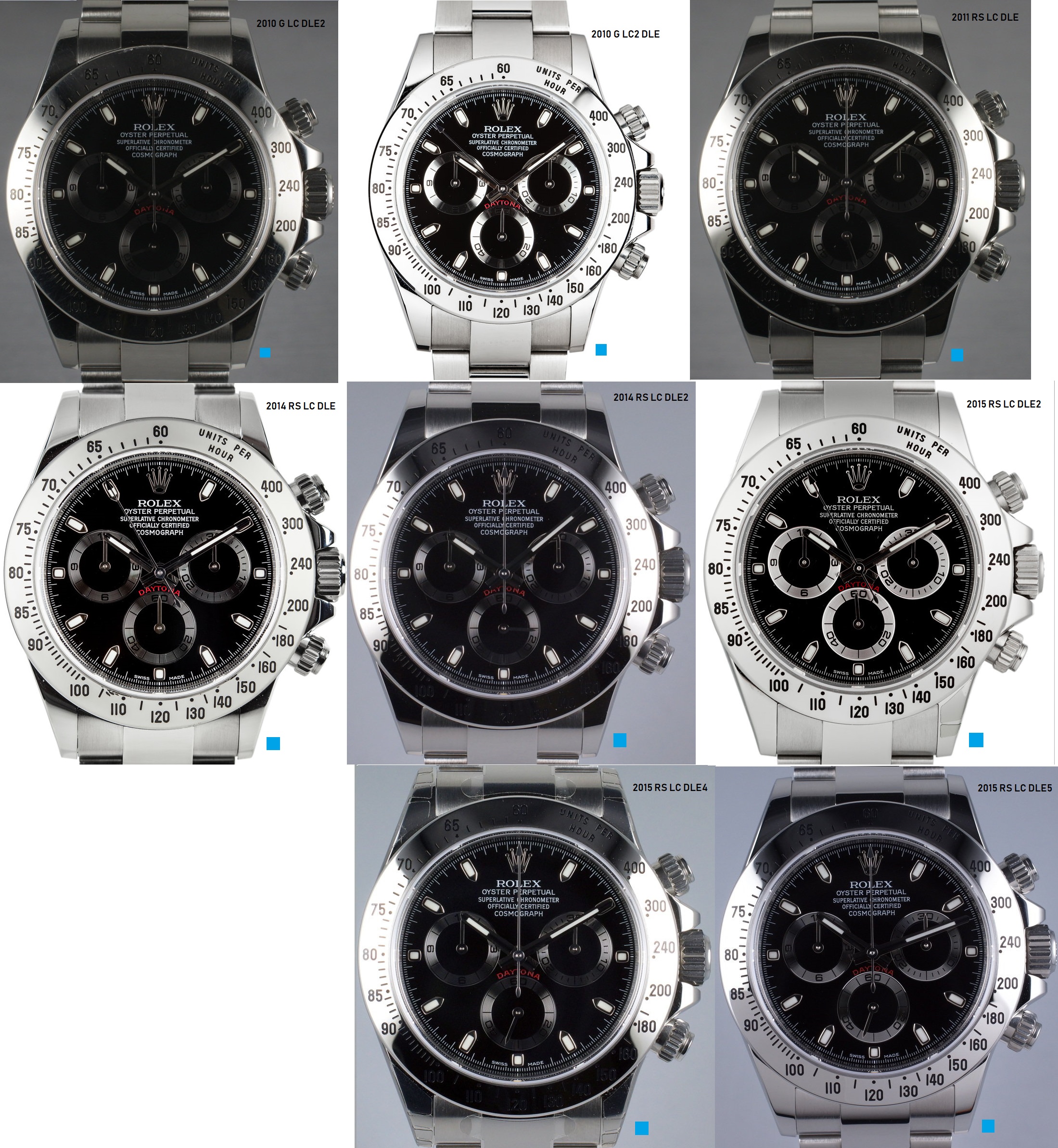

6. FAT 'O' dials ~2010-2015:
This is a new category of prints found only on the black dials. I'll call this the 'FAT O' dials because of the fat O of the oyster word
- 'O' is "OYSTER' looks fat / rounded
- Middle line of the E sists above the midpoint of the letter but this aspect is not as helpfull as before in differentiating dials.
- 27 and 33 min markers are long
- Rolex coronet has a bigger hole / more rouned as well
- another key feature is that all the dial print in white is serif!
- 31 min tick sits almost below the center of the last S in Swiss. 29th min tick sits almost where the M begins. This feature is again not that important.

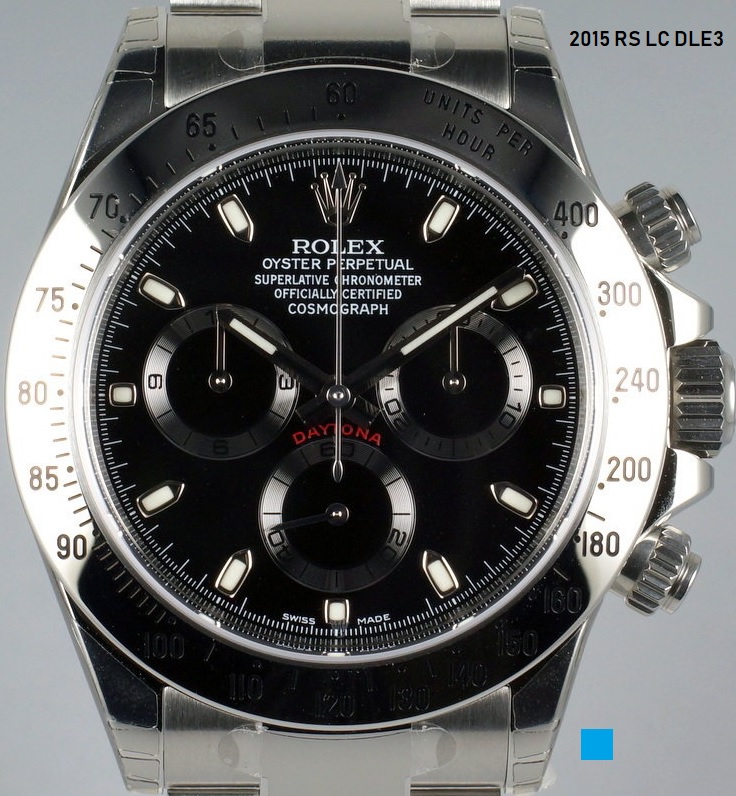

7. FAT 'O' short ticks ~2015 :
This is almost the same as the 'FAT O' dial but with some differences :
- same as the regular fat 'O' dials but the 27 and 33 min markers are short this time
- text doesn't look serif this time
- same coronet as before
- 31 min tick sits almost below the center onf the last S in Swiss. 29th min tick sits almost where the M begins. Same asa before.

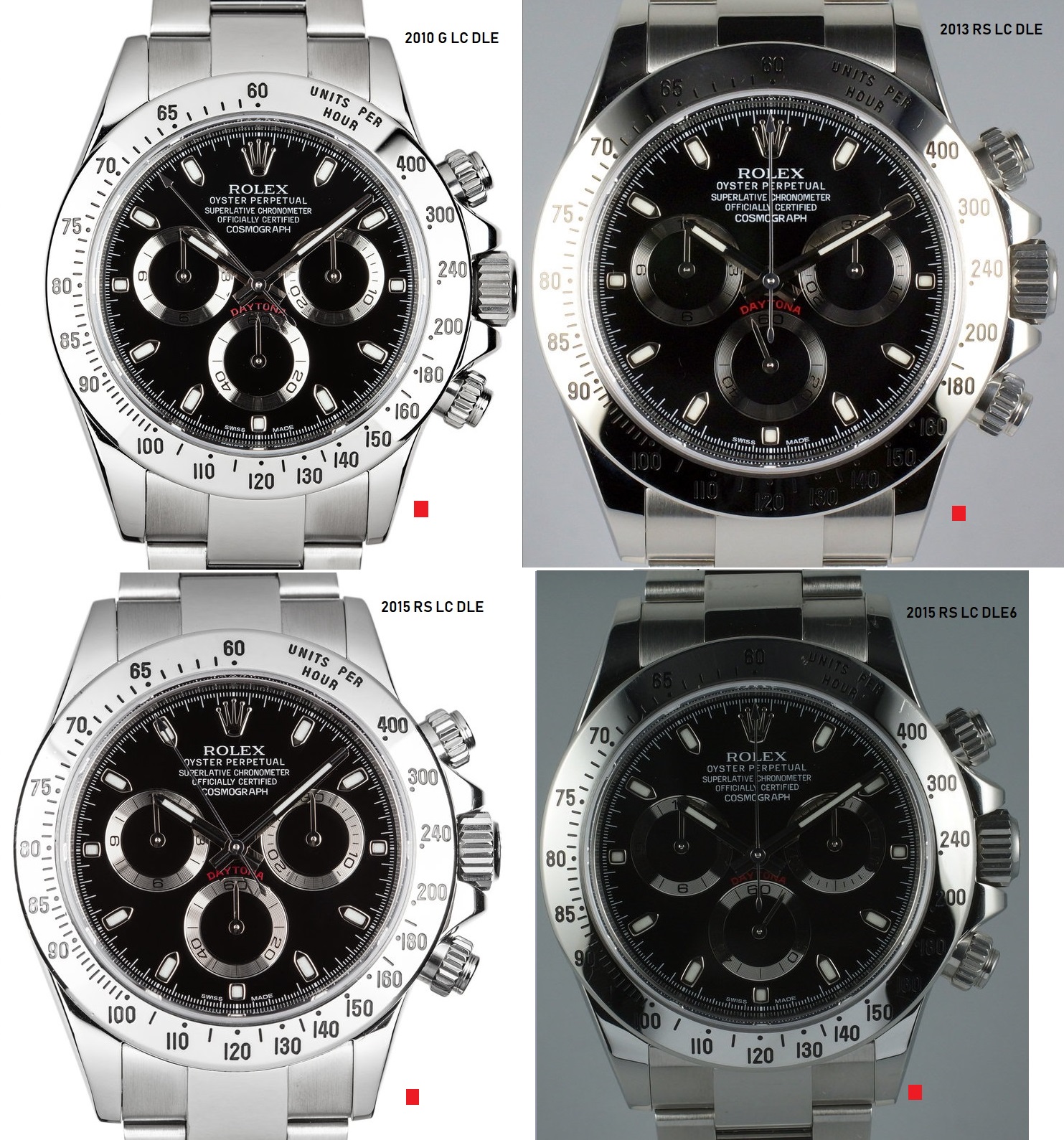

8.APH dials ~2010-2015 :
This is a whole new category. The main characteristic is that the APH letters of the COSMOGRAPH sit a bit separated from the rest of the letters. Here are a few details:
- APH letters of the 'cosmograph' word are a bit separated from the rest of the word
- 'O' in 'Oyster' looks more like a zero this time
- More tracking on the OYSTER PERPETUAL / spaces between letters are bigger
- 27 and 33 minute markers are short
- I won’t bother to list the remaining characteristics as these are not as relevant imo.
Notice: There was another category in my previous attempt to classify the black dials, called the funny E. However, after a closer inspection, I’ve realised that the watch in discussion was most probably serviced with some pre-owned parts. The case itself was indeed a 2007 M but the dial was a flat4serif, hands were slim, like on the 2002 models and the insert was actually from an older generation 16520 daytona . So in conclusion, the funny E does no longer exist.
Here is the watch I was referring to :
Ok ,so with the black dials pretty much covered, let’s move on and study the white dials :

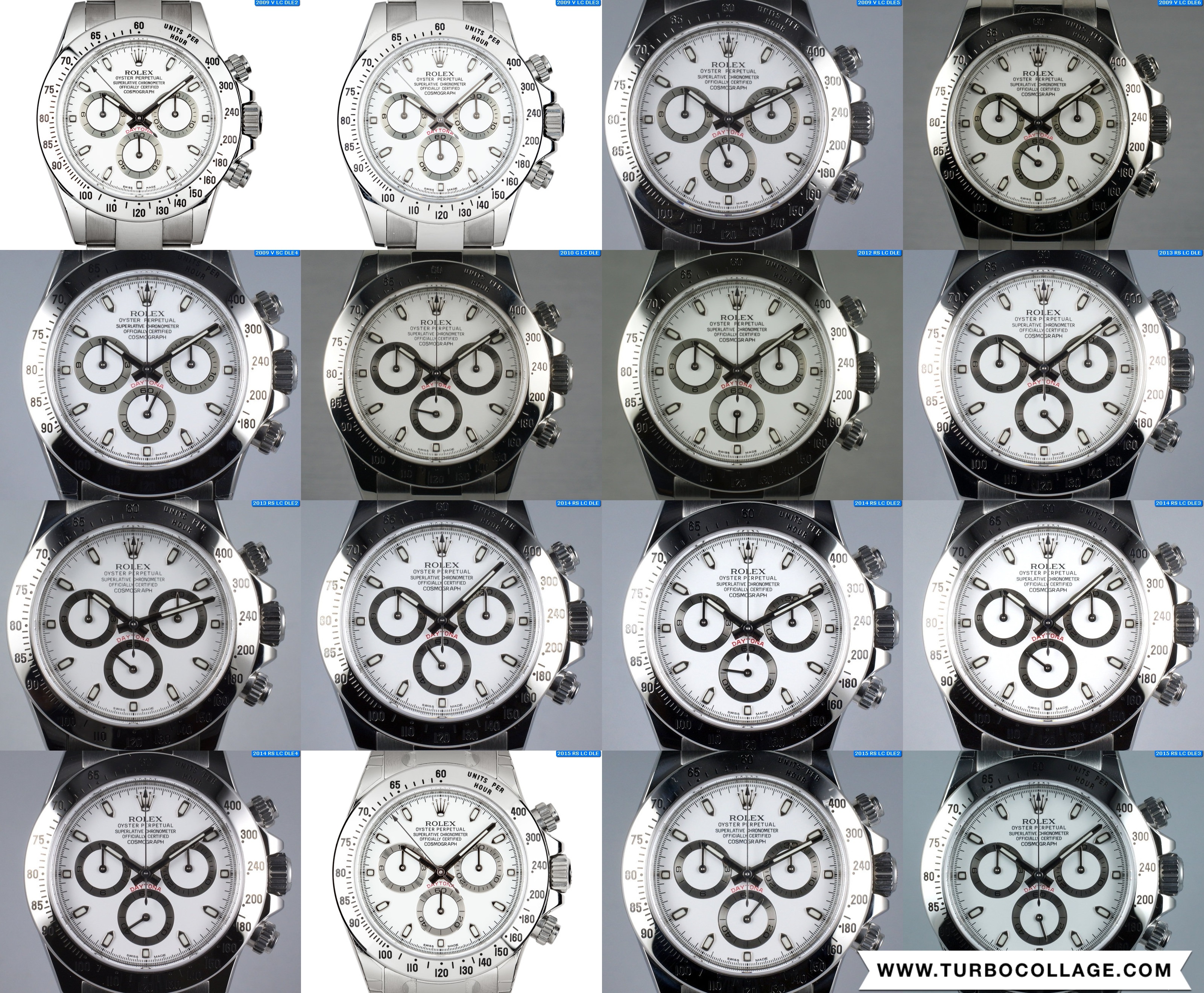

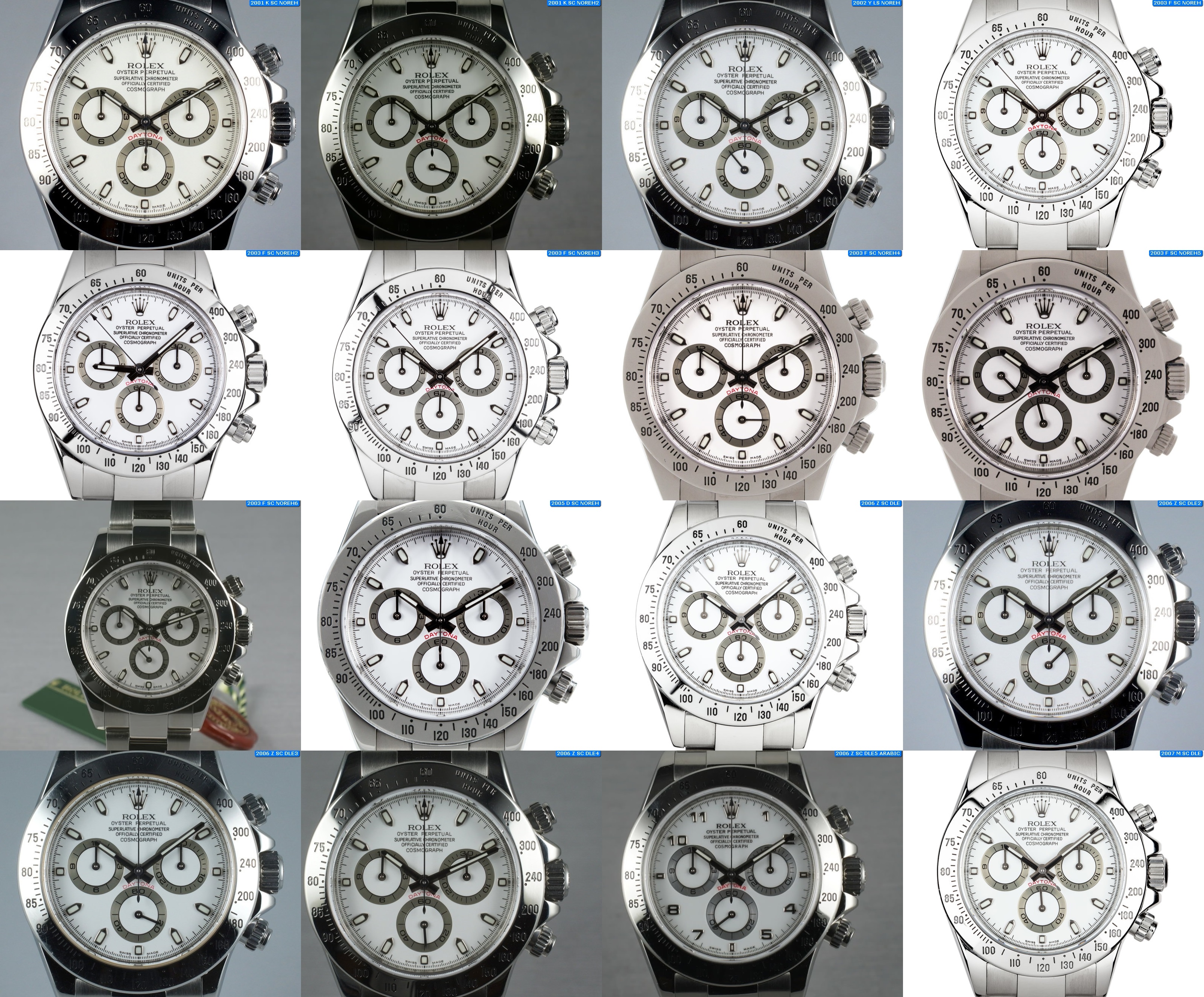

Here are the dials again. Same pic as above but split in 2. Easier to handle on mobile devices :
Tag meaning is the same as for the black dials:
RS - Random serial
SC - short clasp / old style clasp
LC - long clasp / current style
DLE - double line engraving
NOREH - no rehaut engraving
1.Flat 4 serif dials ~2001-2005 (edit) :
EDIT2 : initially i've thought this dial was produced till 2003, but i've found a 2005 D model with the same dial.
I have also found 2 other 2006 daytonas with the same dial but these watches might as well be 2005 .
Although I’m not 100% sure ,It seems that the 1st 116520 daytona to come out was the white dial version.
This dial is pretty much similar to the black counterpart, having a similar print layout:
- The middle line of the E in ROLEX looks short and centered.
- the 4 in the 40 of the 6 o'clock seconds subdial is flat / upper part of the 4 is flat and wide
- 'O' in 'oyster' looks to be somewhere between 0 and O
- 'swiss made' is serif
- The minute ticks under SWISS MADE almost touch the font. The 31 min tick hits the S bottom left while the 29th min tick sits in the center of the letter M
- 27 and 33 minute markers are long

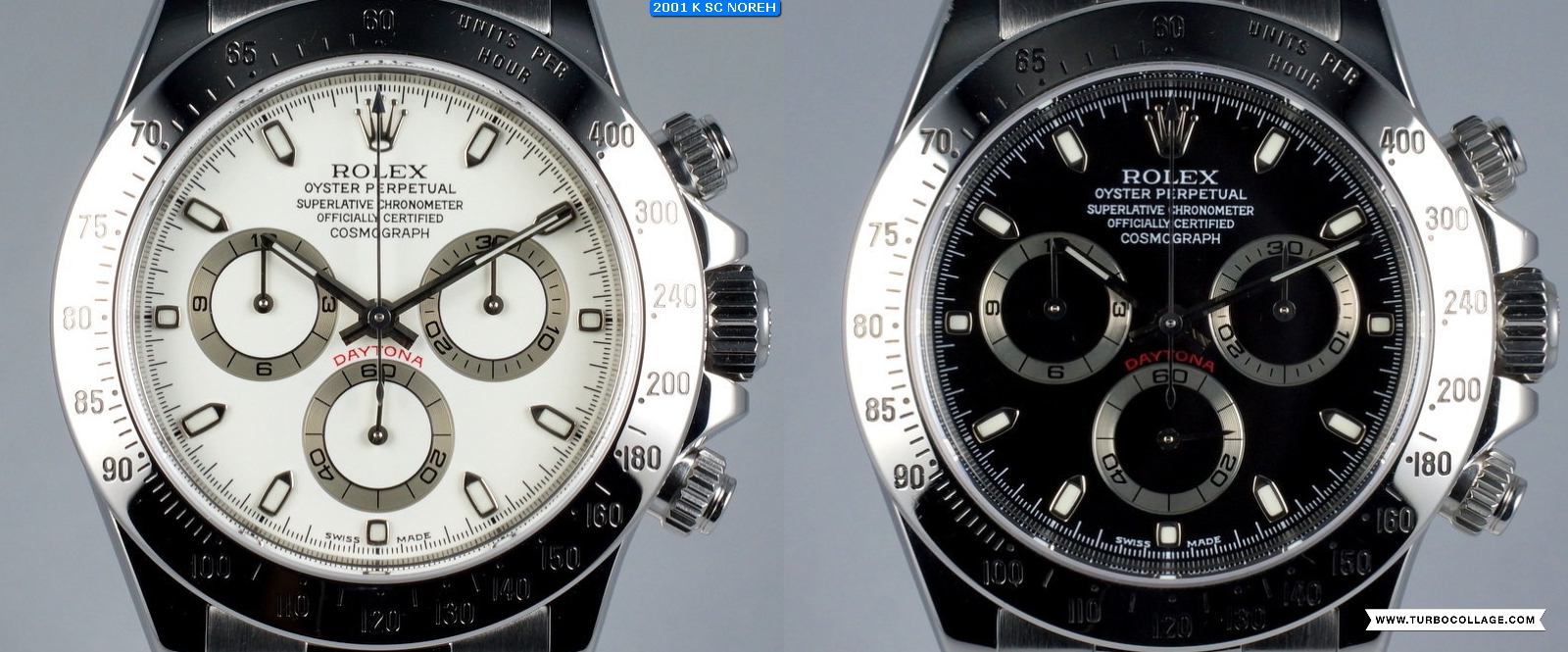

And here is a comparison picture between the white and the black flat 4 dial :

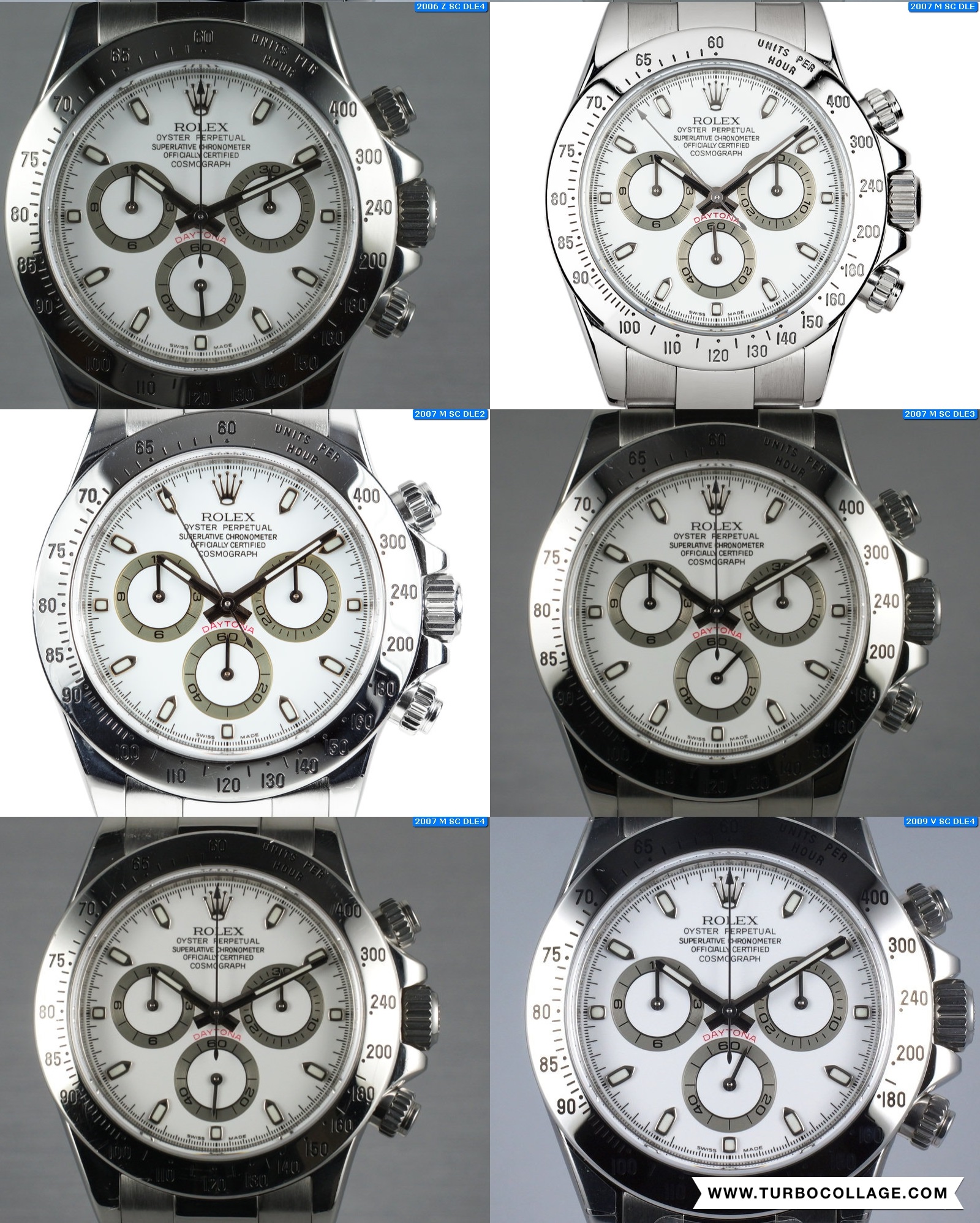

2.Lower E dials ~2002-2009 ( edit : most often seen on 2007,2008 and 2009 daytonas ):
These dials fall into the ‘Tall O’ category same as the flat4, higher E and lower E black dials.
I’ll keep the name ‘ Lower E’ just because this dial is the same as the black ‘lower E’ one but this name is not as relevant as before because there are no variations of the Tall O category for the white dials like there was with the black dials before.
So a more suitable name for this dial should have been “Tall O’ .
As I said before, if you take a closer look you’ll see that the Chronograph word has the lettrs “O” taller than the rest and looking more like a zero .
Key features are similar to the black one :
- The middle line of the E is just below the letter's midpoint
- 27 and 33 minute markers are short.
-31 min tick sits almost where the last S of the swiss ends. The 29th min tick sists almost under the M starts.

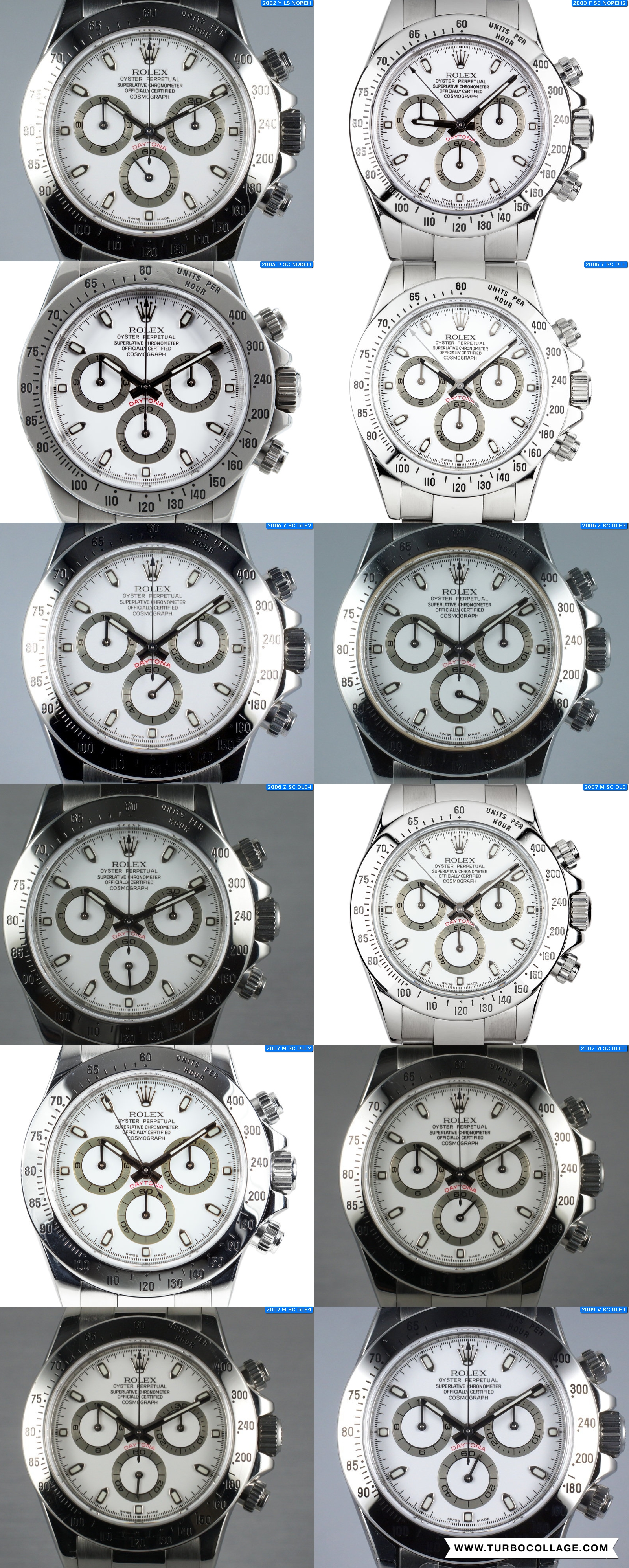

Here is the above pic again split in 2 :

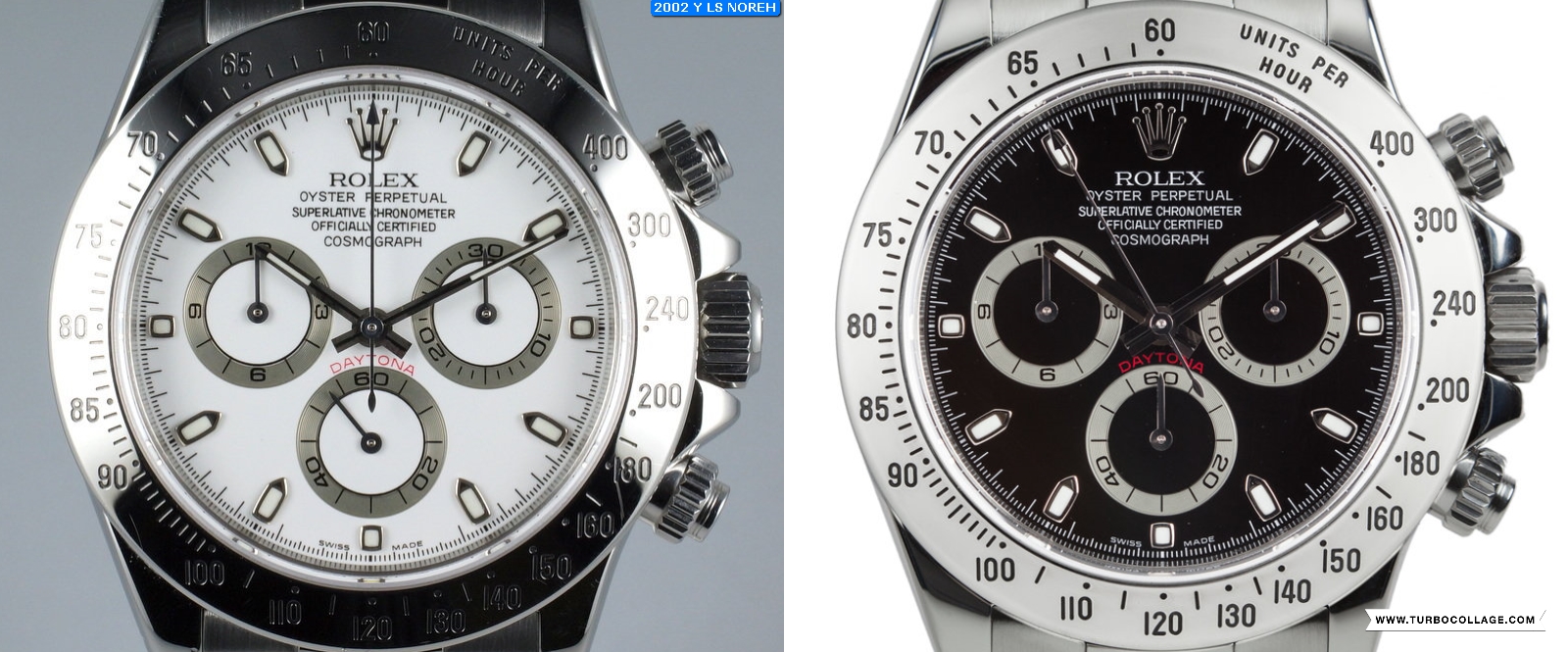

Lower E comparison picture :

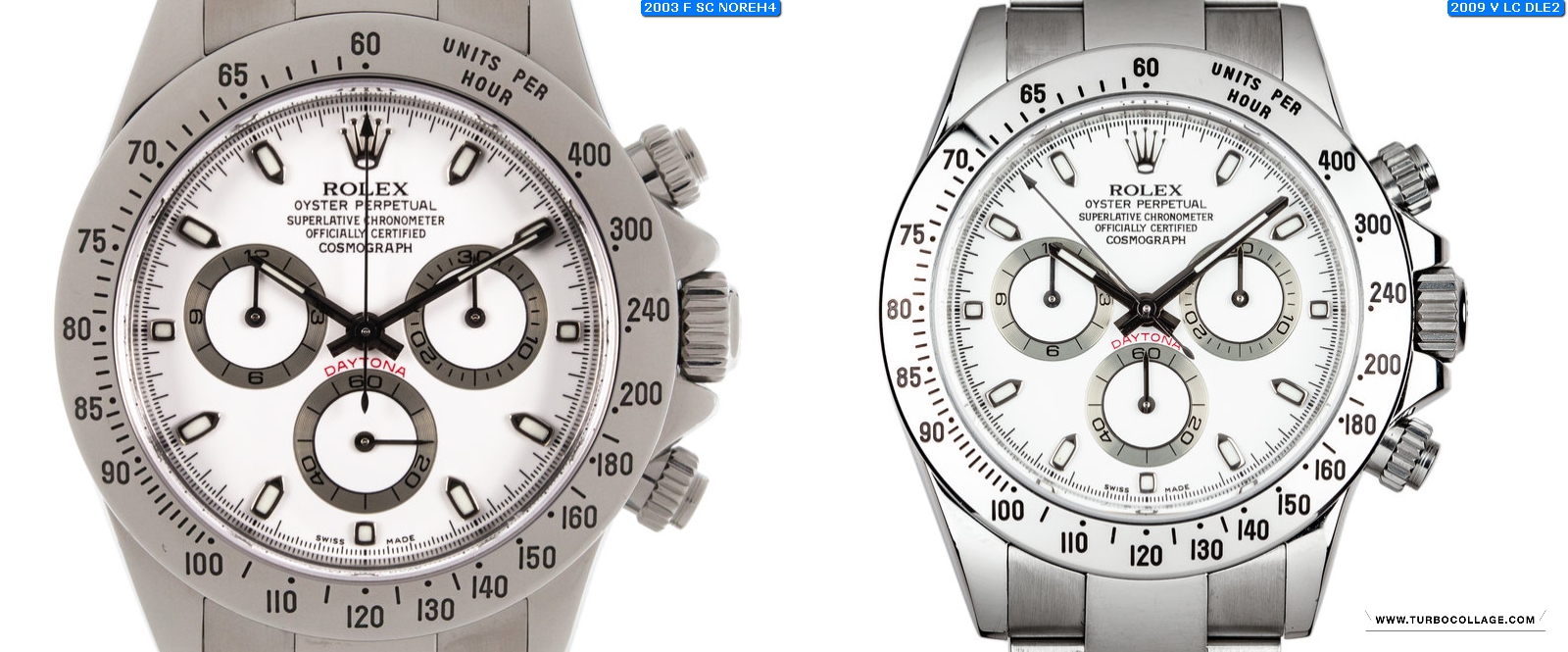

3.Serif Cosmograph dials( EDIT ) 2003-2011 :
EDIT : I initially though this dial was found only on daytonas made up till 2009 but i later found several others from 2010, 2011 using the same dial.
I've also managed to find this dial on some 2012 and 2013 watches, but i can't really be sure these ones were indeed manufactured in those particular years (many chrono sellers offer missleading details about their watches.
One thing's sure, on these 2012-2013 watches the clasp was new style ,serial was random and the SEL was one piece, but so are the vast majority of the 2011 models .
This print is not present on the black dials! Oddly enaugh I’ve found it on both a 2003 and a 2009 (edit : and 2010,2011 and 2012) watch, so this dial makes identifying a watch’s manufacturing year pretty hard.
The main feature distinguishing this dial apart from the rest is the serif ‘COSMOGRAPH’ . The fat O black dial featured a serifi COSMOGRAPH as well but, so was the rest of the text. This white dial on the other hand has a very pronuanced serif look ( the cosmograph word ) while the rest of the text looks more normal if you will .
Some other characteristics of this dial :
- ROLEX seems to be a bit bolder than on the other white dials
- 27 and 33 min ticks are short
- 31 min tick sits below the end of the S in SWISS while the 29th min tick sits below just before the M in MADE starts.
- I won’t bother pointing other aspects as the ones above are pretty much sufficient to define this category

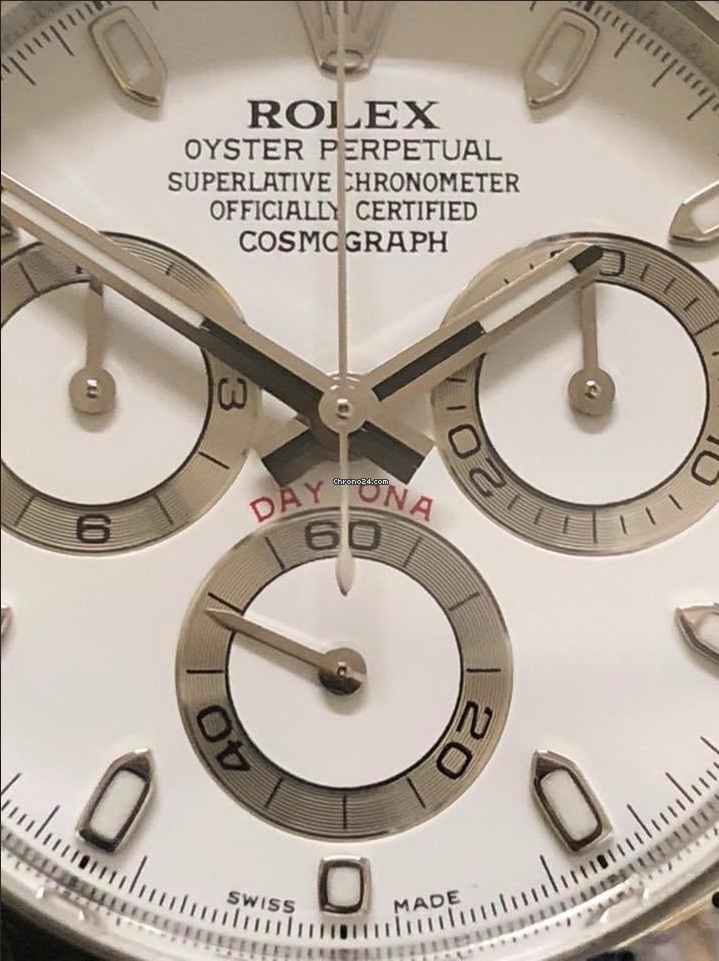

Serif cosmo dial close-up :

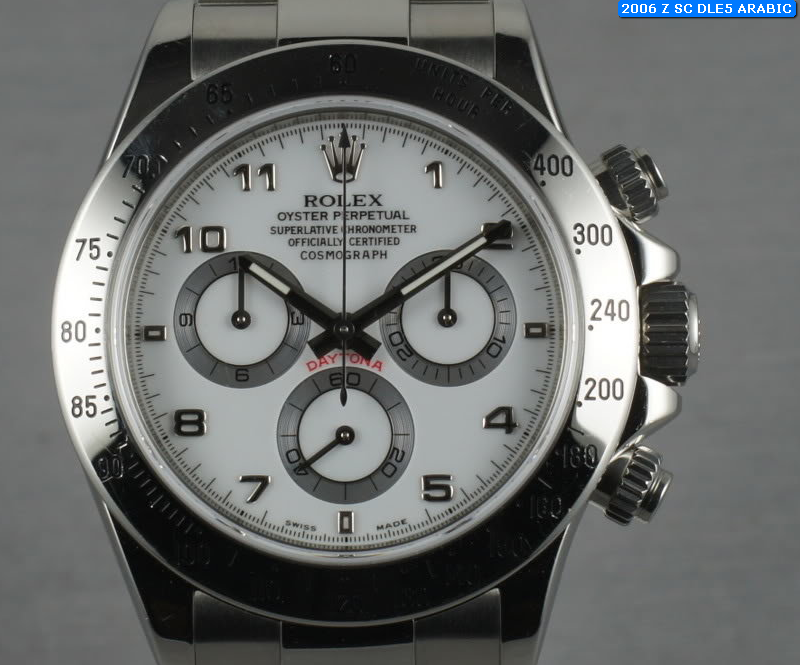

4.Arabic dial ~2006 :
As far as I know there wasn’t any stainless steel black daytona out there to feature an arabic dial, so this is a category on it’s own. Please keep in mind that there are some other arabic dials out there but found on the WG and platinum versions.
Although it’s obvious how one is able to differentiate this dial apart from all the other white dials I’ll point out some details of the print and layout:
- At a first glance the print looks similar to the “Fat O” print found on the black dial .
- SWISS and MADE however sits further apart from the 6 o’clock marker and the text looks wider as well.
- COSMOGRAPH is serif
Here is a pic comparing this to the Fat O black dial :

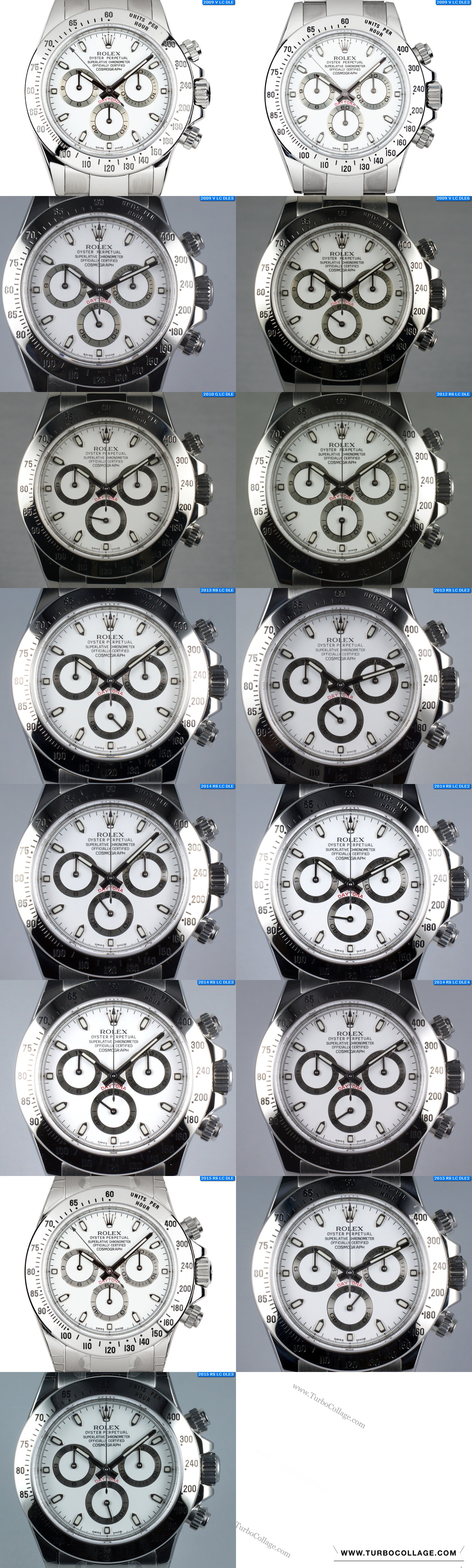

5.APH dials ~2009ish-2016 :
EDIT : ***
looking on chrono24 again, i've found the APH dial present on the daytona as early as 2006-2008 . But as i said , all info reagarding watches found on chrono should be taken with a grain of salt.
In order to narrow the results for this dial type i'll list below all APH dials found on chrono along their correspondig year :
2006 - 1 dial
2007 - 1 dial
2008 - 2 dials
2009 - 4 dials
2010 - 5 dials
2011 - 3 dials
2012 - 3 dials
2013 - 10 dials - only 1 other dial model were found for 2013
2014 - 7 dials - no other dial models were found for 2014
2015 - 15 dials - no other dial models were found for 2015
2016 - 3 dials
As you can see, this dial was mostly used on watches made between 2013-2016 but sadly this info is not enaugh to establish an exact watch manufacturing year .
***
The white APH dial is pretty much the same as the black APH dial, so same characteristics apply:
- APH letters of the 'cosmograph' word are a bit separated from the rest of the word
- 'O' in 'Oyster' looks like a zero this time
- More tracking on the OYSTER PERPETUAL / space between letters is bigger
- 27 and 33 minute markers are short
- I won’t bother to list the remaining characteristics as these are not relevant imo.

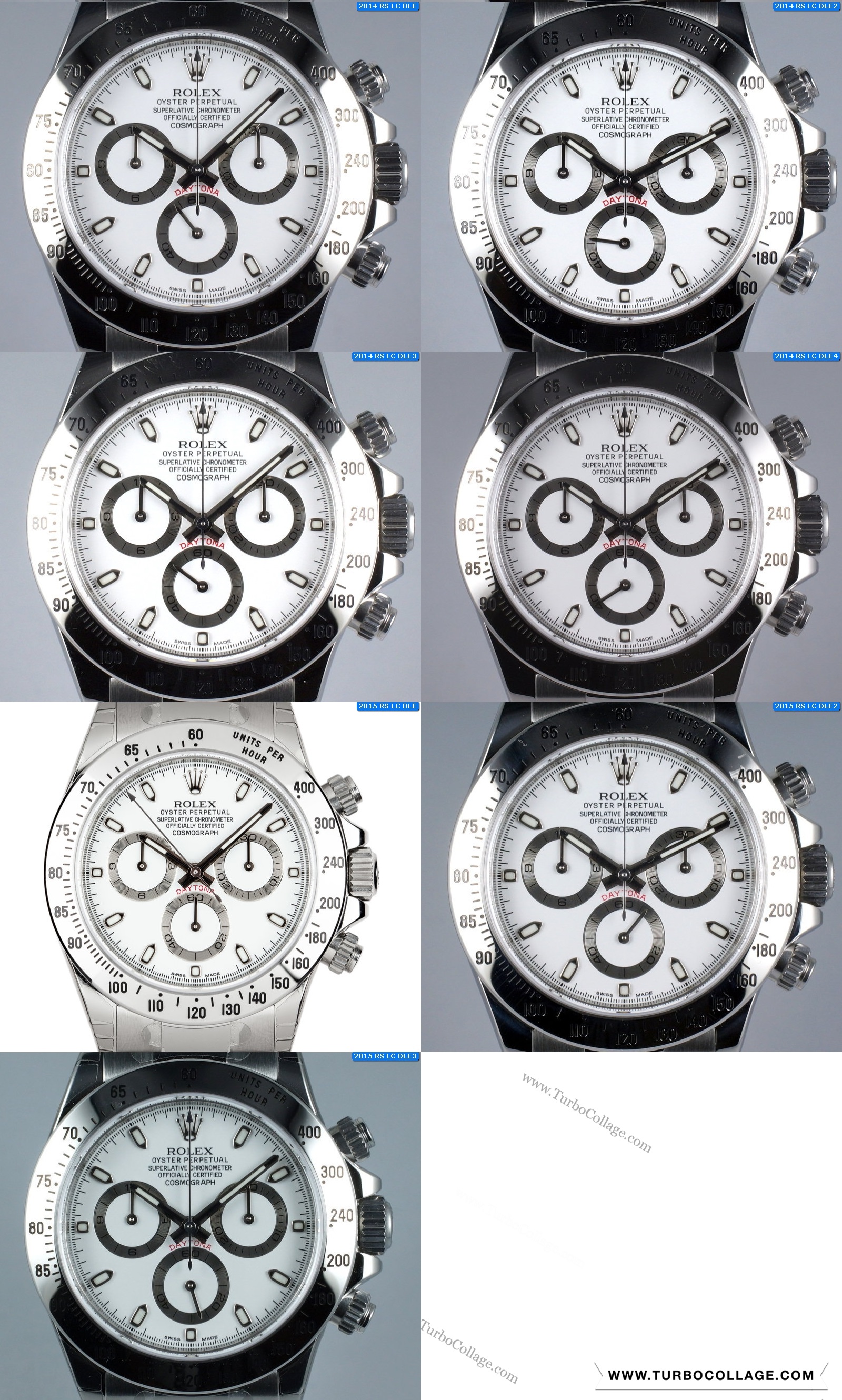

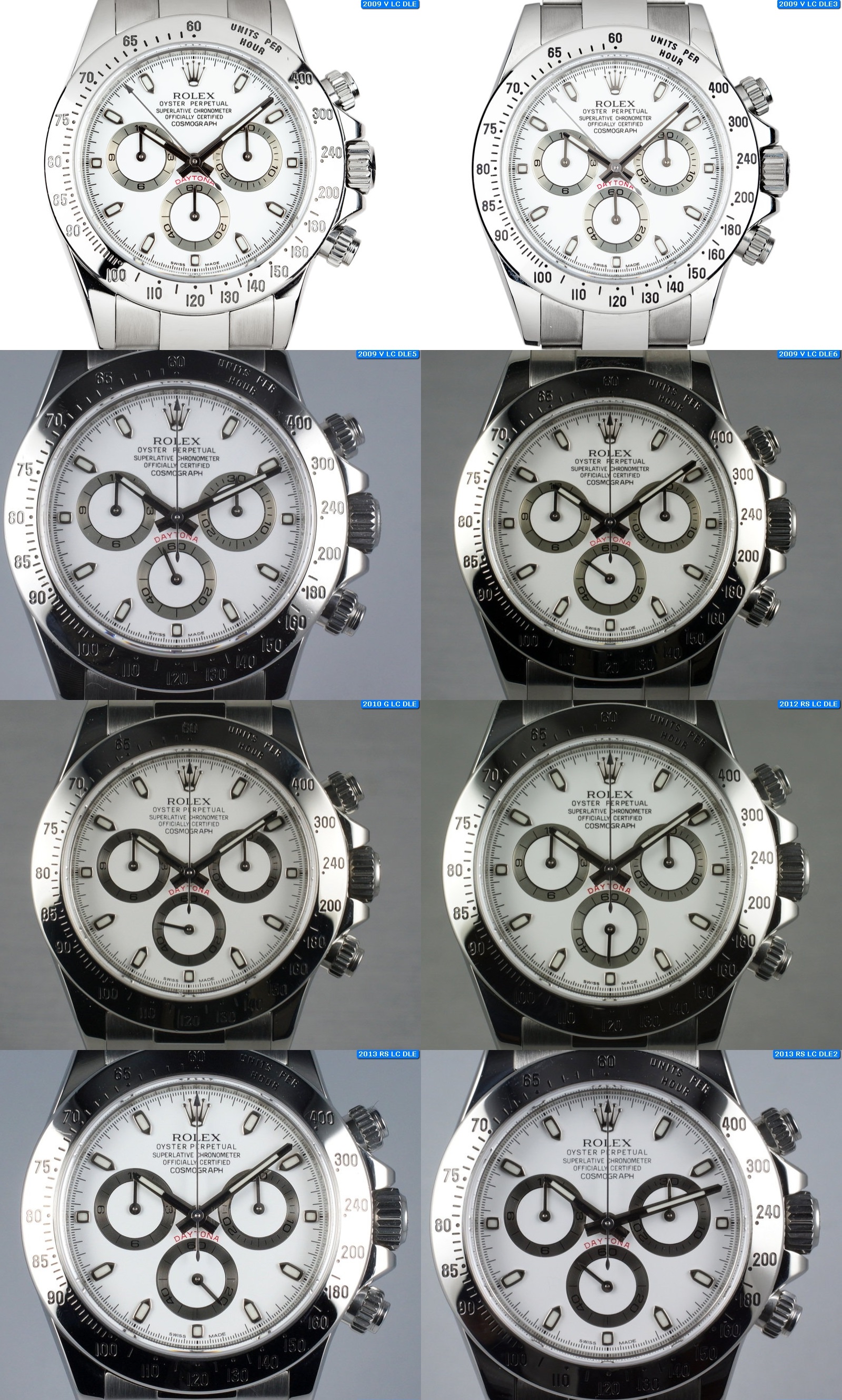

Pic above split in 2 again :

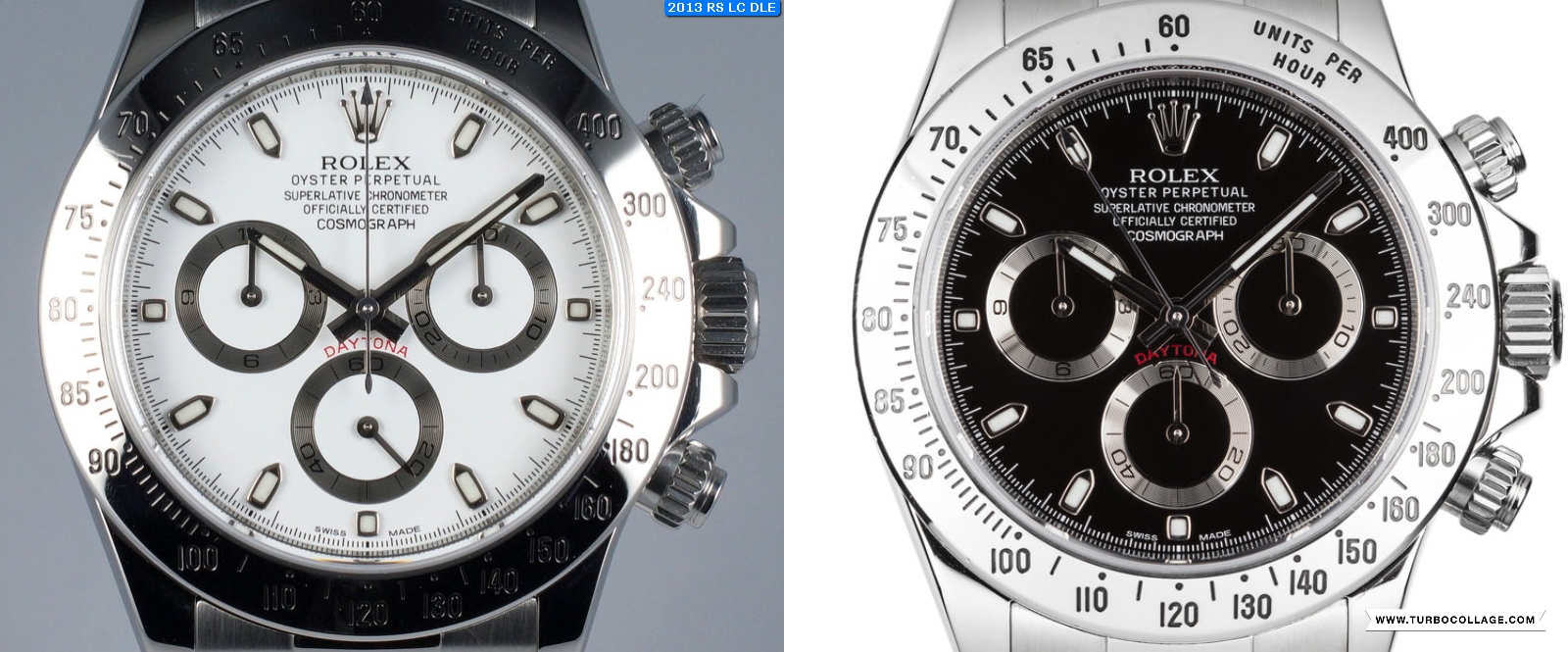

Comparison pic between the vlack and white APH dial :

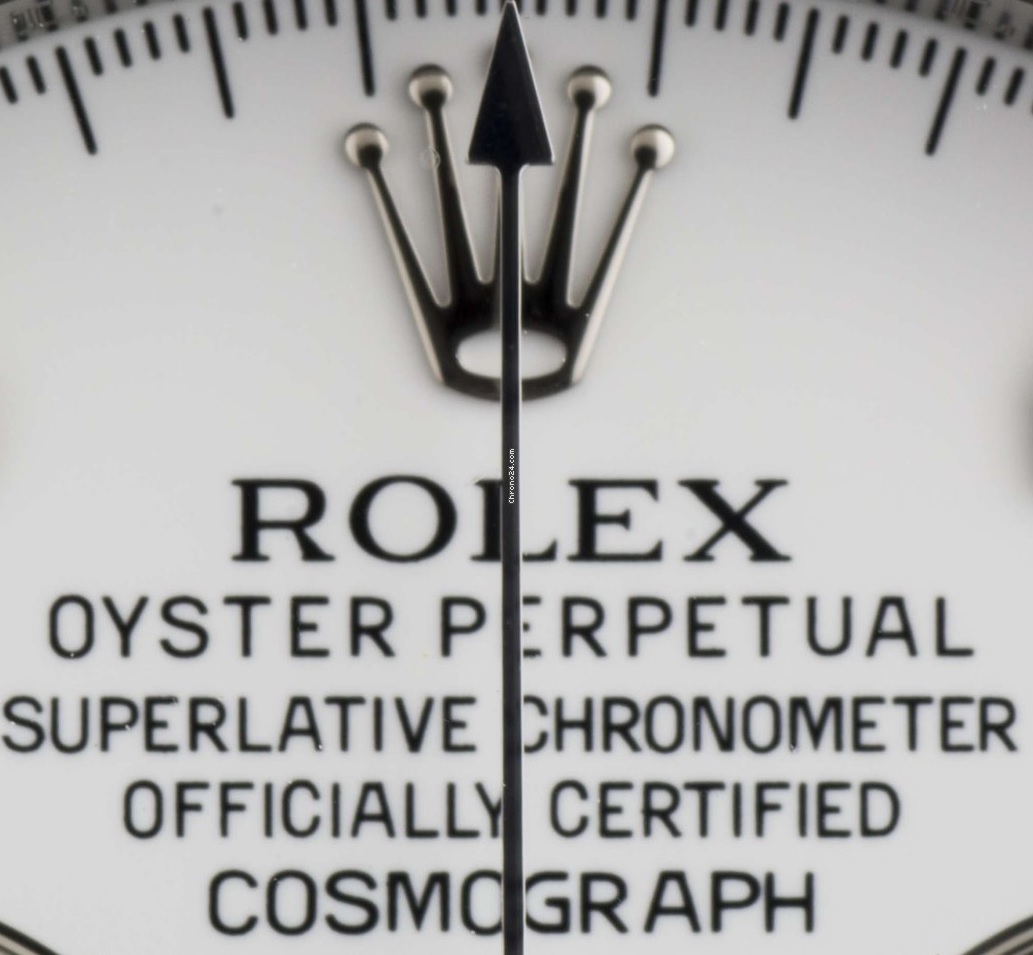

Close-up of the APH layout :
This pretty much sums it up . I hope you guys enjoyed this and I really hope this will make identifing a watch’s manufacturing year a bit more easier.
As you can see the white daytonas are a bit harder to date, mainly because there are less dial variations out there.
And because all the white dial types can be found spread across a large time period .
So here are some more diffrences between key aspects of the watch i've managed to find across time periods.
Hopefully these new features will help you narrow your results :
1. 2002-2004
- short clasp / old style
- no rehaut engraving
- slim hands
- green lume
- flat 4 dial - most likely
- EL (end link) is made out of 3 pieces clamped together
3 pieces END LINK :

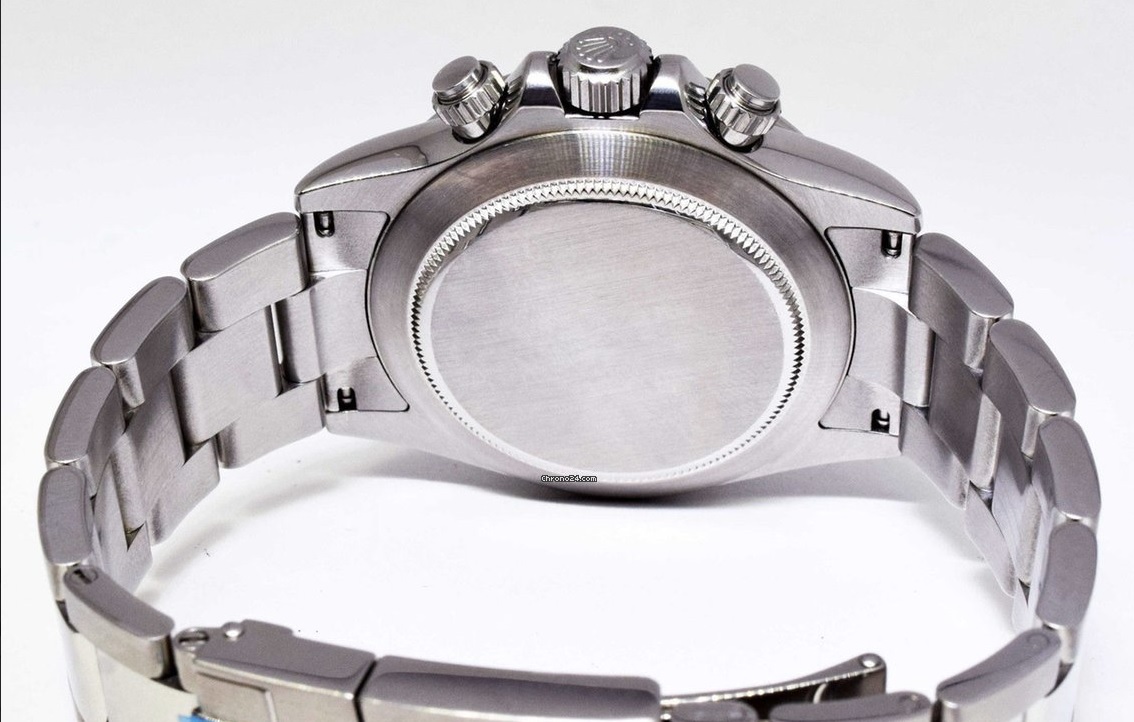

Here is another picture that better shows the 3 pieces END LINK :

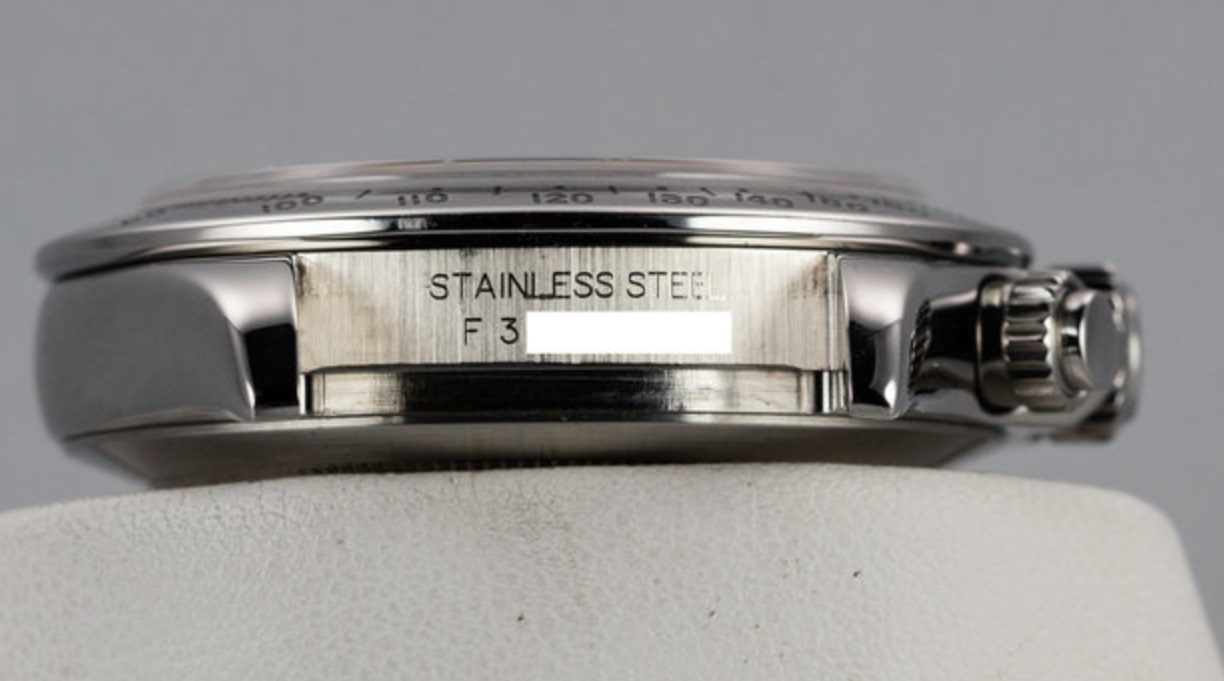

Please note that the cases which are not engraved on the rehaut, the serial will be engraved between the lugs as so :
2. 2005
- no rehaut engraving
- fat hands
- 2005 correct dial
- short clasp
- EL (end link) is made out of 3 pieces clamped together
- green lume
3. 2006-2008
- rehaut is engraved - not random! Serial may also be found between the lugs on the early 2006 models.
- fat hands
- short clasp ( some 2008 may have the new styled clasp though and if so it's folding part has a sanded look )
- EL (end link) is made out of 3 pieces clamped together
- green lume
4. 2009-2010
- rehaut is engraved - not random!
- fat hands
- new style clasp - sanded ( some 2009 may still have the old syle clasp )
- EndLink is made out of 3 pieces clamped together
- green lume
5. 2011-2013 ( lume transitional period )
- you cand find both 2011 and 2012 with green lume . Even some early daytons sold in 2013 were green but most likely these were made back in 2012.
- rehaut is engraved - random serial
- new style clasp - sanded
- EndLink can be made out of 3 pieces clamped together on some 2011 models / SEL (solid end link ) will be milled out of 1 single piece for the later modes.
Single piece Solid end link :
6. 2014-2015
- rehaut engraved - random serial
- fat hands
- new style clasp - sanded
- SEL is milled out of 1 single piece.
- blue lume
7.2015 - transitional year
- reahut can be either engraved or laser etched
- hands are fat
- New style clasp - sanded or polished for the later 2015 models !
- SEL is one piece
- Lume is blue

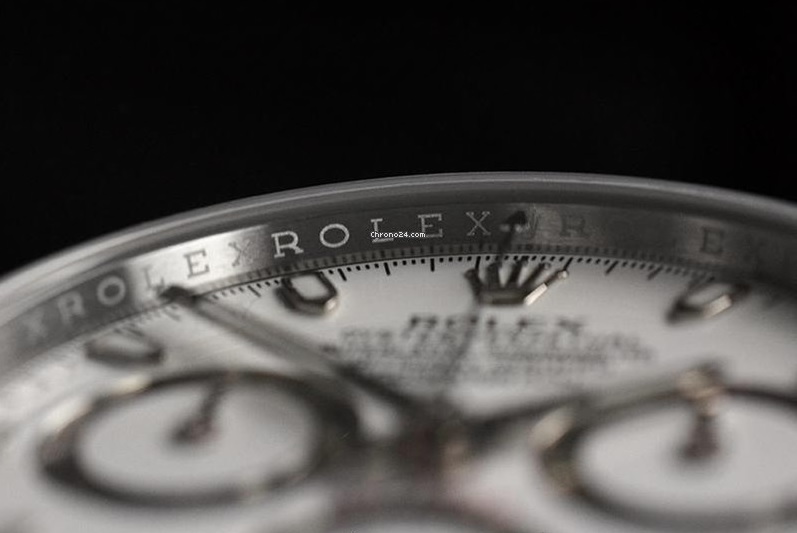

Here is a 2015 laser etched rehaut :
8. 2016
- reahut is laser etched
- fat hands
- new style clasp - polished ( the folding part is polished, not sanded like before)
- blue lume
While doing this research I’ve also noticed some differences between bezels but I don’t have enaugh info yet to properly classify them by period. I’ll also add this study here as soon as I’m done with it.
Another interesting thing I’ve found ( which I’m not entirely sure of yet ) while studying the new ceramic daytonas (116500) is that some watches on sale may actually be SS 116520 that have the bezel and dial swapped with aftermarket parts. I’ll share more info on this as soon as I’ll be 100% sure.
Please fell free to chime in and leave a comment if you like this or if you have anything to add !
Cheers!
Just as the title says, this thread is about the Rolex Daytona 116520 dials and their variations over the years. This thread comes as a follow-up to my previous one which covered only the black dials.
As I said before, I've spent some time in trying to figure out what are the diffrences between the dials of the stainless steel bezel 116520 rolex daytona and while doing so, i've managed to also find some other key diffrences between time periods regarding other aspects of the watch .
I'll also include these findings at the end of the dial study below.
Although i think i've managed to include most of the dials out there, this is just a personal study, made by analysing pictures found on the internet and may not be complete or tell the whole story. So please feel free to share your opinion and/or add any missing dials or details left behind.
This study was done not only to observe differences between dials but to also group the daytona into time categories, making period identification of a watch much easier.
I don't know how things are where you live, but here a lot of watches are missing papers so I really hope this guide will come in handy when trying to determine a rolex daytona manufacturing year .
Ok, let’s begin!
I'll first start with the black dials :
NOTE: All the pics are hi-res so please zoom in to see the full details.
Tag meaning :
RS - Random serial
SC - short clasp / old style clasp:
LC - long clasp / current style:
DLE - double line engraving:
NOREH - no rehaut engraving:
Laser etched rehaut :
1. Flat 4 serif dials, most likely 2002 :
- The middle line of the E in ROLEX looks short and pretty much centered.
- the 4 in the 40 of the 6 o'clock seconds subdial is flat / upper part of the 4 is flat and wide
- 'O' in 'oyster' looks to be somewhere between 0(zero) and O
- 'swiss made' is serif
- The minute ticks under SWISS MADE almost touch the font. The 31 min tick hits the S bottom left while the 29th min tick sits in the center of the letter M
- 27 and 33 minute markers are long
2. Flat 4 dials, ~2003-2005 :
This 2nd category is part of a larger one which i'll call " the tall O" category. If you look carefully you'll see that the ‘O’ lettrs of the word chronometer are taller than the rest and look more like zeros.
- the 4 in the 40 of the seconds subdial is still flat / upper part of the 4 is flat and wide
- 'O' in 'oyster' looks to be somewhere between 0 (zero) and O
- 'swiss made' is not serif any more
- The minute ticks under SWISS MADE are a bit shorter than before. The 31 min tick sits a bit more to the right of the last S while the 29th min tick sits in the center of the letter M like before
- 27 and 33 minute markers are long
3. I'll call this one the` Higher E` or `Upper E` , 2003-2005 :
This one is also part of the ‘tall O’ category. ROLEX font looks similar to the previous group but there is one key difference:
- 4 in the 40 of the sec subdial is not as flat as before / top part is narrower than on the flat 4 dials
Remaining aspects of this group:
- The middle line of the E in ROLEX sits just above the midpoint of the letter like on the previous group but the previous gruop had a flat 4 ! keep this in mind.
- 27 and 33 minute markers are long
- The minute ticks under SWISS MADE look the same as on the flat 4 dials. The 31 min tick sits a bit more to the right of the last S while the 29th min tick sits in the center of the letter M.
4. Lower E 2007-2009 :
This one is also part of the ‘tall O’ category but here is what makes this unique :
- The middle line of the E is just below the letter's midpoint
- 27 and 33 minute markers are short now
-31 min tick sits almost where the last S of the swiss ends. The 29th min tick sists almost under the M starts.
6. FAT 'O' dials ~2010-2015:
This is a new category of prints found only on the black dials. I'll call this the 'FAT O' dials because of the fat O of the oyster word
- 'O' is "OYSTER' looks fat / rounded
- Middle line of the E sists above the midpoint of the letter but this aspect is not as helpfull as before in differentiating dials.
- 27 and 33 min markers are long
- Rolex coronet has a bigger hole / more rouned as well
- another key feature is that all the dial print in white is serif!
- 31 min tick sits almost below the center of the last S in Swiss. 29th min tick sits almost where the M begins. This feature is again not that important.
7. FAT 'O' short ticks ~2015 :
This is almost the same as the 'FAT O' dial but with some differences :
- same as the regular fat 'O' dials but the 27 and 33 min markers are short this time
- text doesn't look serif this time
- same coronet as before
- 31 min tick sits almost below the center onf the last S in Swiss. 29th min tick sits almost where the M begins. Same asa before.
8.APH dials ~2010-2015 :
This is a whole new category. The main characteristic is that the APH letters of the COSMOGRAPH sit a bit separated from the rest of the letters. Here are a few details:
- APH letters of the 'cosmograph' word are a bit separated from the rest of the word
- 'O' in 'Oyster' looks more like a zero this time
- More tracking on the OYSTER PERPETUAL / spaces between letters are bigger
- 27 and 33 minute markers are short
- I won’t bother to list the remaining characteristics as these are not as relevant imo.
Notice: There was another category in my previous attempt to classify the black dials, called the funny E. However, after a closer inspection, I’ve realised that the watch in discussion was most probably serviced with some pre-owned parts. The case itself was indeed a 2007 M but the dial was a flat4serif, hands were slim, like on the 2002 models and the insert was actually from an older generation 16520 daytona . So in conclusion, the funny E does no longer exist.
Here is the watch I was referring to :
Ok ,so with the black dials pretty much covered, let’s move on and study the white dials :
Here are the dials again. Same pic as above but split in 2. Easier to handle on mobile devices :
Tag meaning is the same as for the black dials:
RS - Random serial
SC - short clasp / old style clasp
LC - long clasp / current style
DLE - double line engraving
NOREH - no rehaut engraving
1.Flat 4 serif dials ~2001-2005 (edit) :
EDIT2 : initially i've thought this dial was produced till 2003, but i've found a 2005 D model with the same dial.
I have also found 2 other 2006 daytonas with the same dial but these watches might as well be 2005 .
Although I’m not 100% sure ,It seems that the 1st 116520 daytona to come out was the white dial version.
This dial is pretty much similar to the black counterpart, having a similar print layout:
- The middle line of the E in ROLEX looks short and centered.
- the 4 in the 40 of the 6 o'clock seconds subdial is flat / upper part of the 4 is flat and wide
- 'O' in 'oyster' looks to be somewhere between 0 and O
- 'swiss made' is serif
- The minute ticks under SWISS MADE almost touch the font. The 31 min tick hits the S bottom left while the 29th min tick sits in the center of the letter M
- 27 and 33 minute markers are long
And here is a comparison picture between the white and the black flat 4 dial :
2.Lower E dials ~2002-2009 ( edit : most often seen on 2007,2008 and 2009 daytonas ):
These dials fall into the ‘Tall O’ category same as the flat4, higher E and lower E black dials.
I’ll keep the name ‘ Lower E’ just because this dial is the same as the black ‘lower E’ one but this name is not as relevant as before because there are no variations of the Tall O category for the white dials like there was with the black dials before.
So a more suitable name for this dial should have been “Tall O’ .
As I said before, if you take a closer look you’ll see that the Chronograph word has the lettrs “O” taller than the rest and looking more like a zero .
Key features are similar to the black one :
- The middle line of the E is just below the letter's midpoint
- 27 and 33 minute markers are short.
-31 min tick sits almost where the last S of the swiss ends. The 29th min tick sists almost under the M starts.
Here is the above pic again split in 2 :
Lower E comparison picture :
3.Serif Cosmograph dials( EDIT ) 2003-2011 :
EDIT : I initially though this dial was found only on daytonas made up till 2009 but i later found several others from 2010, 2011 using the same dial.
I've also managed to find this dial on some 2012 and 2013 watches, but i can't really be sure these ones were indeed manufactured in those particular years (many chrono sellers offer missleading details about their watches.
One thing's sure, on these 2012-2013 watches the clasp was new style ,serial was random and the SEL was one piece, but so are the vast majority of the 2011 models .
This print is not present on the black dials! Oddly enaugh I’ve found it on both a 2003 and a 2009 (edit : and 2010,2011 and 2012) watch, so this dial makes identifying a watch’s manufacturing year pretty hard.
The main feature distinguishing this dial apart from the rest is the serif ‘COSMOGRAPH’ . The fat O black dial featured a serifi COSMOGRAPH as well but, so was the rest of the text. This white dial on the other hand has a very pronuanced serif look ( the cosmograph word ) while the rest of the text looks more normal if you will .
Some other characteristics of this dial :
- ROLEX seems to be a bit bolder than on the other white dials
- 27 and 33 min ticks are short
- 31 min tick sits below the end of the S in SWISS while the 29th min tick sits below just before the M in MADE starts.
- I won’t bother pointing other aspects as the ones above are pretty much sufficient to define this category
Serif cosmo dial close-up :
4.Arabic dial ~2006 :
As far as I know there wasn’t any stainless steel black daytona out there to feature an arabic dial, so this is a category on it’s own. Please keep in mind that there are some other arabic dials out there but found on the WG and platinum versions.
Although it’s obvious how one is able to differentiate this dial apart from all the other white dials I’ll point out some details of the print and layout:
- At a first glance the print looks similar to the “Fat O” print found on the black dial .
- SWISS and MADE however sits further apart from the 6 o’clock marker and the text looks wider as well.
- COSMOGRAPH is serif
Here is a pic comparing this to the Fat O black dial :
5.APH dials ~2009ish-2016 :
EDIT : ***
looking on chrono24 again, i've found the APH dial present on the daytona as early as 2006-2008 . But as i said , all info reagarding watches found on chrono should be taken with a grain of salt.
In order to narrow the results for this dial type i'll list below all APH dials found on chrono along their correspondig year :
2006 - 1 dial
2007 - 1 dial
2008 - 2 dials
2009 - 4 dials
2010 - 5 dials
2011 - 3 dials
2012 - 3 dials
2013 - 10 dials - only 1 other dial model were found for 2013
2014 - 7 dials - no other dial models were found for 2014
2015 - 15 dials - no other dial models were found for 2015
2016 - 3 dials
As you can see, this dial was mostly used on watches made between 2013-2016 but sadly this info is not enaugh to establish an exact watch manufacturing year .
***
The white APH dial is pretty much the same as the black APH dial, so same characteristics apply:
- APH letters of the 'cosmograph' word are a bit separated from the rest of the word
- 'O' in 'Oyster' looks like a zero this time
- More tracking on the OYSTER PERPETUAL / space between letters is bigger
- 27 and 33 minute markers are short
- I won’t bother to list the remaining characteristics as these are not relevant imo.
Pic above split in 2 again :
Comparison pic between the vlack and white APH dial :
Close-up of the APH layout :
This pretty much sums it up . I hope you guys enjoyed this and I really hope this will make identifing a watch’s manufacturing year a bit more easier.
As you can see the white daytonas are a bit harder to date, mainly because there are less dial variations out there.
And because all the white dial types can be found spread across a large time period .
So here are some more diffrences between key aspects of the watch i've managed to find across time periods.
Hopefully these new features will help you narrow your results :
1. 2002-2004
- short clasp / old style
- no rehaut engraving
- slim hands
- green lume
- flat 4 dial - most likely
- EL (end link) is made out of 3 pieces clamped together
3 pieces END LINK :
Here is another picture that better shows the 3 pieces END LINK :
Please note that the cases which are not engraved on the rehaut, the serial will be engraved between the lugs as so :
2. 2005
- no rehaut engraving
- fat hands
- 2005 correct dial
- short clasp
- EL (end link) is made out of 3 pieces clamped together
- green lume
3. 2006-2008
- rehaut is engraved - not random! Serial may also be found between the lugs on the early 2006 models.
- fat hands
- short clasp ( some 2008 may have the new styled clasp though and if so it's folding part has a sanded look )
- EL (end link) is made out of 3 pieces clamped together
- green lume
4. 2009-2010
- rehaut is engraved - not random!
- fat hands
- new style clasp - sanded ( some 2009 may still have the old syle clasp )
- EndLink is made out of 3 pieces clamped together
- green lume
5. 2011-2013 ( lume transitional period )
- you cand find both 2011 and 2012 with green lume . Even some early daytons sold in 2013 were green but most likely these were made back in 2012.
- rehaut is engraved - random serial
- new style clasp - sanded
- EndLink can be made out of 3 pieces clamped together on some 2011 models / SEL (solid end link ) will be milled out of 1 single piece for the later modes.
Single piece Solid end link :
6. 2014-2015
- rehaut engraved - random serial
- fat hands
- new style clasp - sanded
- SEL is milled out of 1 single piece.
- blue lume
7.2015 - transitional year
- reahut can be either engraved or laser etched
- hands are fat
- New style clasp - sanded or polished for the later 2015 models !
- SEL is one piece
- Lume is blue
Here is a 2015 laser etched rehaut :
8. 2016
- reahut is laser etched
- fat hands
- new style clasp - polished ( the folding part is polished, not sanded like before)
- blue lume
While doing this research I’ve also noticed some differences between bezels but I don’t have enaugh info yet to properly classify them by period. I’ll also add this study here as soon as I’m done with it.
Another interesting thing I’ve found ( which I’m not entirely sure of yet ) while studying the new ceramic daytonas (116500) is that some watches on sale may actually be SS 116520 that have the bezel and dial swapped with aftermarket parts. I’ll share more info on this as soon as I’ll be 100% sure.
Please fell free to chime in and leave a comment if you like this or if you have anything to add !
Cheers!
Last edited:
